Unable to import topic as stream in Confluent Cloud when using proto schema with referenced message types

Open
#9,733 1 comment 1 reaction 0 assignees View on GitHub
bug protobuf schema-registry-integration
Dominant language
Java
Stars
315
Forks
1k
Avg merge
1d 7h
Merged PRs (30d)
36

Description

**Describe the bug**
I am unable to import a kafka topic as a stream to ksqlDB using Confluent Cloud, when the topic has a proto schema which uses other messages as types.
Seems related to [#8933](https://github.com/confluentinc/ksql/pull/8933) and [#9369](https://github.com/confluentinc/ksql/pull/9369)

**To Reproduce**
Steps to reproduce the behavior, include:
1. KSQL version: 0.28.2 (used from Confluent Cloud)
2. Proto schema of the topic:
```
syntax = "proto3";

option java_multiple_files = true;
option java_package = "com.mycomp.samples";
option java_outer_classname = "SampleRecordProtoDefinition";

message SampleRecord {
int32 my_field1 = 1;
double my_field2 = 2;
string my_field3 = 3;
ReferencedRecord my_field4 = 4;
}
message ReferencedRecord {
string my_field1 = 1;
int32 my_field2 = 2;
}
```
3. Import topic using `Import topics as streams` button

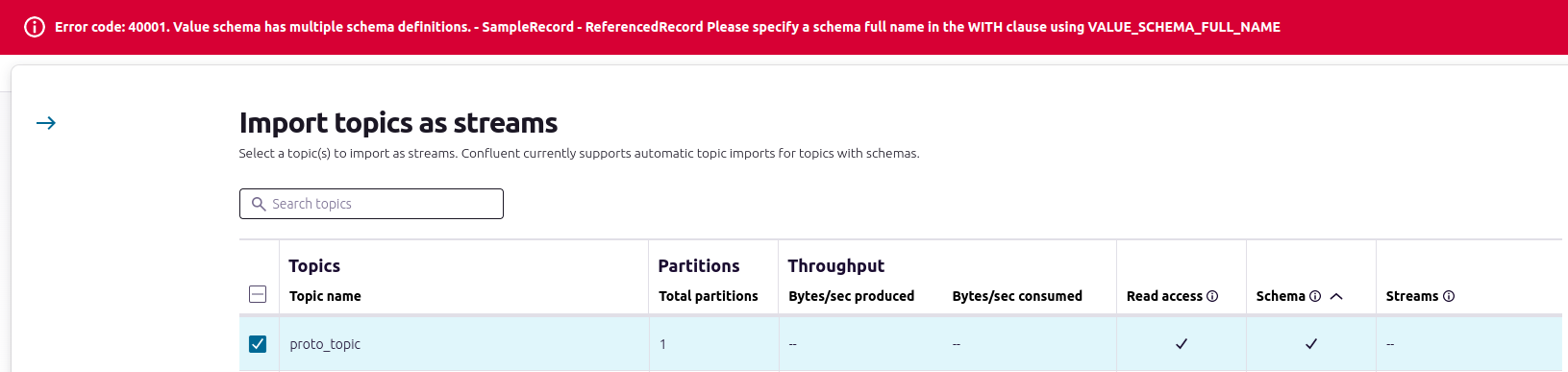

When using the `Import topics as streams` button from ksqlDB I get this error:
```
Error code: 40001. Value schema has multiple schema definitions. - SampleRecord - ReferencedRecord Please specify a schema full name in the WITH clause using VALUE_SCHEMA_FULL_NAME
```
![import_topic_error](https://user-images.githubusercontent.com/52197771/205648572-fa95e799-b9da-4ed2-8449-510f333c3954.png)

4. Import topic using editor and specified `value_schema_full_name` as described in [#8933](https://github.com/confluentinc/ksql/pull/8933)
When importing using the editor with below query:
```
CREATE STREAM PROTO_TOPIC WITH (
kafka_topic = 'proto_topic',
value_format = 'PROTOBUF',
value_schema_full_name = 'com.mycomp.samples.SampleRecord'
);
```

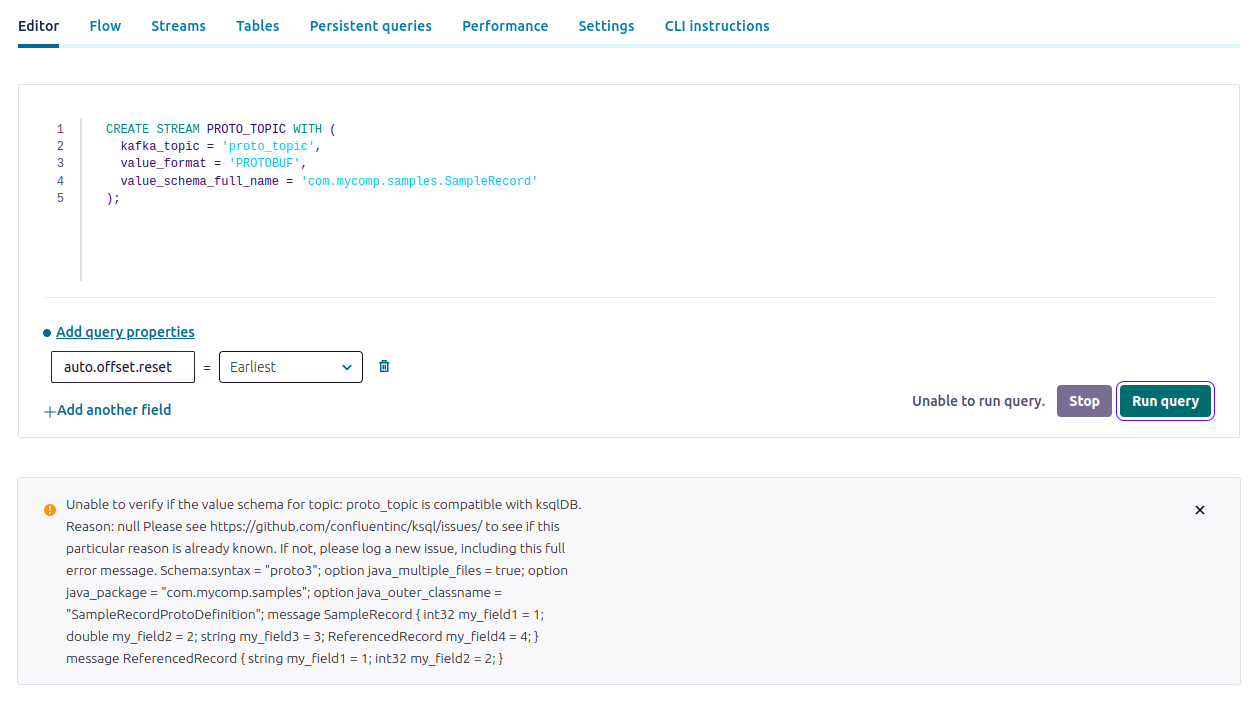

I get this error:

```
Unable to verify if the value schema for topic: proto_topic is compatible with ksqlDB. Reason: null Please see https://github.com/confluentinc/ksql/issues/ to see if this particular reason is already known. If not, please log a new issue, including this full error message. Schema:syntax = "proto3"; option java_multiple_files = true; option java_package = "com.mycomp.samples"; option java_outer_classname = "SampleRecordProtoDefinition"; message SampleRecord { int32 my_field1 = 1; double my_field2 = 2; string my_field3 = 3; ReferencedRecord my_field4 = 4; } message ReferencedRecord { string my_field1 = 1; int32 my_field2 = 2; }
```
![import_topic_error_in_editor](https://user-images.githubusercontent.com/52197771/205649395-8fa83d25-2710-45f7-a6df-d8eb6e429907.png)

**Expected behavior**
I would expect the topic to be imported as a stream and inherit the proto schema.

**Actual behaviour**
I get the error messages specified above.

**Additional context**
When the proto schema uses only scalar types, the topic is imported successfully. The problem seems to be the fact that other message types are referenced.
