Description

CFSSL sign gives error if CSR has SAN

CFSSL sign gives following error while create CSR with SAN using CFSSL.

```
{"code":9003,"message":"asn1: syntax error: data truncated"}
```

But If we create the CSR with OpenSSL with SAN and sign using CFSSL it works.

To reproduce that

*profiles.json*
```
{
"signing": {
"default": {
"expiry": "8760h"
},
"profiles": {
"client-server": {
"usages": [
"signing",
"key encipherment",
"client auth",
"server auth"
],
"expiry": "26280h",
"copy_extensions": true
}
}
}
}
```

*ca-csr.json*
```
{
"CN": "Root CA",
"key": {
"algo": "ecdsa",
"size": 521
},
"names": [
{
"C": "IN",
"O": "EnSquare Pvt. Ltd.,"
}
],
"ca": {
"expiry": "262800h"
}
}
```

*csr.json*
```
{
"CN": "Server",
"key": {
"algo": "ecdsa",
"size": 521
},
"names": [
{
"C": "IN",
"O": "EnSquare Pvt. Ltd.,"
}
],
"usages": [
"signing",
"key encipherment",
"client auth",
"server auth"
],
"extensions": [
{
"Id": [2, 5, 29, 17],
"Value": "ZW1haWw6YWJjQGV4YW1wbGUuY29t"
}
]
}
```

### Create CA

Create root ca

```
mkdir ca
cfssl gencert -initca ca-csr.json | cfssljson -bare ca/root-ca
```

### Create CSR

Create CSR with CFSSL and validate the same using openssl

```
cfssl genkey -config profiles.json csr.json | cfssljson -bare ca/server
openssl req -in ca/server.csr -text
```

### Sign CSR with CA

Sign the created CSR using root ca

```
cfssl sign -ca ca/root-ca.pem -ca-key ca/root-ca-key.pem -config profiles.json -profile client-server ca/server.csr | cfssljson -bare ca/server
```

Now got the following error

![Screenshot from 2020-10-25 12-55-42](https://user-images.githubusercontent.com/834529/97101207-76a5ab00-16c1-11eb-82b1-a1299676e5d4.png)

## Gen CSR with OpenSSL

Generate CSR using OpeenSSL and validate the same

```
openssl ecparam -out ec.pem -name secp521r1
openssl req -new -addext 'subjectAltName = email:abc@example.com' -subj '/C=IN/O=EnSquare Pvt. Ltd.,/CN=Server' -sha512 -newkey ec:ec.pem -out ca/openssl.csr -keyout ca/openssl-key.pem -nodes

openssl req -in ca/openssl.csr -text
```

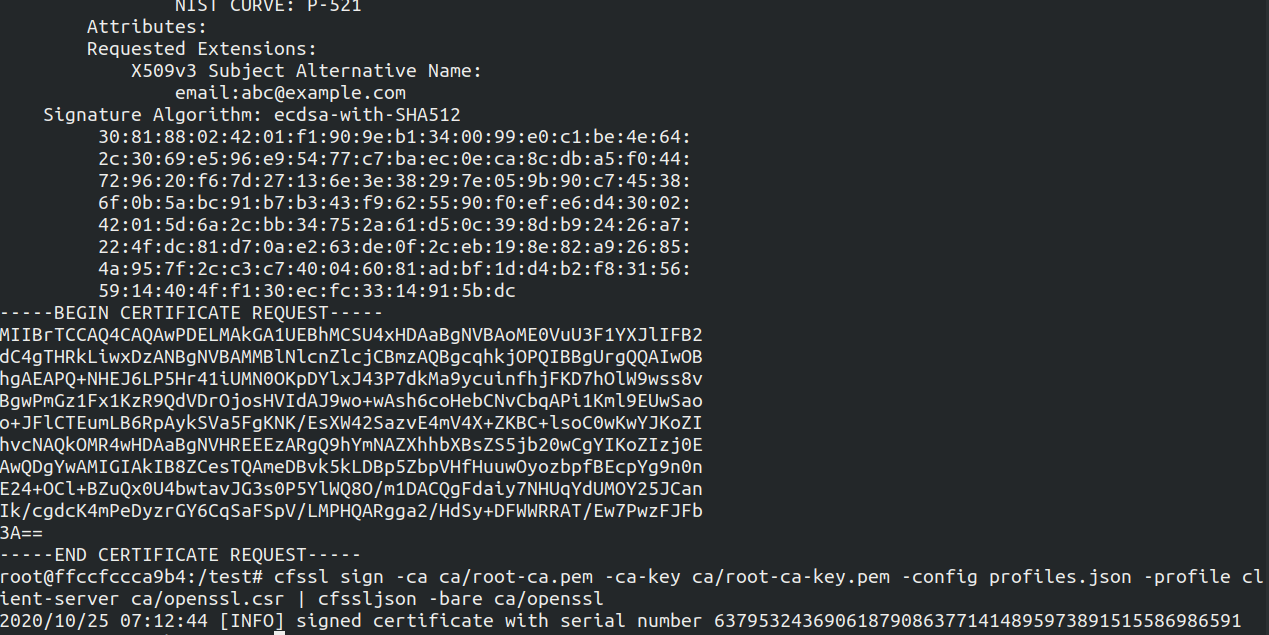

Sign the created CSR using CFSSL

```
cfssl sign -ca ca/root-ca.pem -ca-key ca/root-ca-key.pem -config profiles.json -profile client-server ca/openssl.csr | cfssljson -bare ca/openssl
```

![Screenshot from 2020-10-25 12-43-18](https://user-images.githubusercontent.com/834529/97101156-f67f4580-16c0-11eb-97da-0c9711dabccc.png)

Refer : https://github.com/cloudflare/cfssl/pull/940#issuecomment-624961860
