Difference and cartesian_segments yield wrong result

Open
#669 0 comments 0 reactions 0 assignees View on GitHub
Dominant language
C++
Stars
517
Forks
232
PR merge metrics
No merged PRs in 30d

Description

When computing the difference between two polygons that touch at one point but do not overlap boost::geometry::difference yields the wrong result.
In my original problem the touching point happens to be the starting point of the input polygon.

The polygons are unfortunatly very large and I only posted the code on WandBox
https://wandbox.org/permlink/0vqkFS71m0zJ65X4
Also, the problem seems very elusive, because when I tried to create a minimal example around the (presumed) problematic area, the bg::difference suddenly works. (has to do with the start point?)

The polygons look like this:
Green = inputPolygon
Red = subtractPolygon
![image](https://user-images.githubusercontent.com/31598216/75239988-ec204b00-57c3-11ea-9cab-9aaa129e49f5.png)
![image](https://user-images.githubusercontent.com/31598216/75240110-17a33580-57c4-11ea-9ad5-beb5fe3fda45.png)
![image](https://user-images.githubusercontent.com/31598216/75240143-2984d880-57c4-11ea-80a3-d284a13ffe47.png)
Note that the start point of the inner green ring is the touching point.

The often suggested solution
*#define BOOST_GEOMETRY_NO_ROBUSTNESS*
seems to help in some cases:
https://svn.boost.org/trac10/ticket/13553
https://github.com/boostorg/geometry/issues/548
In my original problem defining BOOST_GEOMETRY_NO_ROBUSTNESS does help.
However, as also reported by others
https://svn.boost.org/trac10/ticket/13566
https://github.com/boostorg/geometry/issues/630
other (many more!) cases now fail.

**cartesian_segments**
In #653 I read about setting a higher precision (?) using "cartesian_segments".
This works much better than defining BOOST_GEOMETRY_NO_ROBUSTNESS.
However, in some cases it also fails.

I would like to better understand what this does
- Does the type "long long" define the integer type/precision used when rescaling?
- Assuming it would always work, which is not the case (cf. case 4 below), would it have any disadvantages?
- I noticed that the size of the DLL/so grew about 20%, which is OK, will the execution be slower?

**Here is what I tried (c.f. points 1-4 in WandBox-Code)**

1. The original problem with "default_strategy()"
This is wrong, the interior ring of the input (first) polygon simply disappears (instead of remaining intact)

2. The original problem with "cartesian_segments"
This works

** Minimal example **
I cut out a piece of the inputPolygon around the subtractPolygon to reduce the input.

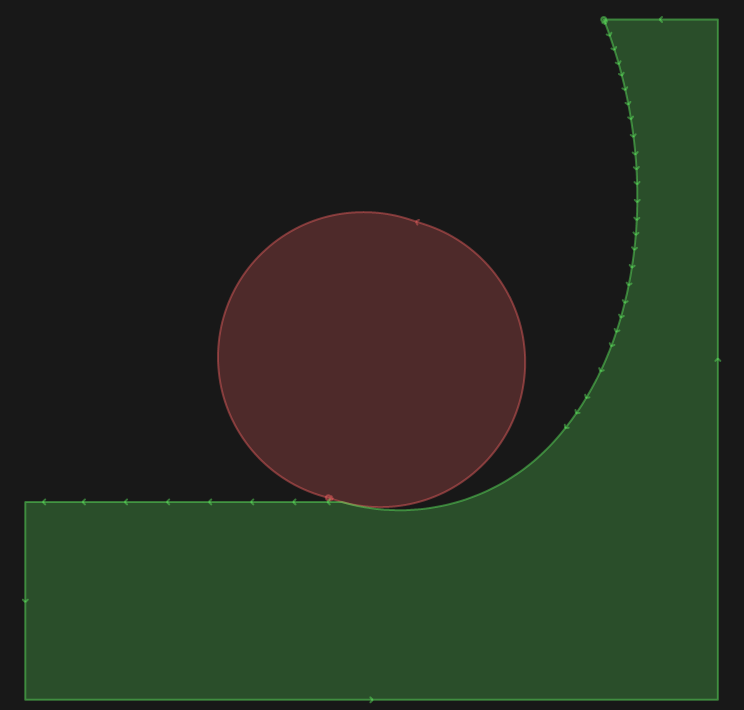

![image](https://user-images.githubusercontent.com/31598216/75240678-09094e00-57c5-11ea-8c28-7beebb2e3482.png)
Note that the green start point now lies in on the top.

Now the roles have changed...

3. The minimal example with "default_strategy()"
This is right

4. The minimal example with "cartesian_segments"
This is now wrong, a non-related corner of the input is chipped away (Blue=result)

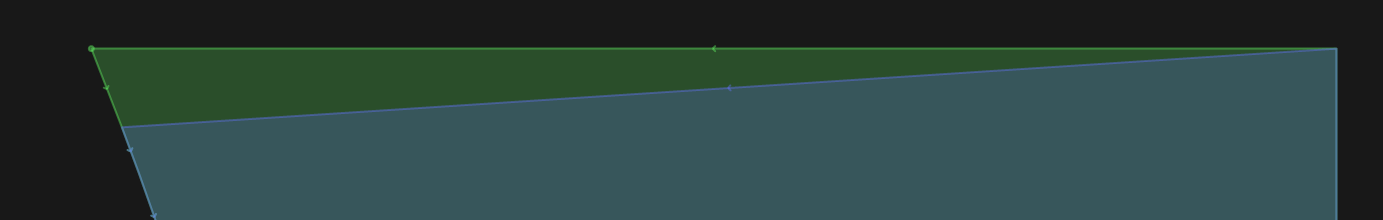

![image](https://user-images.githubusercontent.com/31598216/75240856-55548e00-57c5-11ea-8fe0-60a4adbe56fb.png)
![image](https://user-images.githubusercontent.com/31598216/75240894-63a2aa00-57c5-11ea-8c0e-6df83637cd62.png)

The problem always seems to occur around the start point, could this be the problem?

I have reproduced the problem using
Windows 10, VS2015, Boost 1.66 on my PC
Linux, Gcc 8.1, Boost 1.66-1.72 on WandBox

Many thanks in advance!

**EDIT**
Shifting the start point (std::rotate)
- solves the problem in 1.
- does not solve the problem in 4.
