Camera rotation is applied 1 (?) render frame before translation

Open
#710 0 comments 0 reactions 0 assignees View on GitHub
Dominant language
C++
Stars
679
Forks
290
Avg merge
3d 1h
Merged PRs (30d)
38

Description

I discussed this with @lhog already, but now reproduced with a minimal widget.
If programmatically setting the camera in mode 4, with both translation and rotation, the rotation is applied before the translation occurs. I suspect it's 1 frame ahead.

(Note there's also an issue with shadows not appearing for a frame after translating, in this version of the engine (ZK current), but @lhog already fixed that)

Recording a video at sufficient frame rate with the following widget should show the problem, or watch the attached example.

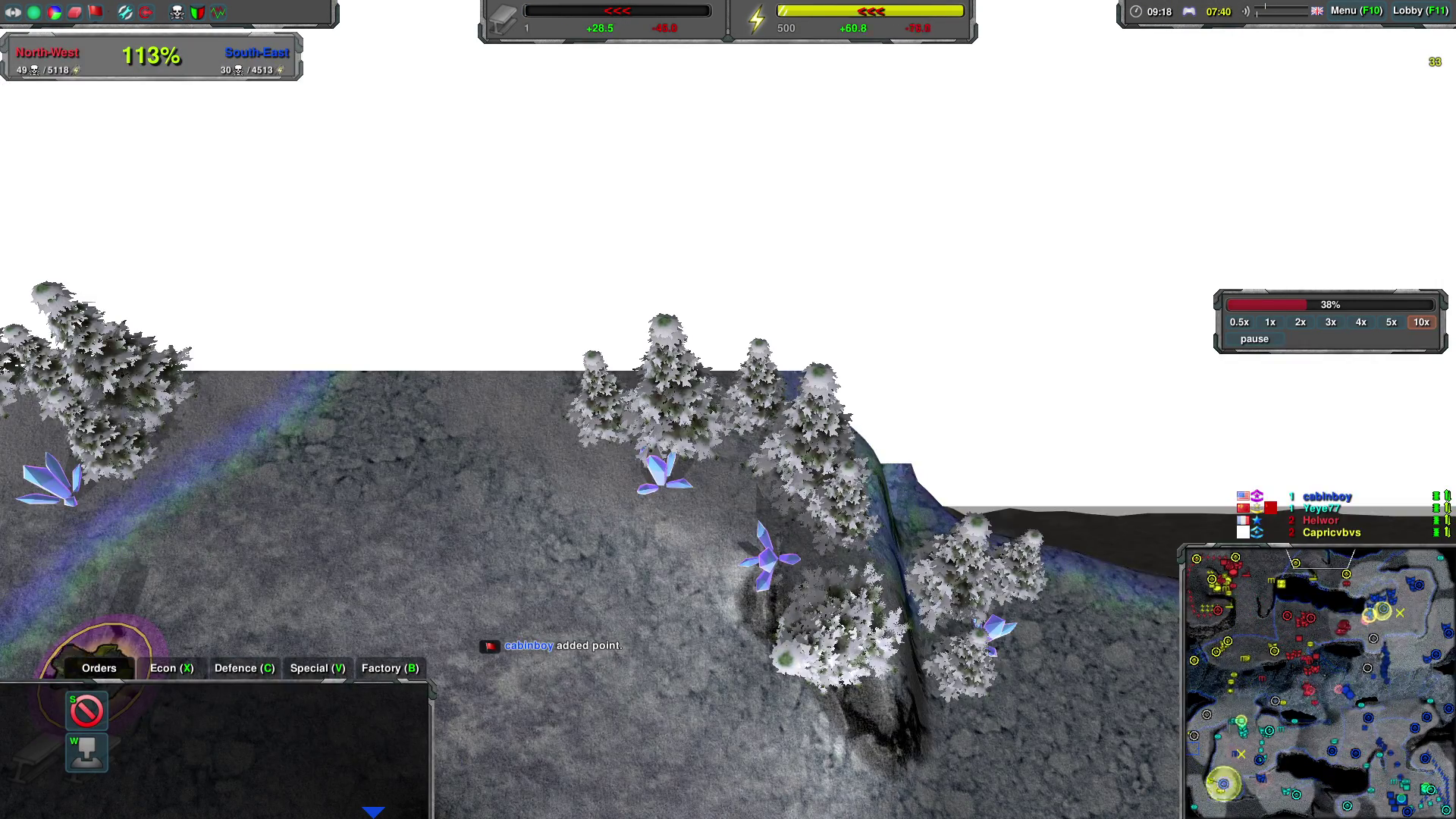

![vlcsnap-2023-03-22-09h27m21s769](https://user-images.githubusercontent.com/1387874/226859261-fd09637f-4e6d-4017-91e4-e5564ad76b12.png)

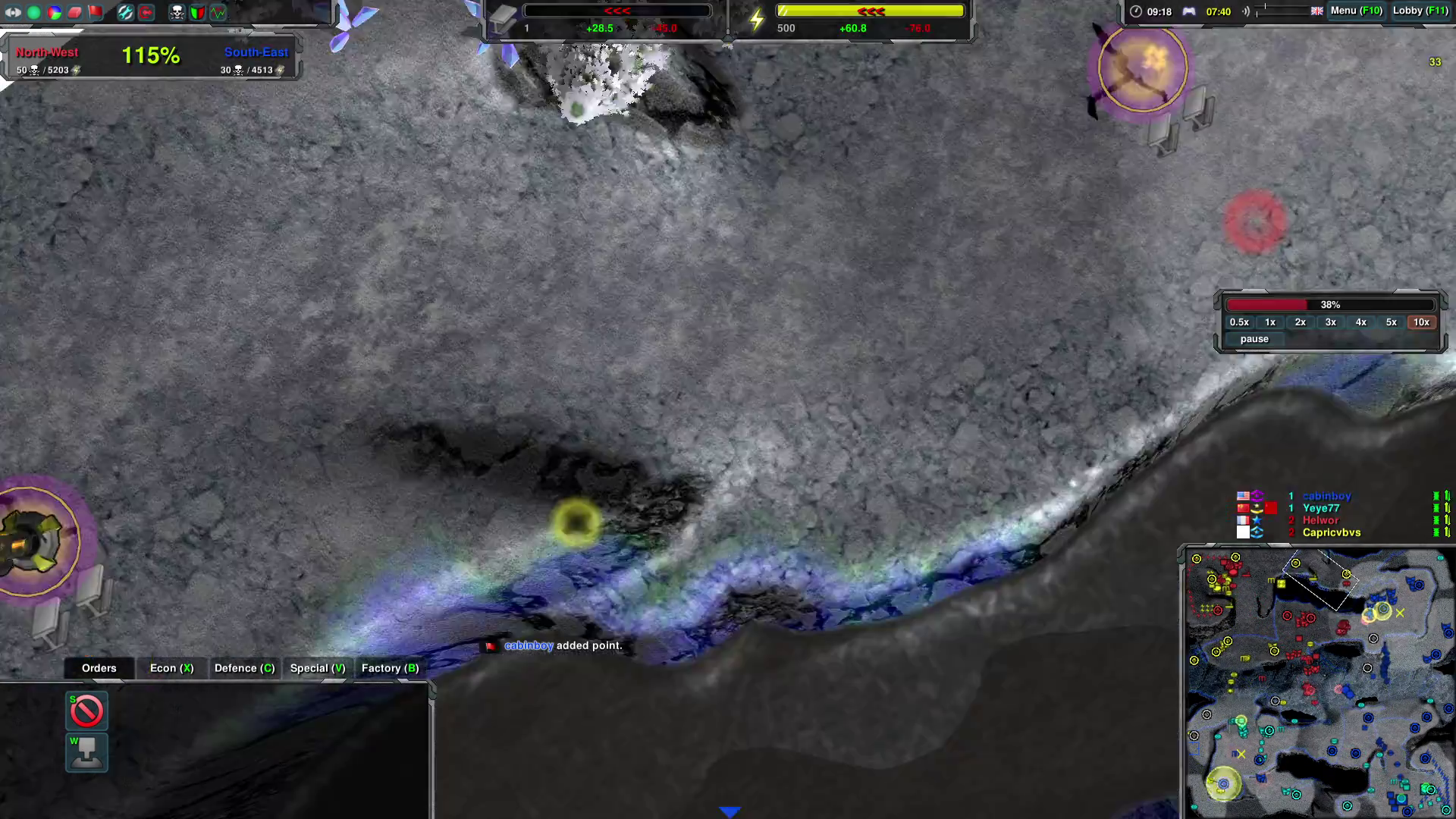

![vlcsnap-2023-03-22-09h27m31s880](https://user-images.githubusercontent.com/1387874/226859270-7fbe3f6b-dbb5-45e5-901e-31a9646ff6bf.png)
![vlcsnap-2023-03-22-09h27m36s930](https://user-images.githubusercontent.com/1387874/226859273-cacdb5bb-439d-4ebe-ae91-f1f973ab06a0.png)

[camerarot.zip](https://github.com/beyond-all-reason/spring/files/11038379/camerarot.zip)

[2023-03-22 09-18-50.zip](https://github.com/beyond-all-reason/spring/files/11038410/2023-03-22.09-18-50.zip)
