(Tags): Tagging a VPC Interface Endpoint applies the tag on the VPCe Security Group instead of a tag on VPCe

Open
#19,332 10 comments 5 reactions 0 assignees View on GitHub
@aws-cdk/aws-ec2 blocked bug needs-cfn p2
Dominant language
TypeScript
Stars
12.9k
Forks
4.6k
Avg merge
1d 19h
Merged PRs (30d)
71

Description

### What is the problem?

Team,
When applying a tag on a VPC Interface Endpoint, the tag gets applied to the Security Group instead of the VPC Endpoint itself.

Code:
```typescript
const vpceEC2 = vpc.addInterfaceEndpoint('vpce-ec2', {
service: ec2.InterfaceVpcEndpointAwsService.EC2,
lookupSupportedAzs: true,
open: true,
privateDnsEnabled: true,
subnets: { subnetType: ec2.SubnetType.PRIVATE_ISOLATED }
});
Tags.of(vpceEC2).add('Name', `myVPCeEC2`);
```

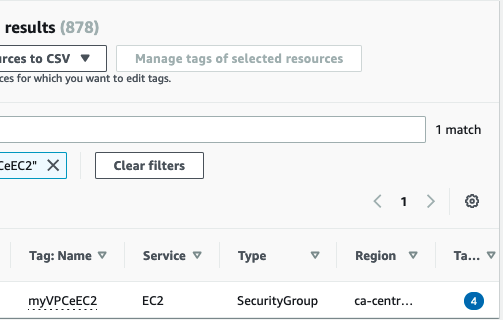

I did a search in Resource Groups Management and the result is as follows:
![Screen Shot 2022-03-10 at 1 41 31 PM](https://user-images.githubusercontent.com/78559652/157732601-c0ac51d0-e301-47b5-8912-66d1dd804e92.png)

### Reproduction Steps

Start a new project using cdk init and using lib `"aws-cdk-lib": "2.15.0"`

Add the following code to your stack
Code:
```typescript
const vpcName = "my-cdk-vpc";
const vpc = new ec2.Vpc(this, vpcName, {
cidr: '10.0.0.0/16',
natGateways: 0,
defaultInstanceTenancy: DefaultInstanceTenancy.DEFAULT,
enableDnsHostnames: buildConfig.enableDnsHostnames,
enableDnsSupport: buildConfig.enableDnsSupport,
maxAzs: buildConfig.vpcMaxAZs,
subnetConfiguration: [
{
name: 'private-isolated-',
subnetType: ec2.SubnetType.PRIVATE_ISOLATED,
cidrMask: 24,
}
],
});
const vpceEC2 = vpc.addInterfaceEndpoint('vpce-ec2', {
service: ec2.InterfaceVpcEndpointAwsService.EC2,
lookupSupportedAzs: true,
open: true,
privateDnsEnabled: true,
subnets: { subnetType: ec2.SubnetType.PRIVATE_ISOLATED }
});
Tags.of(vpceEC2).add('Name', `myVPCeEC2`);
```

### What did you expect to happen?

I expected that the VPC Interface Endpoint to have the tag applied to it.

### What actually happened?

The tag was applied to its security group instead.

### CDK CLI Version

2.15.0 (build 151055e)

### Framework Version

v2

### Node.js Version

v14.15.4

### OS

macOS

### Language

Typescript

### Language Version

3.9.7

### Other information

_No response_
