Can not using amplify-generated Lambda to poll SQS queue

Open
#10,332 3 comments 3 reactions 0 assignees View on GitHub
bug extensibility functions p2
Dominant language
TypeScript
Stars
2.9k
Forks
825
Avg merge
11d 23h
Merged PRs (30d)
2

Description

### Before opening, please confirm:

- [X] I have installed the latest version of the Amplify CLI (see above), and confirmed that the issue still persists.
- [X] I have [searched for duplicate or closed issues](https://github.com/aws-amplify/amplify-cli/issues?q=is%3Aissue+).
- [X] I have read the guide for [submitting bug reports](https://github.com/aws-amplify/amplify-cli/blob/master/CONTRIBUTING.md#bug-reports).
- [X] I have done my best to include a minimal, self-contained set of instructions for consistently reproducing the issue.
- [X] I have removed any sensitive information from my code snippets and submission.

### How did you install the Amplify CLI?

npm

### If applicable, what version of Node.js are you using?

16.3

### Amplify CLI Version

8.0.3

### What operating system are you using?

mac

### Did you make any manual changes to the cloud resources managed by Amplify? Please describe the changes made.

No.

### Amplify Categories

custom

### Amplify Commands

push

### Describe the bug

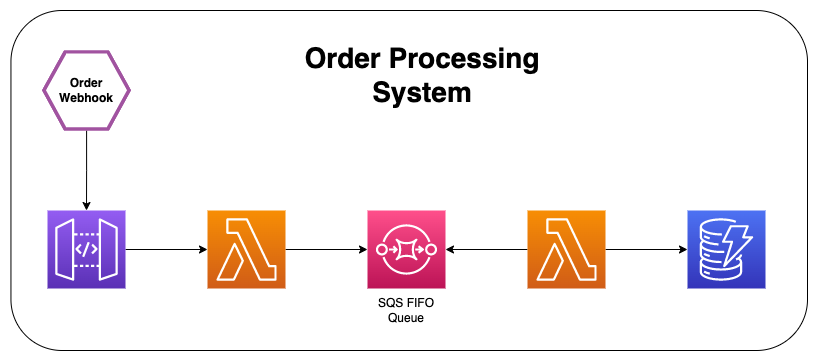

![order-processing-system](https://user-images.githubusercontent.com/5106417/166259113-7cf3cd1f-f97f-46b5-9504-aa033f21f407.png)

I am unable to recreate the diagram above where the following take place:

1. An REST API + function is created with the `amplify add api` command`
2. A database is created with `amplify add storage`
3. A function is created with `amplify add function`
4. An SQS queue is created with `amplify add custom`

The services themselves work, however when importing the second function (the one polling the queue), into the CDK and adding the SQS queue as a subscribed event, the CLI fails to push.

Error message:


At first, I thought this was a simple permissions issue, until I observed the following:

This is my `custom-policies.json` file:
```js
[
{
"Action": [
"sqs:ReceiveMessage",
"sqs:ChangeMessageVisibility",
"sqs:GetQueueUrl",
"sqs:DeleteMessage",
"sqs:GetQueueAttributes"
],
"Resource": ["arn:aws:sqs:us-east-1:*:orderProcessingQueue-${env}"]
}
]
```

When pushing, I can see the function's policy get correctly updated to show that those permissions are being applied and that the queue is being created. Further, I can verify that the Lambda is being attached to the Queue before erroring out.

For my `cdk-stack.ts` file, I have the following:

```js
import * as cdk from '@aws-cdk/core'
import * as AmplifyHelpers from '@aws-amplify/cli-extensibility-helper'
import { AmplifyDependentResourcesAttributes } from '../../types/amplify-dependent-resources-ref'
import * as sqs from '@aws-cdk/aws-sqs'
import { SqsEventSource } from '@aws-cdk/aws-lambda-event-sources'
import * as lambda from '@aws-cdk/aws-lambda'
import * as iam from '@aws-cdk/aws-iam'

export class cdkStack extends cdk.Stack {
constructor(
scope: cdk.Construct,
id: string,
props?: cdk.StackProps,
amplifyResourceProps?: AmplifyHelpers.AmplifyResourceProps
) {
super(scope, id, props)
/* Do not remove - Amplify CLI automatically injects the current deployment environment in this input parameter */
new cdk.CfnParameter(this, 'env', {
type: 'String',
description: 'Current Amplify CLI env name',
})

//create the sqs queue that matches our Amplify environment
const queue = new sqs.Queue(this, 'orderProcessingQueue', {
queueName: `orderProcessingQueue-${cdk.Fn.ref('env')}`,
})

//get access to our Amplify resource (Lambda function)
const retVal: AmplifyDependentResourcesAttributes =
AmplifyHelpers.addResourceDependency(
this,
amplifyResourceProps.category,
amplifyResourceProps.resourceName,
[{ category: 'function', resourceName: 'orderQueuePoller' }]
)

const lambdaRole = iam.Role.fromRoleArn(
this,
'lambdaRole',
`arn:aws:iam:::role/${cdk.Fn.ref(
retVal.function.orderQueuePoller.LambdaExecutionRole
)}`
)

lambdaRole.attachInlinePolicy(
new iam.Policy(this, 'receive-events', {
statements: [
new iam.PolicyStatement({
actions: ['sqs:ReceiveMessage'],
resources: [queue.queueArn],
}),
],
})
)

//create a CDK instance of our Amplify Lambda
const orderQueuePoller = lambda.Function.fromFunctionAttributes(
this,
'orderQueuePoller',
{
functionArn: cdk.Fn.ref(retVal.function.orderQueuePoller.Arn),
role: lambdaRole,
}
)

//add the queue as an event that the our Lambda will listen for
orderQueuePoller.addEventSource(new SqsEventSource(queue))
}
}
```

Note that I have to also add a policy to my function to poll events from SQS here as well to satisfy CDK's type definition.

### Expected behavior

I would expect the queue and Lambda to be connected so that the Lambda can receive events.

I believe it would be helpful for the roleARN to be exposed as the `AmplifyDependentResourcesAttributes` file.

### Reproduction steps

_in section describing the bug_

### GraphQL schema(s)

```graphql
# Put schemas below this line

```

### Log output

```
# Put your logs below this line

```

### Additional information

_No response_
