Description

If using ANSI colors in a table formatting function, the columns are not padded correctly due to the fact that the ANSI color commands are included in the length of the string:

```python
In [1]: from termcolor import colored

In [2]: def fmt(x):
...: if x > 0:
...: return colored(str(x), 'green')
...: else:
...: return colored(str(x), 'red')
...:

In [4]: from astropy.table import Table
t =
In [5]: t = Table()

In [6]: t['a'] = [-1, 1, 0, 3, -3]

In [7]: t['b'] = [-1, 1, 0, 3, -3]

In [8]: t
Out[8]:

a b
int64 int64
----- -----
-1 -1
1 1
0 0
3 3
-3 -3

In [9]: t['a'].format = fmt

In [10]: t['b'].format = fmt

In [11]: t
Out[11]:

a b
int64 int64
----------- -----------
-1 -1
1 1
0 0
3 3
-3 -3
```

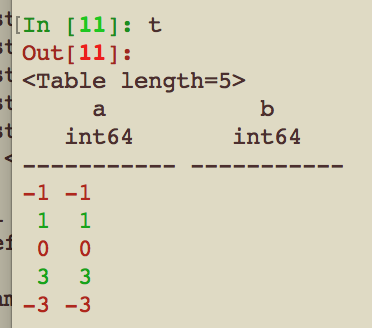

The color works correctly though:

screen shot 2017-12-29 at 16 48 25

It would be nice if we could do the right thing™️ here though and auto-strip the ANSI color commands from strings when figuring out the width of the columns. Feel free to close this if it would be much too difficult though.
