Description
I noticed a slight inconsistency between blender and armory with face normals / object scales.

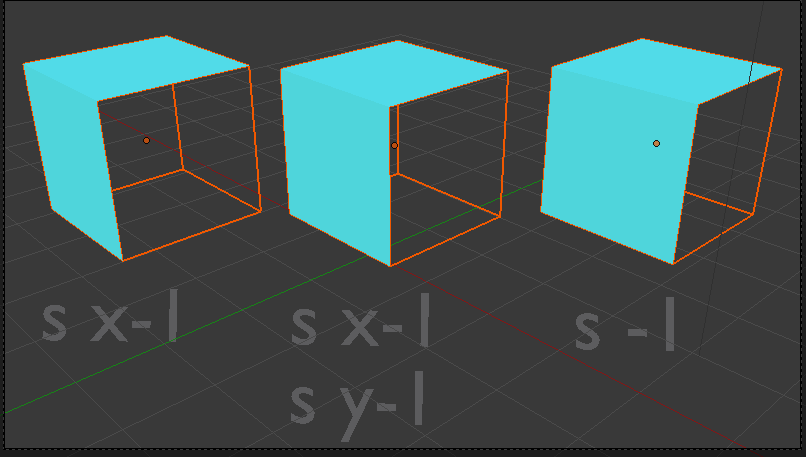

Blender (2 faces removed from default cube, backface culling enabled):

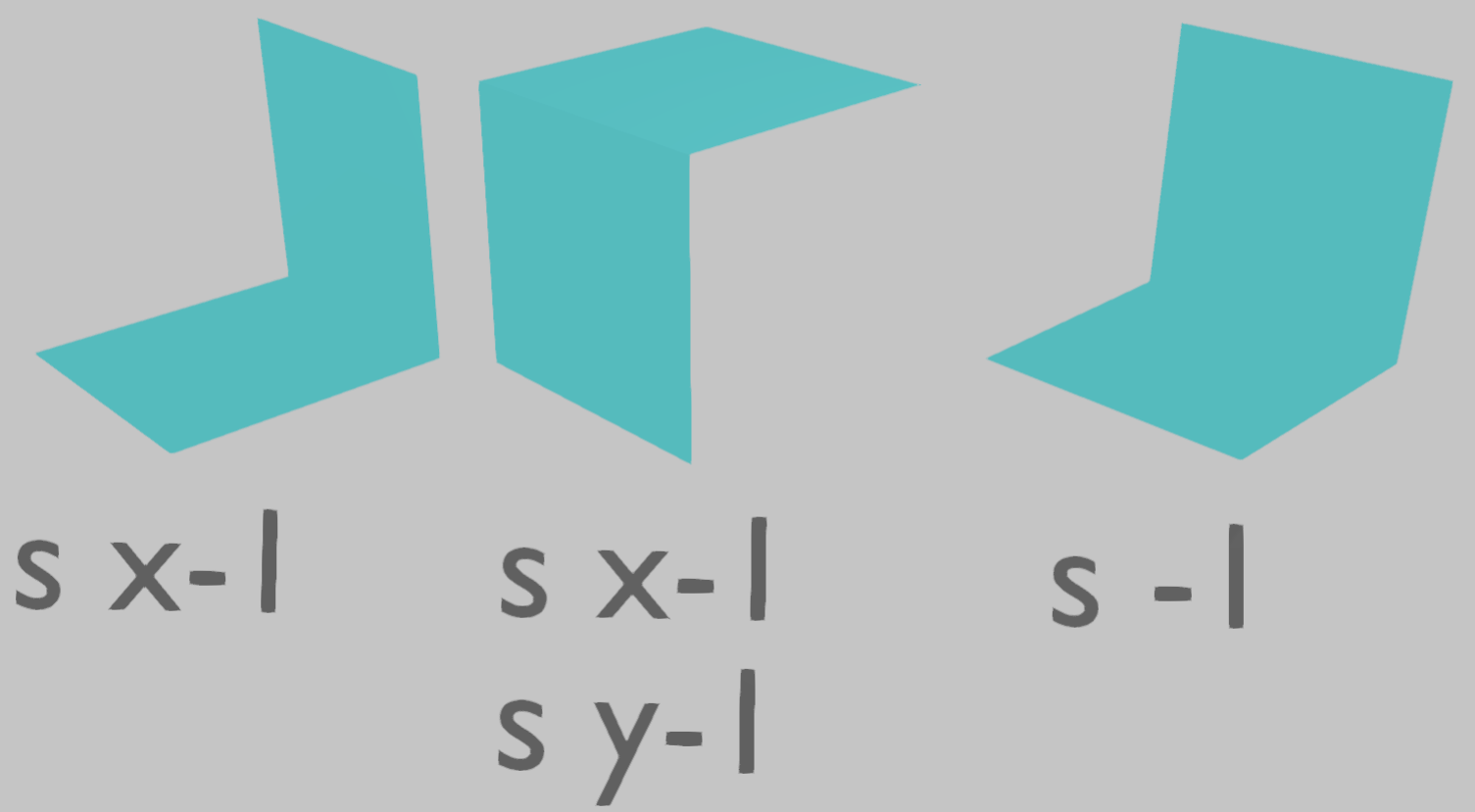

Armory:
Blender seems to flip the face normals, if the (product of the signs of the components of the) scale is negative. Armory's way seems to make more sense, however I think consistency would be good between both.
[negativescale.zip](https://github.com/armory3d/armory/files/1545228/negativescale.zip)
