Armature Parent to Vertex Group - vertices with 0 bone weight get dropped

Open
#316 2 comments 1 reaction 0 assignees View on GitHub
bug
Dominant language
C++
Stars
3.3k
Forks
353
Avg merge
3d 16h
Merged PRs (30d)
1

Description

Hi,

[Disclaimer: I am now reporting a lot of bugs that i find playing with Armory. The intent is to help make it better. Let me know if this is helpful or not.]

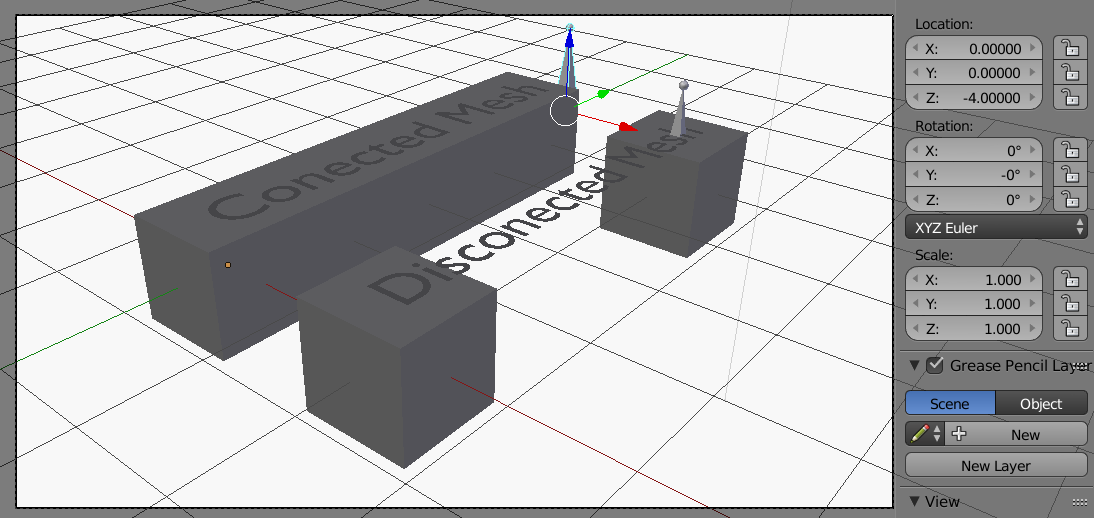

The following set up:
![image](https://user-images.githubusercontent.com/33040347/32347646-9166265e-c011-11e7-9f1f-e5ac8a299263.png)
Left and right side contain one mesh each (even though right side consists of two cubes - it's still one mesh).
On the **left side**, two vertices are parented to the bone. The bone is moved along Y in pose mode.
On the **right side**, one cube (disconnected mesh) is parented to the bone. The bones is moved along Y in pose mode.

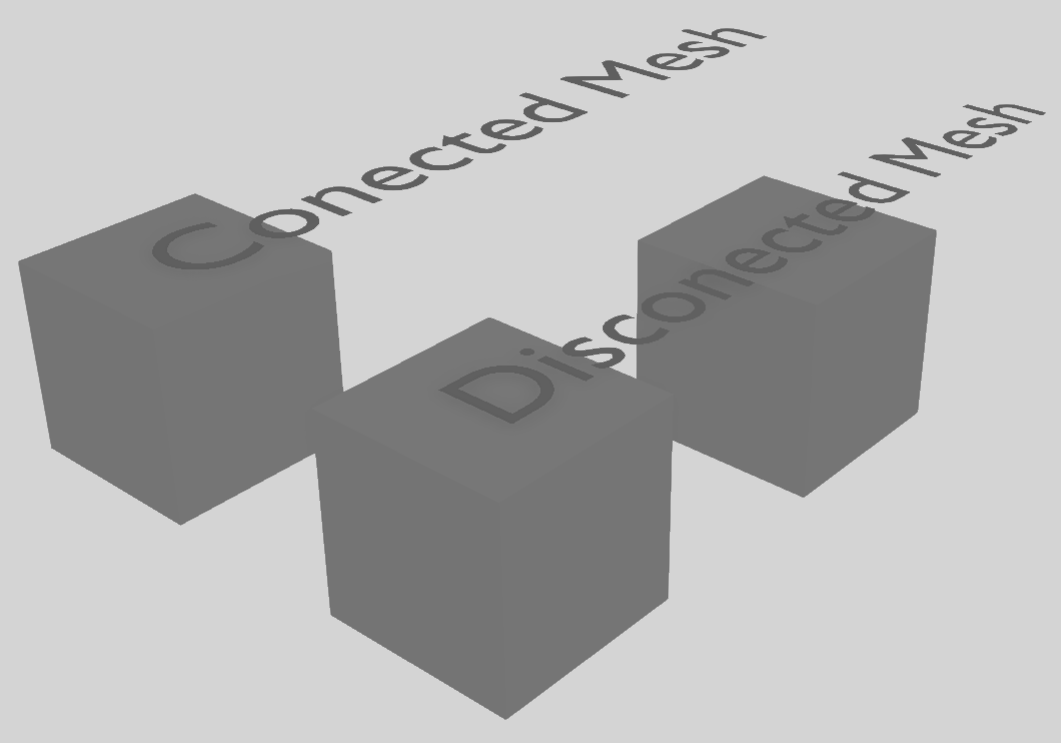

**Issue 1: With no animation applied**
Armory does not show any displacement of the geometry.
![image](https://user-images.githubusercontent.com/33040347/32347557-60080884-c011-11e7-9b5f-06a3e61bb8d3.png)

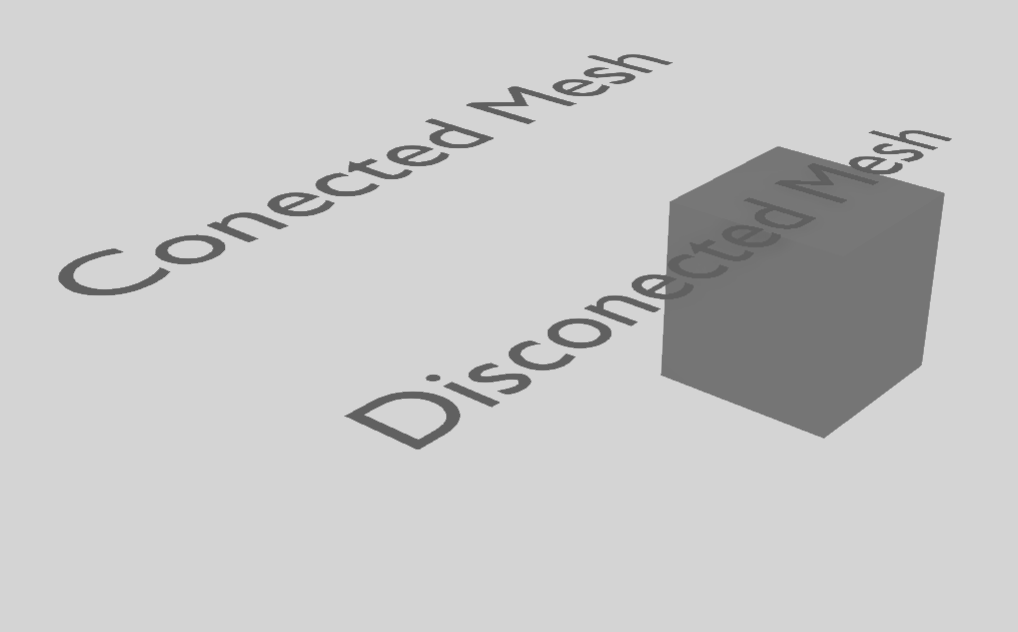

**Issue 2: With animation applied on bone**
For connected mesh, armory shows nothing.
For disconnected mesh, armory shows only the parts that are parented to a bone (not-parented parts are not shown).
![image](https://user-images.githubusercontent.com/33040347/32347775-0a4ea3d4-c012-11e7-844c-2538261845b7.png)

[Issue.zip](https://github.com/armory3d/armory/files/1439240/Issue.zip)

Contributor guide

No contributing guide indexed for this repository

Research direction

Open the attached Issue.zip in Blender and reproduce both reported cases: an armature-parented mesh without animation and one with bone animation. Trace the Armory Blender integration and skinning path from that reproduction; done means connected and disconnected meshes retain all vertices, including those with zero bone weight, and follow the bone as described.
