Language support (in particular, RU)

Open
#1,937 0 comments 1 reaction 0 assignees View on GitHub

Nobody has claimed this yet.

bug zui
Dominant language
C++
Stars
3.3k
Forks
353
Avg merge
3d 16h
Merged PRs (30d)
1

Description

Description
At the moment, empty lines (spaces) are displayed instead of text in the UI in my language.

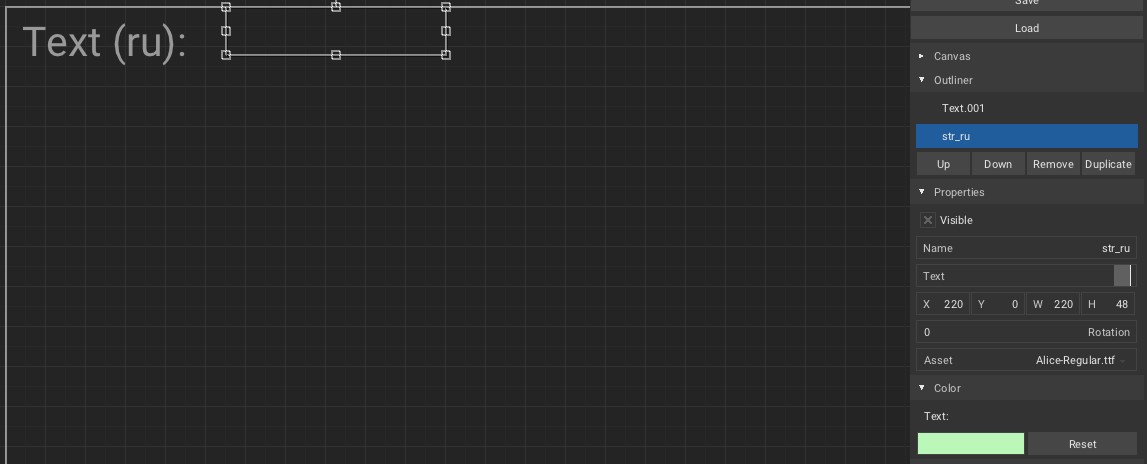

  • If I try to specify text in the UI editor, then the field will be empty:
    editor_ui

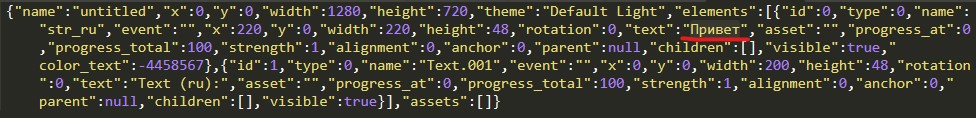

But the .json file contains the correct text:
ui_json

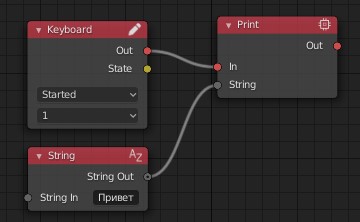

  • If we write in a logical node, then we get an error:
    result_ln_settext

Malformed file. Source files must be encoded with UTF-8.

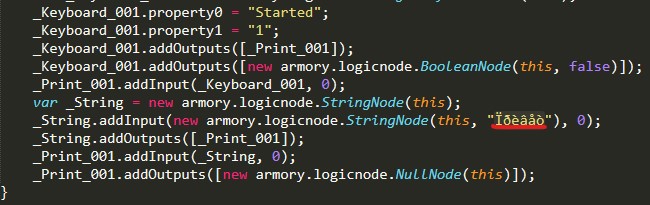

As a result, it is exported to the code as follows:
result_ln

  • If you write Haxe in the script, then it will be output to the console, but not by the engine in the UI.
    The code:
package arm;
import iron.Scene;
import armory.trait.internal.CanvasScript;

class SetText extends iron.Trait {
	public function new() {
		super();

		notifyOnUpdate(function() {
			var str_hello = "Привет";
			trace("Check trace: " + str_hello);
			var canvas = Scene.active.getTrait(CanvasScript);
			if (canvas == null) canvas = Scene.active.camera.getTrait(CanvasScript);
			var e = canvas.getElement("str_ru");
			if (e != null) e.text = str_hello;
			trace("Check text element: " + e.text);
		});
	}
}

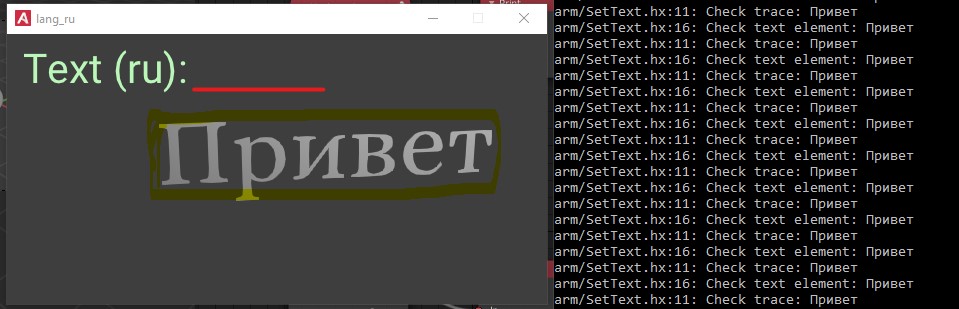

Result:
result_code
As an experiment, the Text object from Blender is also displayed and, as you can see in the picture, everything is displayed correctly.

P.S. For all elements, the font Alice was specified, which supports the language.

System
Blender: 2.83.7
Armory: git, master (e9c351c)
OS: Windows 10 64-bit
Graphics card: NVIDIA GeForce 930M

Test File
lang_ru.zip
