Description

Hi,

I'm using:
version: 2.80 (sub 41), branch: master, commit date: 2019-01-11 23:51, hash: ce3475f7479
build date: 11/01/2019, 17:03
platform: Windows 10
armory from yesterday

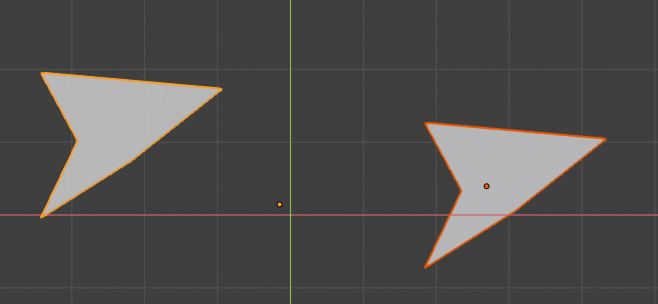

There's a problem with the dimension and the "bounding box" in armory. Here's my scene in blender:
![Blender](https://user-images.githubusercontent.com/47137964/56689596-c2961f00-66db-11e9-9c2d-94cfdba79dd8.png)
On the left, there's a polygon with its origin close to (0,0,0). The right polygon has its origin at its center. Both have no scale applied.

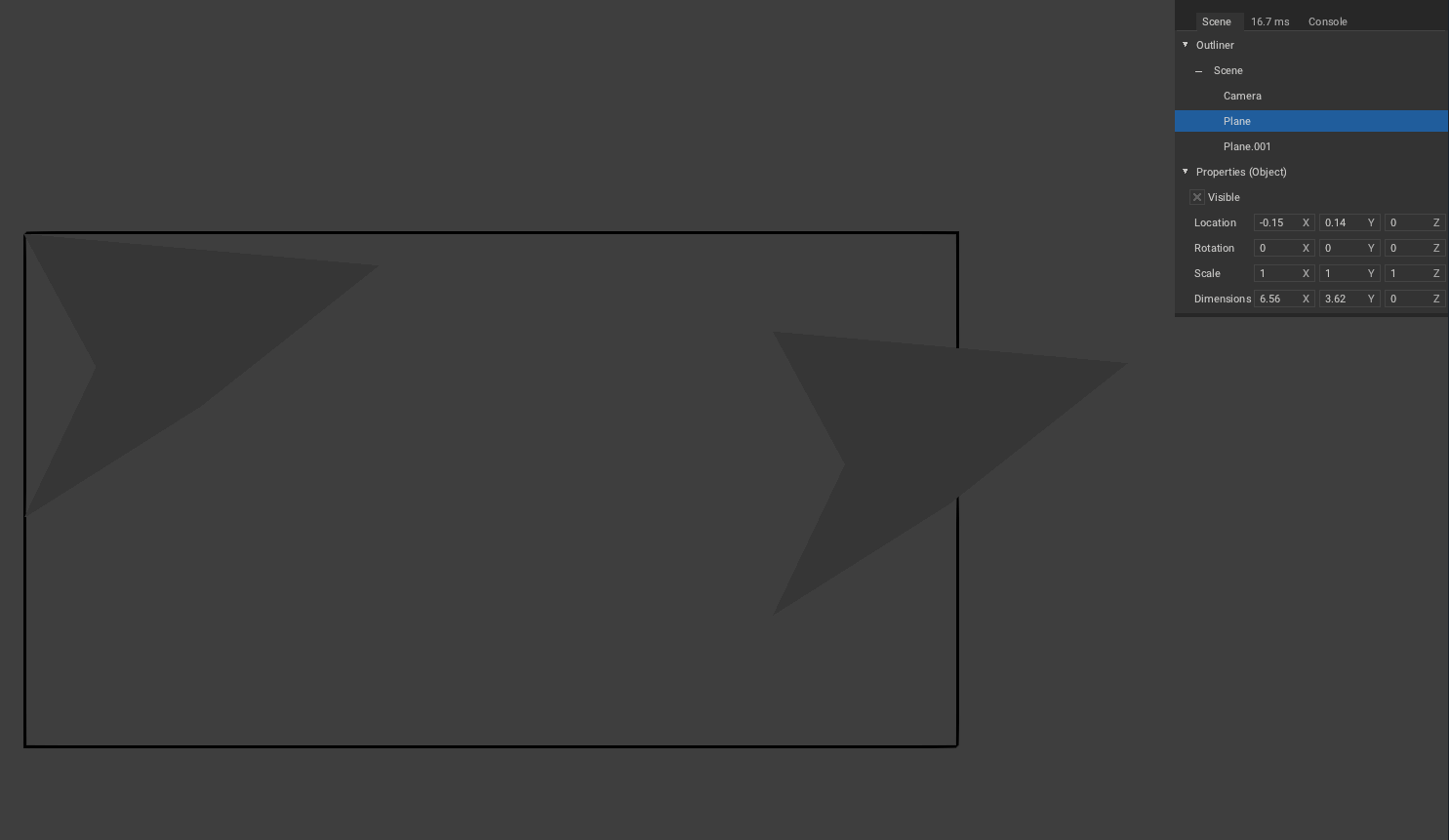

When viewing them with debug in Krom, the output look like this (for the left polygon):
![Krom1](https://user-images.githubusercontent.com/47137964/56689689-eb1e1900-66db-11e9-84bc-4786a7d0cb89.png)

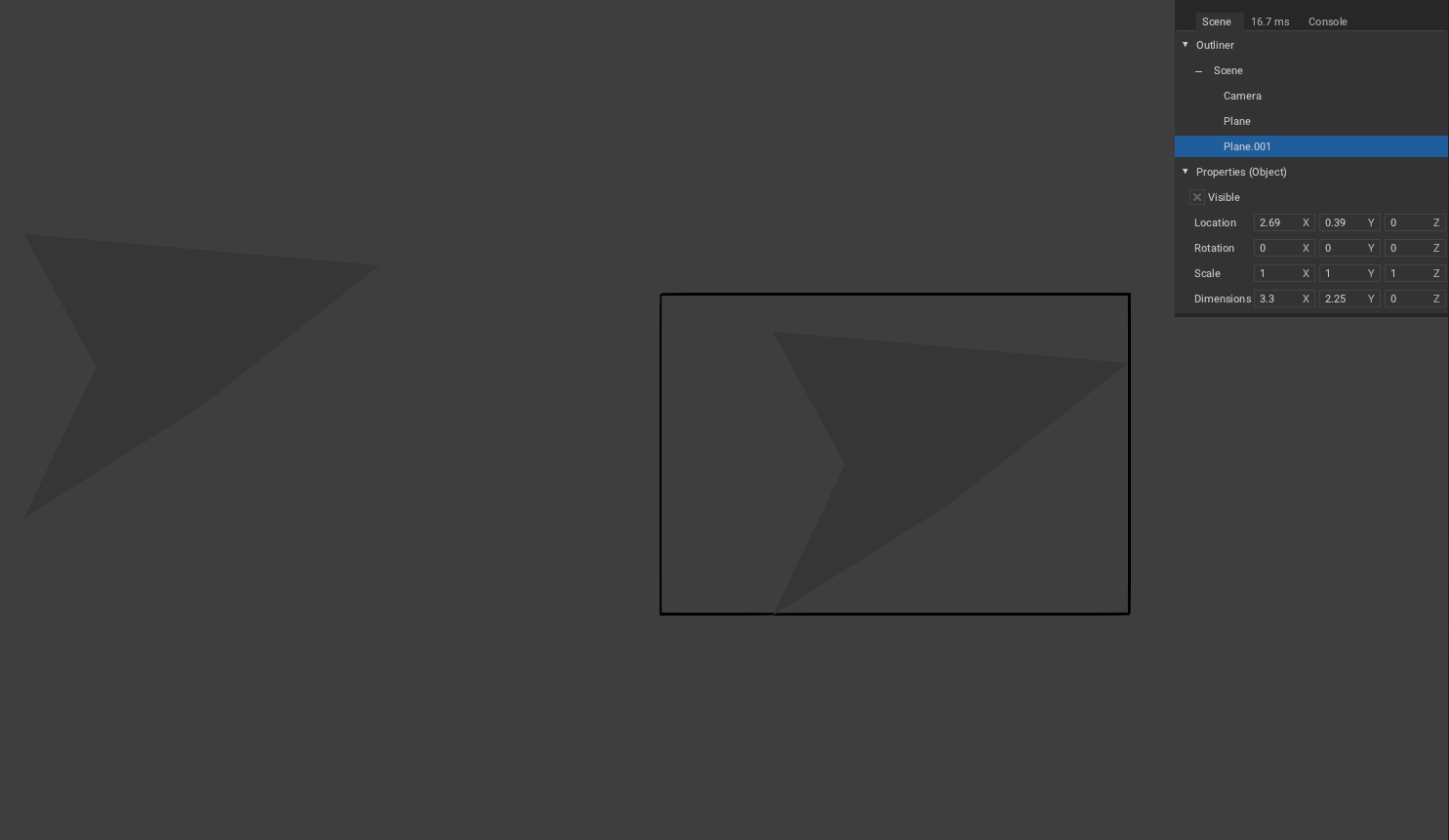

And like this for the right one:
![Krom2](https://user-images.githubusercontent.com/47137964/56689709-fbce8f00-66db-11e9-9a00-7cdc4325543d.png)

Note that for the first polygon the x-dimension is 6.56 and for the second it's 3.3 (y dimensions differ as well)

Here's the .blend to reproduce the problem:
[DimensionBug.zip](https://github.com/armory3d/armory/files/3113949/DimensionBug.zip)

With this bug, no reliable calculation based on the dimension of the object can be performed.
