Description
**ArmorPaint version:**
ArmorPaint.org - v0.8 (2021-04-28) - e334850
**OS/device including version:**
Win10 x64
**Issue description:**
Bump node produces several unexpected results.
**Steps to reproduce:**
**1. Issue**
Build the following graph in ArmorPaint and in Blender
By using the standard 2mx2mx2m cube from Blender in both programms, we get
ArmorPaint's result is way different
**2. Issue**
I build myself a simple Bump height map
and used it in Blender and in ArmorPaint. The idea was to compare the normal vector directions.
Blender:

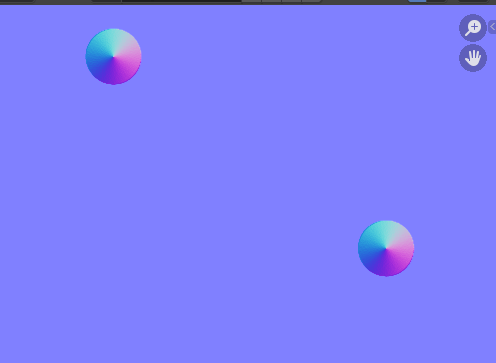

ArmorPaint:
Notice that the normal vector directions are different. If you look carefully you can see that they differ by a flip in y-direction. To highlight this I set strength 5 in ArmorPaint vs. strength 1 in Blender as the strength differs.
