ArgoCD omites values.yaml file under subfolders

Looks like ArgoCD is omiting the values.yaml file under my subfolder:


I am using app of apps approach so first I install ArgoCD through Terraform and later ArgoCD will install all the necessary app for the cluster.

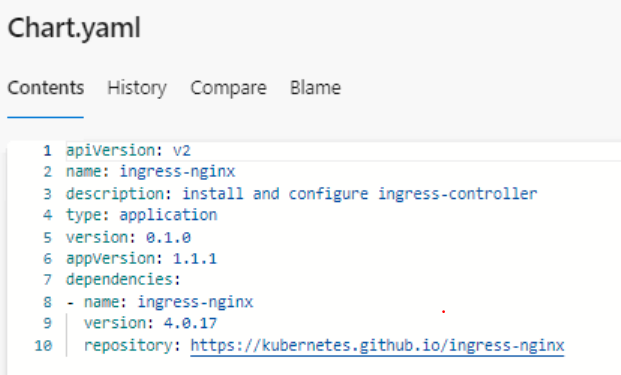

This is my chart.yaml


and this is a piece of code of values.yaml file that overrides the default one.
```
external:
enabled: false

internal:
# -- Enables an additional internal load balancer (besides the external one).
enabled: true
# -- Annotations are mandatory for the load balancer to come up. Varies with the cloud service.
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"

loadBalancerIP: "10.xx.xx.xx" #

# -- Restrict access For LoadBalancer service. Defaults to 0.0.0.0/0.
loadBalancerSourceRanges: []
```

I specified this code to get always the same private IP for my ingress svc LoadBalancer.

ingress-nginx is installed successfully but looks like omits the values.yaml file where I have specified an IP for the internal loadbalancer...

However if I install it manually using helm install ... -f values.yaml the ingress svc loadbalancer is picking up the IP that I specified in values.yaml file...

Any idea about this?

Thanks.
