Nano 33 BLE Sense LSM9DS1 data loss

Hi,

I used Nano 33 BLE Sense to collect the 9-DOF data samples by LSM9DS1.

The I2C data rate is set:
- _wire->setClock(400000) ;

Gyroscope and accelerometer sample rates are set to 952Hz:
- writeRegister(LSM9DS1_ADDRESS, LSM9DS1_CTRL_REG1_G, 0xD8);
- writeRegister(LSM9DS1_ADDRESS, LSM9DS1_CTRL_REG6_XL, 0xC8);
- The continuous mode was selected: setContinuousMode()

Magnetic is set as:
- writeRegister(LSM9DS1_ADDRESS, LSM9DS1_CTRL_REG6_XL, 0xC8);
- writeRegister(LSM9DS1_ADDRESS_M, LSM9DS1_CTRL_REG3_M, 0x00);

It works very well with the deprecated Arduino Mbed OS boards (V1.3.2) without data loss.

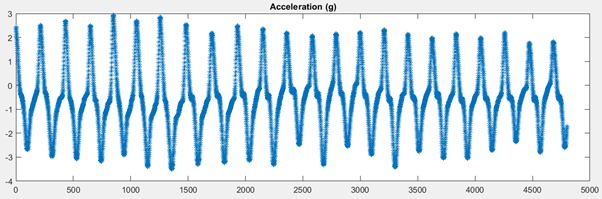

However, there are some data samples lost if I use Arduino Mbed OS Nano Boards (I tested several versions, including the latest V2.7.2).

Is any change in the new OS library that affects the data read or processing speed?

Thank you very much.

Tang
