Description

**Describe the bug**
In our production, after a node restart, a topic partition keeping load timed out:
```
2022-04-26T21:39:30.444Z ERROR [pulsar-io-4-16] org.apache.pulsar.broker.service.ServerCnx - [/10.xxx:56961] Failed to create topic persistent://data/uu/feature.plain.result.queue-partition-31, producerId=31
java.util.concurrent.CompletionException: org.apache.pulsar.common.util.FutureUtil$LowOverheadTimeoutException: Failed to load topic within timeout
at java.util.concurrent.CompletableFuture.encodeThrowable(CompletableFuture.java:292)
at java.util.concurrent.CompletableFuture.completeThrowable(CompletableFuture.java:308)
at java.util.concurrent.CompletableFuture.uniCompose(CompletableFuture.java:943)
at java.util.concurrent.CompletableFuture$UniCompose.tryFire(CompletableFuture.java:926)
at java.util.concurrent.CompletableFuture.postComplete(CompletableFuture.java:474)
at java.util.concurrent.CompletableFuture.completeExceptionally(CompletableFuture.java:1977)
at org.apache.pulsar.common.util.FutureUtil.lambda$addTimeoutHandling$1(FutureUtil.java:141)
at io.netty.util.concurrent.PromiseTask.runTask(PromiseTask.java:98)
at io.netty.util.concurrent.ScheduledFutureTask.run(ScheduledFutureTask.java:170)
at io.netty.util.concurrent.AbstractEventExecutor.safeExecute(AbstractEventExecutor.java:164)
at io.netty.util.concurrent.SingleThreadEventExecutor.runAllTasks(SingleThreadEventExecutor.java:469)
at io.netty.channel.epoll.EpollEventLoop.run(EpollEventLoop.java:384)
at io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:986)
at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.pulsar.common.util.FutureUtil$LowOverheadTimeoutException: Failed to load topic within timeout
at org.apache.pulsar.broker.service.BrokerService.futureWithDeadline(...)(Unknown Source)
```
The log shows there's one cursor recovery didn't callback, it seems cursor's ledger recover took very long time:
```
2022-04-26T21:38:30.533Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:38:30.533Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:38:30.539Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:39:30.560Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:39:30.560Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:39:30.561Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:40:30.667Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:40:30.667Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:40:30.668Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:41:30.773Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:41:30.773Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:41:30.773Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:42:30.888Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:42:30.888Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:42:30.888Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:43:31.106Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:43:31.106Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:43:31.106Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:44:31.391Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovering from bookkeeper ledger cursor: data.feature.c.user.deliver.and.chat.features.to.hbase
2022-04-26T21:44:31.391Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Consumer data.feature.c.user.deliver.and.chat.features.to.hbase meta-data recover from ledger 110091138
2022-04-26T21:44:31.391Z INFO [bookkeeper-ml-scheduler-OrderedScheduler-4-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Loading cursor data.feature.c.user.deliver.and.chat.features.to.hbase
```

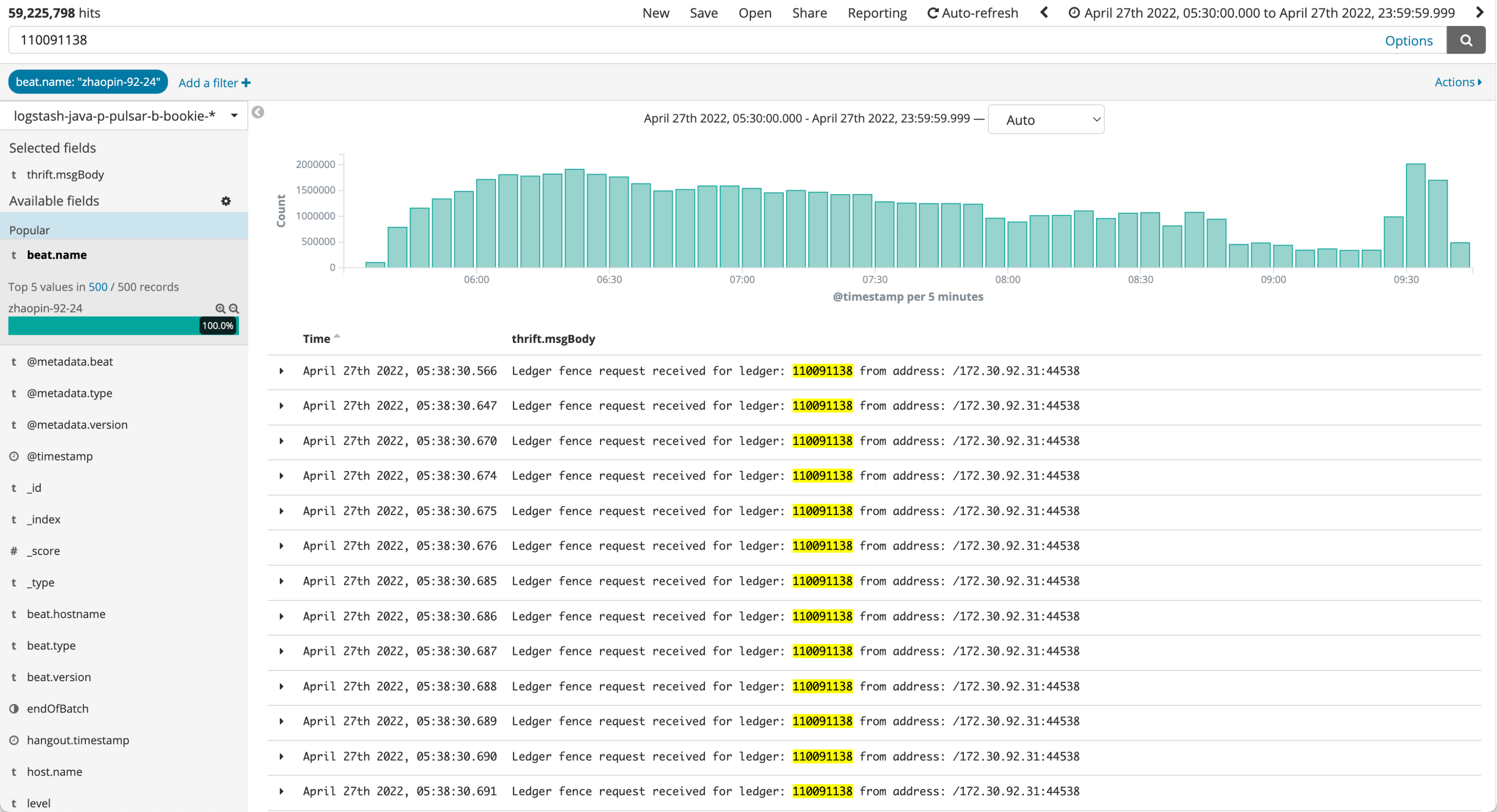

And it will start a new recover op after `managedLedgerMetadataOperationsTimeoutSeconds`, so bookie keep logging `Ledger fence request received for ledger`:

After near 27h, the recover op finally callback (Actually the topic has been moved to another node in this moment):
```
2022-04-28T00:25:36.147Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.163Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.163Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.172Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Cursor data.feature.c.user.deliver.and.chat.features.to.hbase recovered to position 110398886:151969
2022-04-28T00:25:36.173Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovery for cursor data.feature.c.user.deliver.and.chat.features.to.hbase completed. pos=110398886:151969 -- todo=0
2022-04-28T00:25:36.188Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Cursor data.feature.c.user.deliver.and.chat.features.to.hbase recovered to position 110398886:151969
2022-04-28T00:25:36.188Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovery for cursor data.feature.c.user.deliver.and.chat.features.to.hbase completed. pos=110398886:151969 -- todo=0
2022-04-28T00:25:36.189Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Cursor data.feature.c.user.deliver.and.chat.features.to.hbase recovered to position 110398886:151969
2022-04-28T00:25:36.189Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovery for cursor data.feature.c.user.deliver.and.chat.features.to.hbase completed. pos=110398886:151969 -- todo=0
2022-04-28T00:25:36.479Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.480Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedLedgerImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Recovery for cursor data.feature.c.user.deliver.and.chat.features.to.hbase completed. pos=110398886:151969 -- todo=0
2022-04-28T00:25:36.480Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Cursor data.feature.c.user.deliver.and.chat.features.to.hbase recovered to position 110398886:151969
2022-04-28T00:25:36.487Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.487Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.487Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.487Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.487Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.487Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.489Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
2022-04-28T00:25:36.489Z INFO [BookKeeperClientWorker-OrderedExecutor-2-0] org.apache.bookkeeper.mledger.impl.ManagedCursorImpl - [data/uu/persistent/feature.plain.result.queue-partition-31] Opened ledger 110091138 for consumer data.feature.c.user.deliver.and.chat.features.to.hbase. rc=0
```

**Additional context**
- OS: `3.10.0-1160.53.1.el7.x86_64`
- java: `1.8.0_181`
- pulsar: `2.8.3`
