🐛 [BUG]pie,环图,svg渲染,legend-item:mouseenter响应不及时,以及flippage:true,分页切换,点击下一页,再点击上一页,legend回不到第一页
- Dominant language
- TypeScript
- Stars
- 2.7k
- Forks
- 591
- PR merge metrics
- No merged PRs in 30d
Description
### 🐛 pie,环图,svg渲染模式,legend-item:mouseenter响应不及时,分页不正常
import React, { useState, useEffect } from 'react';
import ReactDOM from 'react-dom';
import { Pie, measureTextWidth } from '@ant-design/plots';
const DemoPie = () => {
function renderStatistic(containerWidth, text, style) {
const { width: textWidth, height: textHeight } = measureTextWidth(text, style);
const R = containerWidth / 2; // r^2 = (w / 2)^2 + (h - offsetY)^2
let scale = 1;
if (containerWidth < textWidth) {
scale = Math.min(Math.sqrt(Math.abs(Math.pow(R, 2) / (Math.pow(textWidth / 2, 2) + Math.pow(textHeight, 2)))), 1);
}
const textStyleStr = `width:${containerWidth}px;`;
return `
}
const data = [
{
type: '分类一',
value: 27,
},
{
type: '分类二',
value: 25,
},
{
type: '分类三',
value: 18,
},
{
type: '分类四',
value: 15,
},
{
type: '分类五',
value: 10,
},
{
type: '其他',
value: 5,
},
];
const config = {
appendPadding: 10,
data,
angleField: 'value',
colorField: 'type',
renderer: 'svg',
radius: 1,
innerRadius: 0.64,
meta: {
value: {
formatter: (v) => `${v} ¥`,
},
},
label: {
type: 'inner',
offset: '-50%',
style: {
textAlign: 'center',
},
autoRotate: false,
content: '{value}',
},
statistic: {
title: {
offsetY: -4,
customHtml: (container, view, datum) => {
const { width, height } = container.getBoundingClientRect();
const d = Math.sqrt(Math.pow(width / 2, 2) + Math.pow(height / 2, 2));
const text = datum ? datum.type : '总计';
return renderStatistic(d, text, {
fontSize: 28,
});
},
},
content: {
offsetY: 4,
style: {
fontSize: '32px',
},
customHtml: (container, view, datum, data) => {
const { width } = container.getBoundingClientRect();
const text = datum ? `¥ ${datum.value}` : `¥ ${data.reduce((r, d) => r + d.value, 0)}`;
return renderStatistic(width, text, {
fontSize: 32,
});
},
},
},
legend: {
position: 'right',
offsetX: -10,
flipPage: true,
pageNavigator: {
marker: {
style: {
// 非激活,不可点击态时的填充色设置
inactiveFill: 'rgba(255, 255, 255, 0.4)',
inactiveOpacity: 0.45,
// 默认填充色设置
fill: 'rgba(255, 255, 255, 0.8)',
opacity: 0.8,
},
},
},
maxItemWidth:60,
itemHeight: 20,
marker: {
style: (oldStyle) => {
return {
...oldStyle,
r: 4,
lineWidth: 2,
fillOpacity: 1,
// square marker 只有填充色,赋给 line 的 stroke
stroke: oldStyle.stroke || oldStyle.fill,
};
},
},
itemName: {
style: {
fill: '#f00',
},
formatter: () => {
return 'ceshishiushishsihsishishsihsihsihsh';
},
},
},
// 添加 中心统计文本 交互
interactions: [
{
type: 'element-selected',
},
{
type: 'element-active',
},
{
type: 'pie-statistic-active',
},
],
};
return {
// console.log('chart',chart)
pie.on('legend-item:mouseenter', (evt: any) => {
// console.log('ddd',evt);
});
pie.on('legend-item:mouseleave', () => {
});
}}/>;
};
ReactDOM.render(, document.getElementById('container'));
### 📷 Step to reproduce


### 🏞 Expected result
1、mouseenter能响应及时,因为我需要鼠标移到对应的legend-item有特定的动画
2、legend分页切换正常显示

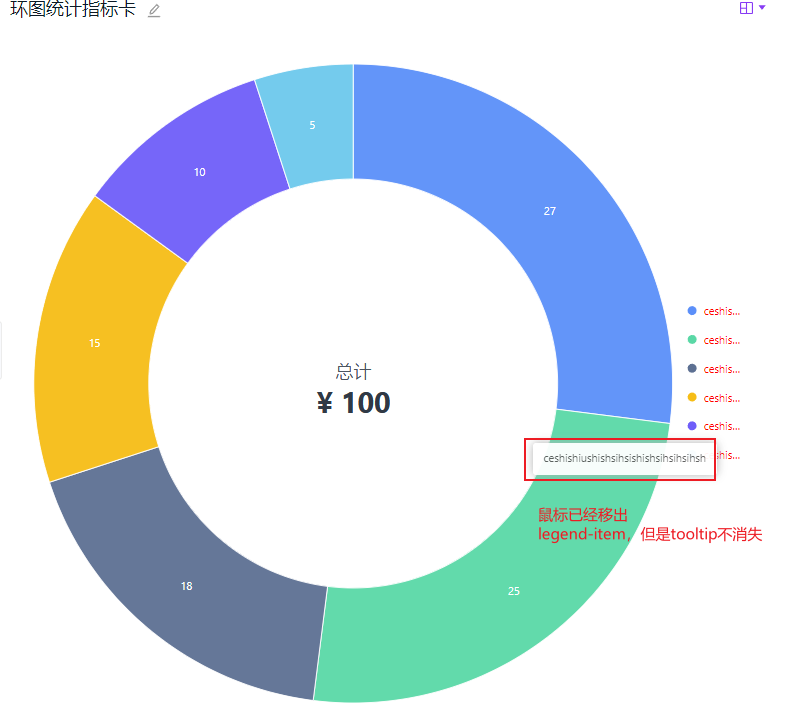

3、当legend-item设置了最大的宽度时,超过对应的宽度鼠标移上去能有tooltip内容,移开就消失

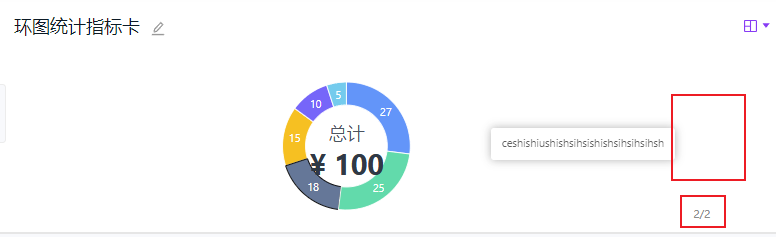

### 🚑 Any additional [like screenshots]
* **G2Plot Version**:"@ant-design/charts": "^1.3.6",
"@ant-design/icons": "^4.6.4",
"@ant-design/plots": "^1.0.9",
* **Platform**:React
