🐛 [BUG] dual-axes.legend.custum = true, 图例操作不响应

Open
#2,947 0 comments 3 reactions 0 assignees View on GitHub
Bug
Dominant language
TypeScript
Stars
2.7k
Forks
591
PR merge metrics
No merged PRs in 30d

Description

### 🐛 Bug description [Please make everyone to understand it]

> Please provide a link by forking these links [G2Plot](https://codesandbox.io/s/g2plot-issue-template-gzfdq?file=/index.ts) or GitHub repo, a minimal reproduction.

* _Required_ **Link to minimal reproduction**:

### 📷 Step to reproduce
```js
import { DualAxes as PlotC } from '@antv/g2plot';

const columnData = [
{ time: '2019-03', value: 350, type: 's1' },
{ time: '2019-04', value: 900, type: 's1' },
{ time: '2019-05', value: 300, type: 's1' },
{ time: '2019-06', value: 450, type: 's1' },
{ time: '2019-07', value: 470, type: 's1' },
{ time: '2019-03', value: 220, type: 's2' },
{ time: '2019-04', value: 300, type: 's2' },
{ time: '2019-05', value: 250, type: 's2' },
{ time: '2019-06', value: 220, type: 's2' },
{ time: '2019-07', value: 362, type: 's2' },

{ time: '2019-03', value: 220, type: 's3' },
{ time: '2019-04', value: 300, type: 's3' },
{ time: '2019-05', value: 250, type: 's3' },
{ time: '2019-06', value: 220, type: 's3' },
{ time: '2019-07', value: 362, type: 's3' },
];

const lineData = [
{ time: '2019-03', count: 350, type: 's4' },
{ time: '2019-04', count: 900, type: 's4' },
{ time: '2019-05', count: 300, type: 's4' },
{ time: '2019-06', count: 450, type: 's4' },
{ time: '2019-07', count: 470, type: 's4' },
{ time: '2019-03', count: 220, type: 's5' },
{ time: '2019-04', count: 300, type: 's5' },
{ time: '2019-05', count: 250, type: 's5' },
{ time: '2019-06', count: 220, type: 's5' },
{ time: '2019-07', count: 362, type: 's5' },
];

const config = {
legend: {
custom: true,
position: 'right-top',
items: [
{
value: 's1',
id: 's1',
name: 's1',
marker: { symbol: 'square', style: { fill: '#5B8FF9', r: 5 } },
},
{
value: 's2',
name: 's2',
marker: { symbol: 'square', style: { fill: '#5D7092', r: 5 } },
},
{
value: 's3',
name: 's3',
marker: { symbol: 'hyphen', style: { stroke: '#5AD8A6', r: 5 } },
},
{
value: 's4',
name: 's4',
marker: { symbol: 'hyphen', style: { stroke: '#5AD8A6', r: 5 } },
},
{
value: 's5',
name: 's5',
marker: { symbol: 'hyphen', style: { stroke: '#5AD8A6', r: 5 } },
},
],
},
xField: 'time',
yField: ['value', 'count'],
xAxis: {
label: {
style: {
fill: '#000',
fontSize: 12,
},
},
line: {
style: { stroke: '#0C4796' },
},
},
yAxis: [
// y轴的最值需要指定一下,保证左右轴的比例是一致的
{ min: 0, max: 2000, tickCount: 5, label: { style: { fill: '#fff' } } },
{ visible: false, min: 0, max: 2000, tickCount: 5, label: { style: { fill: '#fff' } } },
],
tooltip: {
crosshairs: {
textBackground: { style: { fill: 'red' } },
},
},
geometryOptions: [
{
geometry: 'column',
isStack: true,
seriesField: 'type',
areaStyle: {
fill: 'red',
},
},
{
geometry: 'line',
isStack: true,
color: ['#f00', '#00f'],
seriesField: 'type',
smooth: true,
},
],
};

const chart = new PlotC('container', {
data: [columnData, lineData],
...config,
});
chart.render();
```
图例功能消失了
### 🏞 Expected result
图例功能正常使用

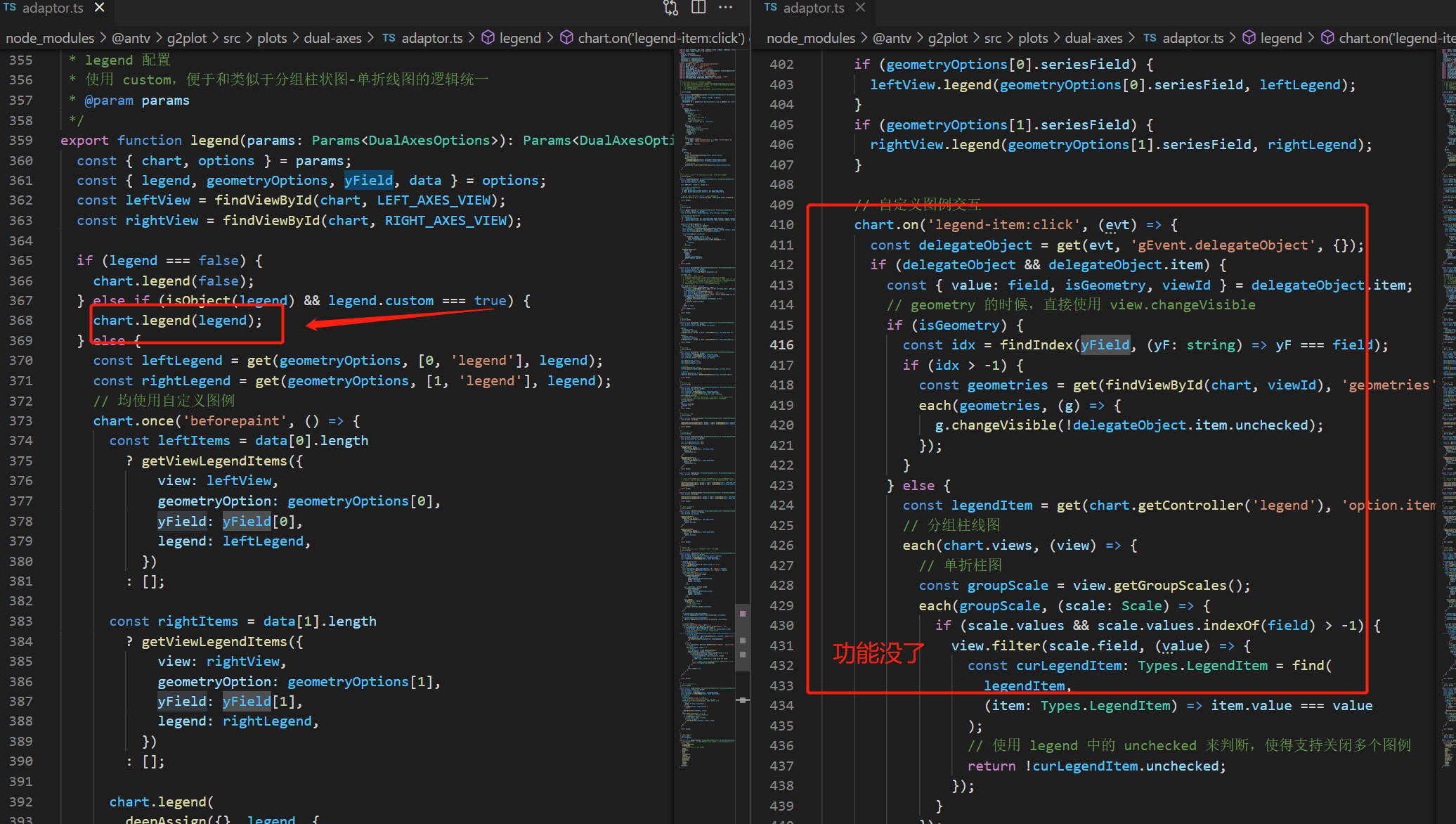

### 🚑 Any additional [like screenshots]
![image](https://user-images.githubusercontent.com/29876424/139029902-1246edf4-7a79-4b18-ba96-556d589aedc2.png)

* **G2Plot Version**: latest
* **Platform**: win
