## Issue Description

As we know , NodeSelectorSlot will create the invocation tree when there is no DefaultNode founding at current contextname .
I have one scenario which is confliced with this rule. I have one resource having more than one invocation tree in the same conextname ,
for example the invocation tree suppsoing to be as below
ControllerA -> resource A [url maybe /controllerA] ,
ControllerB-> resource A [url maybe /controllerB] ,

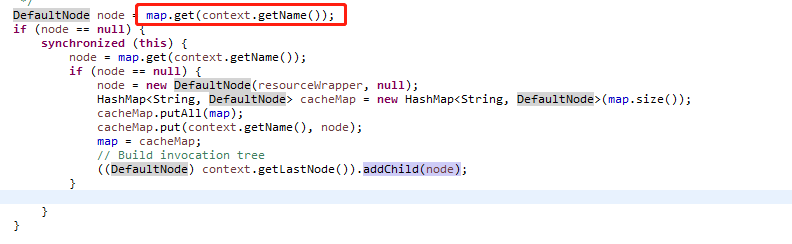

As the two urls have the same contextname , according to belwo code in NodeSelectorSlot , resourceA will be add to invocation tree for the first request only .
![image](https://user-images.githubusercontent.com/25001207/121184033-40571d80-c897-11eb-8742-8993efe3cdfc.png)

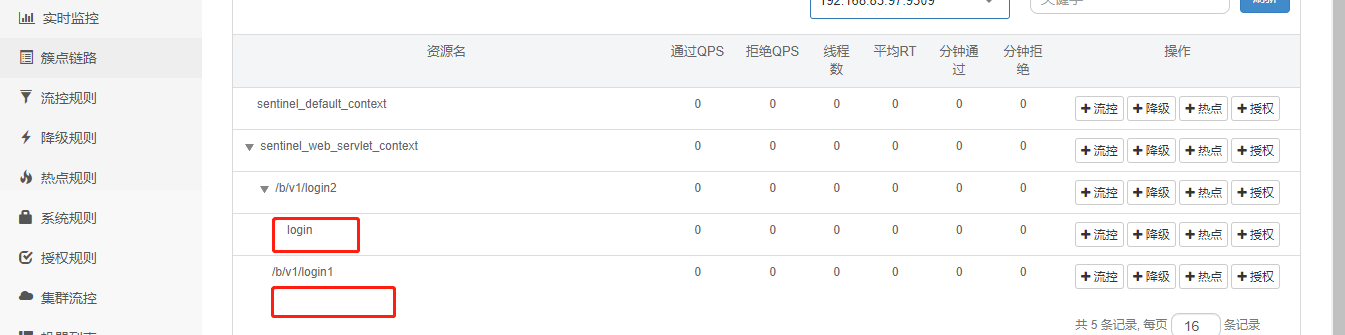

And I tested it , I could only found resouce A in one invocation tree in the sentinel dashboard
![image](https://user-images.githubusercontent.com/25001207/121184970-2ec24580-c898-11eb-8286-ccbdaba8837d.png)

### Describe what happened (or what feature you want)

I am not sure if my scenario or the usage is not correct , I just think if the resource A should be in the both two invocation trees instead of only the first request invocation tree

### Describe what you expected to happen
I think resource A should be in all the invocation trees which has referece to it.

### How to reproduce it (as minimally and precisely as possible)
actually I just use a springboot application , same service(resourceA) requested with two different controllers .resourceA will only show int one invocation tree ,

### Tell us your environment
my sentinel version is 1.7 , and I checked there is no difference between 1.7 and master code .

### Anything else we need to know?
