Bare identifier appears alone on line before (constant?) assignment (HLIL and Pseudo-C)

Open
#4,108 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

Component: Core Core: HLIL Effort: Trivial Impact: Low LanguageRep: Pseudo-C
Dominant language
C++
Stars
1.3k
Forks
298
Avg merge
5d 5h
Merged PRs (30d)
19

Description

Version (required):

  • Binary Ninja Version: 3.4.4144-dev

Bug Description:
From @zino on public slack (link to thread below):

"I've been seeing these double statement now and then, first just stating a data variable and then on the next line setting it. Not a problem but it looks funny every time it happens."

(See screenshots.)

Steps To Reproduce:
Please provide all steps required to reproduce the behavior:

  1. wget https://paste.c-net.org/SmarterTwins -O AmLite.tar.gz
  2. tar xzf AmLite.tar.gz
  3. binaryninja AmLite
  4. go to 0x20cad3d
  5. View HLIL or Pseudo-C
  6. Observe issue: bare identifier appears on its own line before assignment on the next.

Expected Behavior:
Expect not to see the lines with just the bare identifier.

Screenshots:
LLIL -> Pseudo-C:

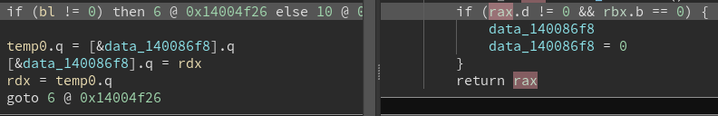

LLIL -> HLIL:

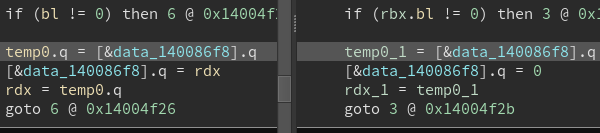

LLIL -> MLIL:

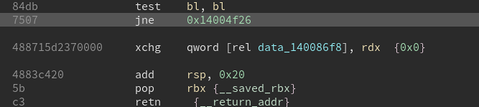

Assembly:

Additional Information:
Posting this issue for @zino on the public slack in this thread: https://binaryninja.slack.com/archives/C0CVALTLN/p1678746976324619

My (unsubstantiated) speculation from that thread:

Ok I suspect this is a combination of

  1. temp reg being used for the swap (is this from an x86 xchg instruction?)
  2. constant propagation of a 0 from that data var
