__gconv_step is wrong in x86_64 libc type library

Open
#2,764 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

Component: Type Libraries Effort: Trivial Impact: Low
Dominant language
C++
Stars
1.3k
Forks
298
Avg merge
5d 5h
Merged PRs (30d)
19

Description

Binary Ninja Version
2.4

Describe the bug
the structure __gconv_step is misdefined in the libc typelibrary for x86_64.

This is likely due to a DWARF parsing bug.

To Reproduce

>>> Platform['linux-x86_64'].get_type_libraries_by_name('libc_x86_64.so.6')[0].get_named_type('__gconv_step').members
[<void* __shlib_handle, offset 0x0>, <char const* __modname, offset 0x8>, <int32_t __counter, offset 0x10>, <char* __from_name, offset 0x18>, <char* __to_name, offset 0x20>, <__gconv_fct __fct, offset 0x28>, <void __fct, offset 0x28>, <void __fct, offset 0x28>, <__gconv_btowc_fct __btowc_fct, offset 0x30>, <__gconv_init_fct __init_fct, offset 0x38>, <__gconv_end_fct __end_fct, offset 0x40>, <int32_t __min_needed_from, offset 0x48>, <int32_t __max_needed_from, offset 0x4c>, <int32_t __min_needed_to, offset 0x50>, <int32_t __max_needed_to, offset 0x54>, <int32_t __stateful, offset 0x58>, <void* __data, offset 0x60>]

Expected behavior
The two void types at offset 0x28 shouldn't exist.

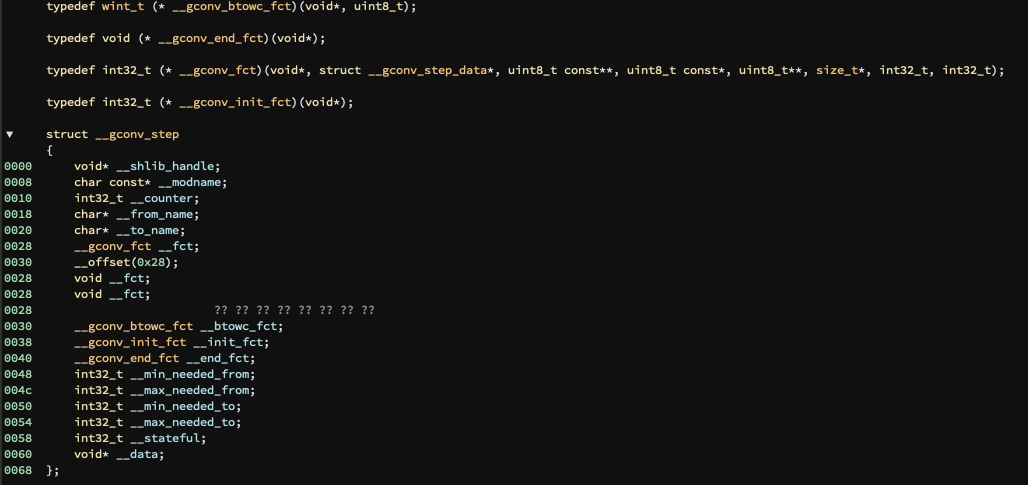

Screenshots


Workaround

with Type.builder(bv, '__gconv_step') as s:
  s.remove(6)
  s.remove(7)
