set_int_display_type doesn't work with tokens as expected

Open
#2,723 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

Assessment

Difficulty
3/5
Estimated time
1-2 days
Newbie friendliness
35/100
Issue type
Bug
Clarity
Mostly clear
Activity status
Stale
Tech stack
cpp, python
Domain
reverse-engineering

Research direction

Start with the set_int_display_type API and InstructionTextToken operand property, using the linked true.txt reproduction and the provided Python snippet. Compare token.operand with the operand accepted by set_int_display_type; done means the integer display type is set correctly when the token's operand is passed, matching the expected behavior.

Written by the indexing model from the issue text.

Description

Component: API Effort: Low Impact: Low

Binary Ninja Version
2.4.3074-dev

Describe the bug
set_int_display_type's operand argument doesn't match with InstructionTextToken's operand property

To Reproduce
Steps to reproduce the behavior:

  1. Open true.txt
  2. Run
token = current_function.basic_blocks[0][5][0][-1]
print(f"{token=} {token.type=} {token.operand=}")
current_function.set_int_display_type(0x215d, token.value, token.operand, IntegerDisplayType.UnsignedOctalDisplayType)

Expected behavior
The integer display type should be set properly

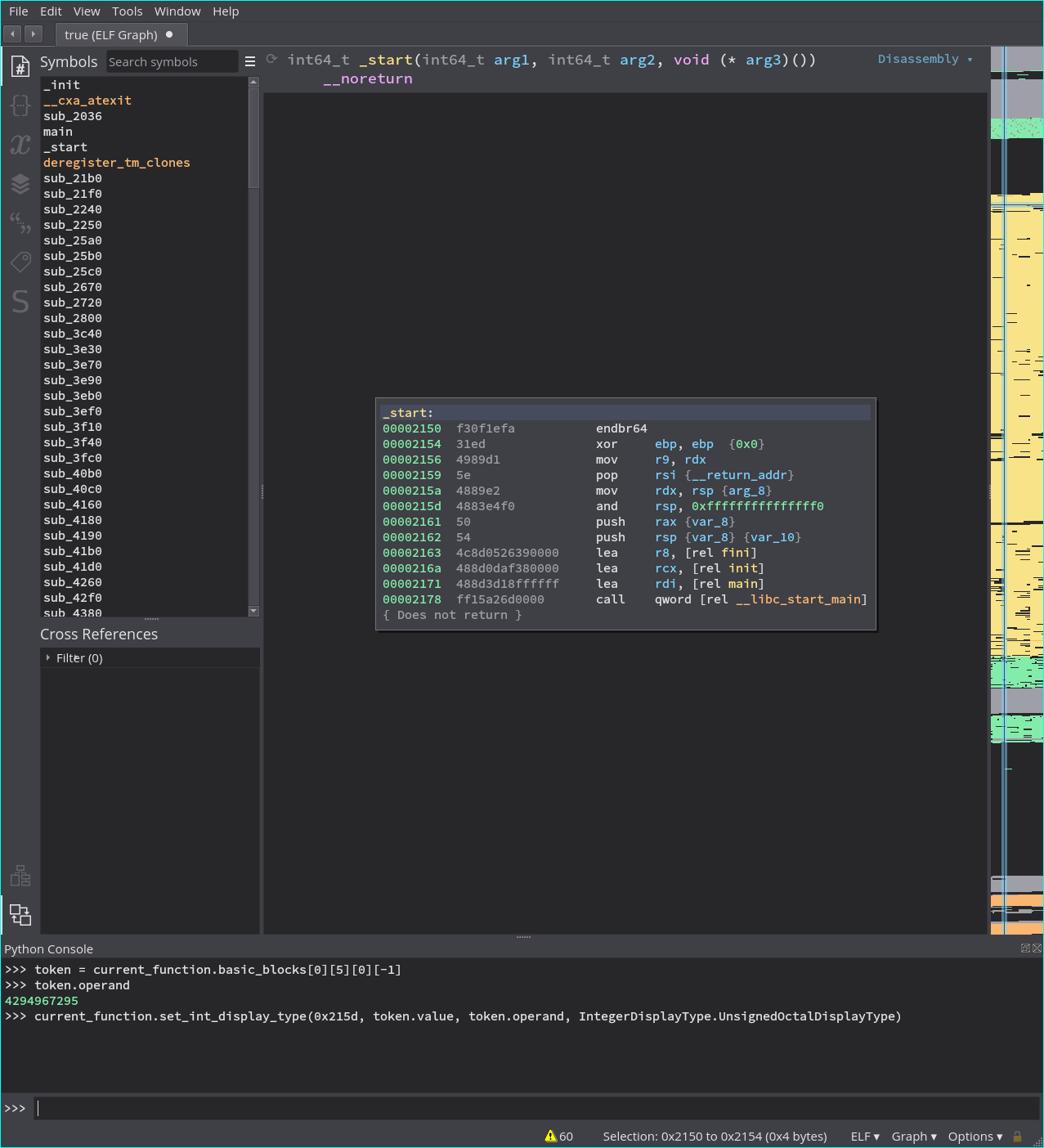

Screenshots
This doesn't work:

This works though:

Version and Platform (required):

  • Binary Ninja: 2.4.3074-dev
