Description
To Reproduce
Steps to reproduce the behavior:
- Use
File: Focus on Outlineto focus the outline - Navigate with the arrowkeys to any element
- jump to it via ENTER
- VSCodeVim will have crashed (none of the bindings work anymore, e.g. j/k). The devtools show the following error:
ERR Converting circular structure to JSON: TypeError: Converting circular structure to JSON
at JSON.stringify (<anonymous>)
at Function.e.serializeReplyOK (file:///usr/lib/code/out/vs/workbench/workbench.main.js:3240:532)
at file:///usr/lib/code/out/vs/workbench/workbench.main.js:3234:276
at n.Class.derive._creator.then (file:///usr/lib/code/out/vs/workbench/workbench.main.js:161:366)
at e._receiveRequest (file:///usr/lib/code/out/vs/workbench/workbench.main.js:3234:176)
at e._receiveOneMessage (file:///usr/lib/code/out/vs/workbench/workbench.main.js:3233:270)
at file:///usr/lib/code/out/vs/workbench/workbench.main.js:3232:74
at e.fire (file:///usr/lib/code/out/vs/workbench/workbench.main.js:175:76)
at a (file:///usr/lib/code/out/vs/workbench/workbench.main.js:311:740)
at Socket.n._socketDataListener (file:///usr/lib/code/out/vs/workbench/workbench.main.js:311:959)
at emitOne (events.js:116:13)
at Socket.emit (events.js:211:7)
at addChunk (_stream_readable.js:263:12)
at readableAddChunk (_stream_readable.js:250:11)
at Socket.Readable.push (_stream_readable.js:208:10)
at Pipe.onread (net.js:594:20)
errors.ts:48 WARNING: Promise with no error callback:157
errors.ts:49 {exception: TypeError: Converting circular structure to JSON
at JSON.stringify (<anonymous>)
at Function…, error: null, promise: n.C…s.d…e.supportedForProcessing, handler: undefined, id: 157, …}
errors.ts:51 TypeError: Converting circular structure to JSON
at JSON.stringify (<anonymous>)
at Function.e.serializeReplyOK (rpcProtocol.ts:592)
at rpcProtocol.ts:246
at n.Class.derive._creator.then (winjs.base.js:1587)
at e._receiveRequest (rpcProtocol.ts:241)
at e._receiveOneMessage (rpcProtocol.ts:186)
at rpcProtocol.ts:115
at e.fire (event.ts:140)
at a (ipc.net.ts:106)
at Socket.n._socketDataListener (ipc.net.ts:135)
at emitOne (events.js:116)
at Socket.emit (events.js:211)
at addChunk (_stream_readable.js:263)
at readableAddChunk (_stream_readable.js:250)
at Socket.Readable.push (_stream_readable.js:208)
at Pipe.onread (net.js:594)

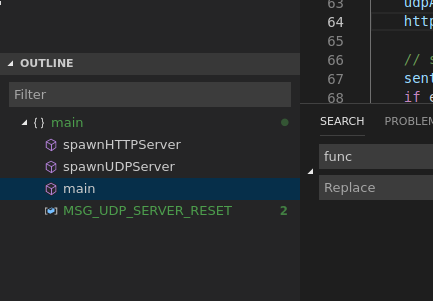

Screenshots

Environment
- Extension Name: vim
- Extension Version: 0.16.12
- OS Version: Linux x64 4.18.16-arch1-1-ARCH
- VSCode version: 1.27.2
