Description

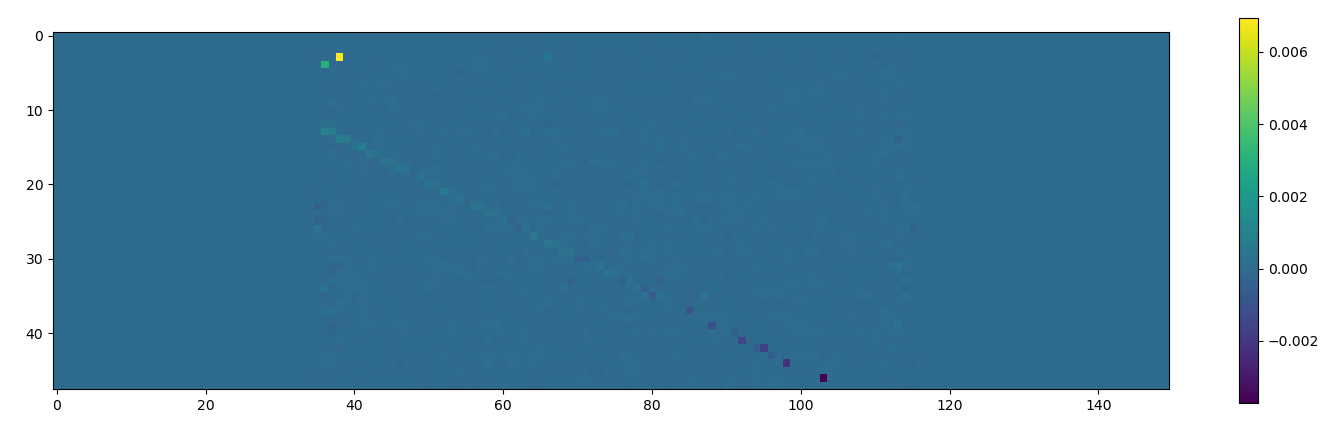

When projecting a cylinder on a BlocksOnCylindrical scanner and comparing the first 90° of the sinogram with the next 90°, then there appears a thin diagonal artifact with approximately 0.1% of the amplitude of the projection data entries.
Code to reproduce:
blah = stir.ProjDataInMemory.read_from_file("scatter_tests/full_size_sino.hs")
bla = stirextra.to_numpy(blah.get_segment_by_sinogram(0))
diff = bla[15,:48,:] - bla[15,48:,:]
plt.figure()
plt.imshow(diff)
plt.colorbar()
where full_size_sino.hs can be created using the InterpolationTests::scatter_interpolation_test_blocks() test in test_interpolate_scatter.cxx by adding a forward projection on the full size scanner definition.
Contributor guide
First steps
- Read the whole issue, then the project's contributing guide.
- Comment on the issue to say you are picking it up — it saves two people doing the same work.
- Fork the repository and make your change on a branch.
- Open a pull request that references the issue number.
Research direction
Start with the InterpolationTests::scatter_interpolation_test_blocks() test in test_interpolate_scatter.cxx and reproduce the full-size sinogram described in the issue. Use the supplied Python comparison of segment 0 to inspect the diagonal artifact and determine its source. Done means the first and next 90° portions no longer show the reported discrepancy, with the relevant test still passing.
