npoints does not work correctly for greatCircle for anti-meridian cases

Open
#2,226 1 comment 2 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

@turf/great-circle antimeridian
Dominant language
TypeScript
Stars
10.5k
Forks
1k
Avg merge
1h 11m
Merged PRs (30d)
4

Description

Hi,

We are on v6.5.0. In order to improve performance we limit the no of points we want drawn in greatCircle using the "npoints" optional parameter. We observe it to not be working correctly for when line crosses the anti-meridian.

fyi - the coordinates specified below cross anti-meridian
Without "npoints" -

const fromLat = -33.868801, fromLng = 151.209305
const toLat = 34.052235, toLng = -118.243683

const feature = turf.greatCircle([fromLng, fromLat], [toLng, toLat])

We observe that "MultiLineString" is returned and line is plot correctly.

With "npoints" -

const MAX_POINTS_PER_LINE = 20
const fromLat = -33.868801, fromLng = 151.209305
const toLat = 34.052235, toLng = -118.243683

const feature = turf.greatCircle([fromLng, fromLat], [toLng, toLat], {
  npoints: MAX_POINTS_PER_LINE,
})

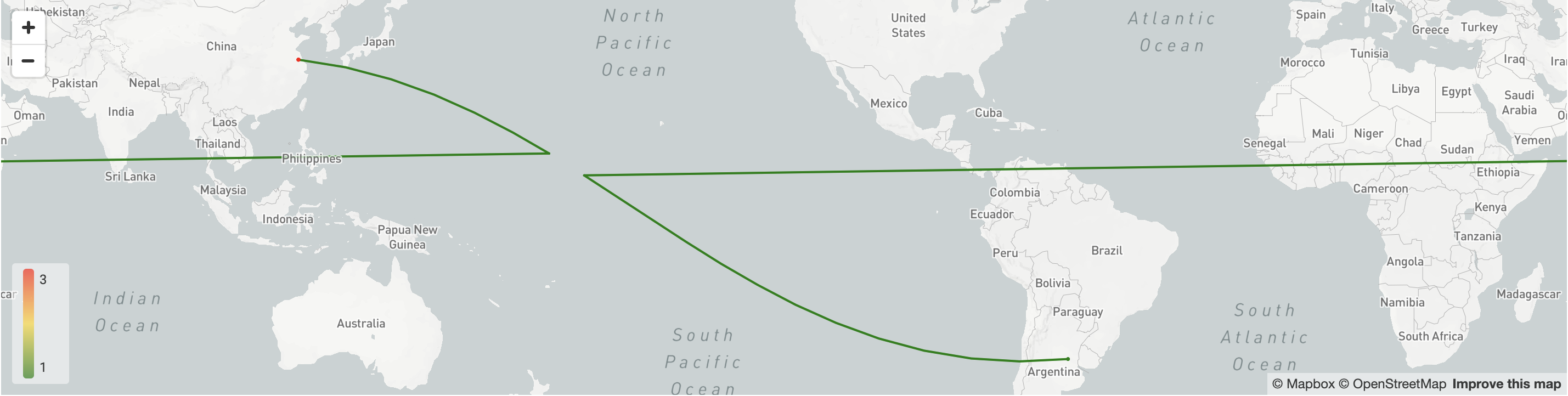

We observe that feature gets converted to LineString and the line goes around the globe instead.

JSFiddle - https://jsfiddle.net/sakshibhasin96/14f0ot76/

It is observed that without the limit on no of points, the MultiLineString takes 31 and 71 points respectively to plot from "from" coordinate to -180/180 and to plot from -180/180 to "to" coordinate. (Please check jsfiddle)

It seems the issue here is that instead of applying "npoints" to each LineString constituting the MultiLineString, it is instead converting the MultiLineString to LineString which is not the expected behaviour.

Thank you for your time.
