lineSplit returns line segments in an unexpected order

Open
#1,989 2 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

@turf/line-split
Dominant language
TypeScript
Stars
10.5k
Forks
1k
Avg merge
1h 11m
Merged PRs (30d)
4

Description

I split a LineString with a Polygon and the resulting Features were returned in an odd order. I don't see that lineSplit actually makes any promise regarding the order of the returned line segments, but without that order it becomes a lot more complicated to determine which segments are inside the polygon and which are outside. I have seen other people write code that assumes the segments returned by lineSplit are ordered, for example https://bl.ocks.org/rveciana/e0565ca3bfcebedb12bbc2d4edb9b6b3

Link to gist demonstrating the issue: https://gist.github.com/wiseman/5e6769cad94e3df318ca3aa00f736b7c

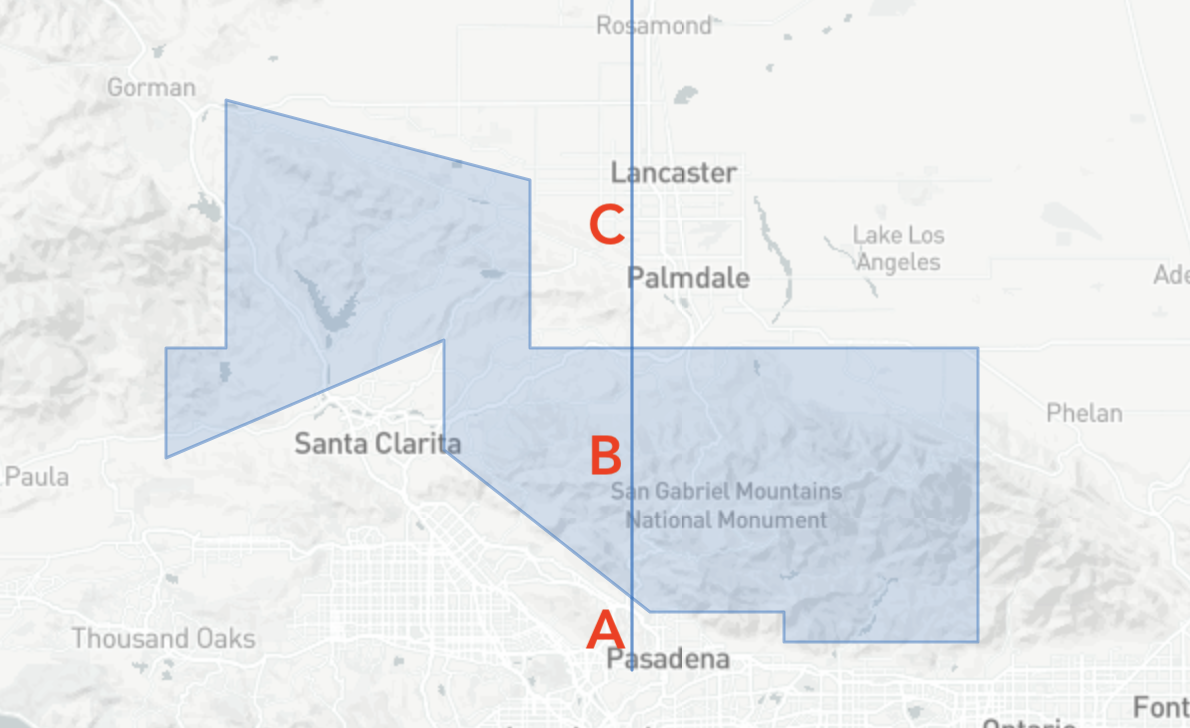

Screen Shot 2020-12-24 at 10 48 08 AM

In that gist, the first feature is the line that I split. It's a line that runs from south to north. The second feature is the polygon I used to split the line. The rest of the features are the features that lineSplit returned, in order.

lineSplit correctly split the line into 3 segments: A segment (A) that is outside and south of the polygon; A segment (B) that is inside the polygon; A segment (C) that is outside and north of the polygon.

The unexpected behavior is that those 3 segments are returned in the order [C, A, B].

I had been trying to use the simple method from @rveciana's code, referenced above, to determine which line segments are in the polygon, but without a consistent ordering that method doesn't work.

(Just as background, the problem I'm solving is figuring out when an aircraft will transition into and out of various airspaces. That polygon is part of the Burbank, California class E5 airspace.)
