（RT-Thread串口设备驱动相关问题，问题可见说明）MCU为OK1052的设备驱动层串口配置函数中，需要重新打开串口中断并配置优先级，才能使串口正常接收数据
Nobody has claimed this yet.
- Dominant language
- C
- Stars
- 12.2k
- Forks
- 5.4k
- Avg merge
- 4d 12h
- Merged PRs (30d)
- 40
Description
1.问题起因

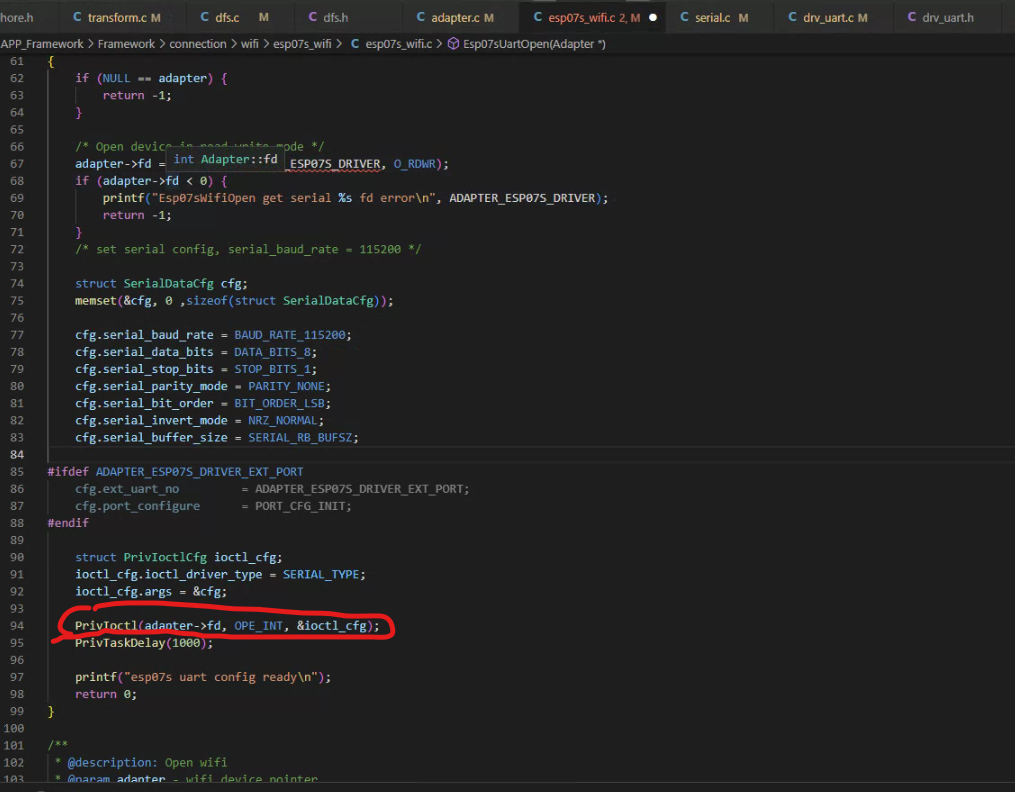

外设调用PrivIoctl(adapter->fd, OPE_INT, &ioctl_cfg) （函数见下图第94行），该函数为串口配置函数，但发现只有将该函数注释掉之后串口接收才正常，否则接收不到数据
2.解决方案（添加如下图630-635行所示解决问题代码，即重新使能中断，重新配置优先级分组）

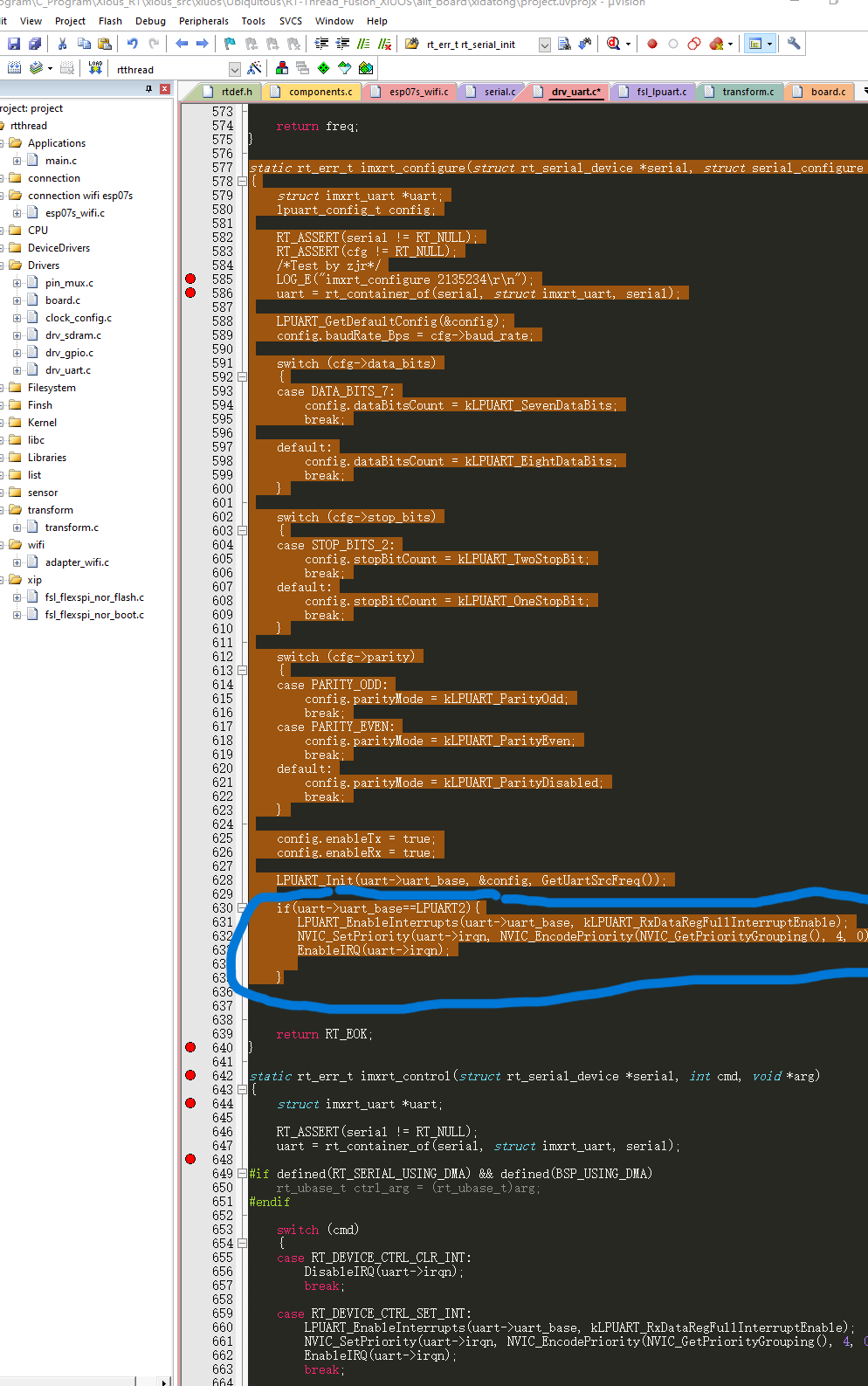

设备驱动层串口configure配置处理函数如下图所示（630-635行为后期添加最终解决问题）
3.疑问
RT-Thread在板级初始化的时候已经配置了串口，并且使能了串口中断，设置了中断优先级分组，但为什么再重新配置串口后，仍然要再重新使能中断，配置优先级分组才能解决问题？
