Hollweg dispersion solver failing in 90 degree limit

Open
#1,470 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

bug plasmapy.dispersion
Dominant language
Python
Stars
711
Forks
375
Avg merge
3h 2m
Merged PRs (30d)
8

Description

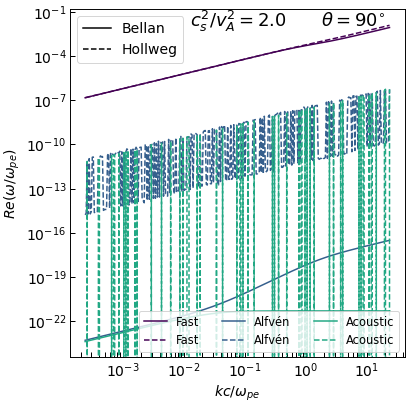

When plotting values for the Hollweg dispersion solver with theta equals 90 degrees, the alfven and acoustic wave modes have unexpected results. The imports and inputs for the hollweg() function are listed. A screenshot of the plot is included below.

The computed wave frequencies are small in this limit and a cause of the resulting plot may be floating point errors.

import astropy.units as u
import matplotlib.pyplot as plt
import numpy as np
import warnings

from astropy.constants.si import c
from matplotlib.ticker import MultipleLocator

from plasmapy.dispersion.analytical.two_fluid_ import two_fluid
from plasmapy.dispersion.numerical.hollweg_ import hollweg
from plasmapy.formulary import parameters as pfp
from plasmapy.particles import Particle

inputs = {
    "k": np.logspace(-7, -2, 300) * u.rad / u.m,
    "theta": 90 * u.deg,
    "n_i": 5 * u.cm ** -3,
    "B": 1.10232e-8 * u.T,
    "T_e": 1.6e6 * u.K,
    "T_i": 4.0e5 * u.K,
    "ion": Particle("p+"),
}
