Issue overview
We are modeling a multisplit system as a single AirConditioner:VariableRefrigerantFlow with a single ZoneHVAC:TerminalUnit:VariableRefrigerantFlow per zone and comparing it to a ZoneHVAC:PackagedTerminalHeatPump in a 5-story multifamily building.
We are surprised that the PTHP is outperforming the VRF, especially on fan power. The VRF has the same fan static, and efficiencies as the PTHP and the cooling capacities are close as well. The VRF coil's rated efficiencies are slightly lower.

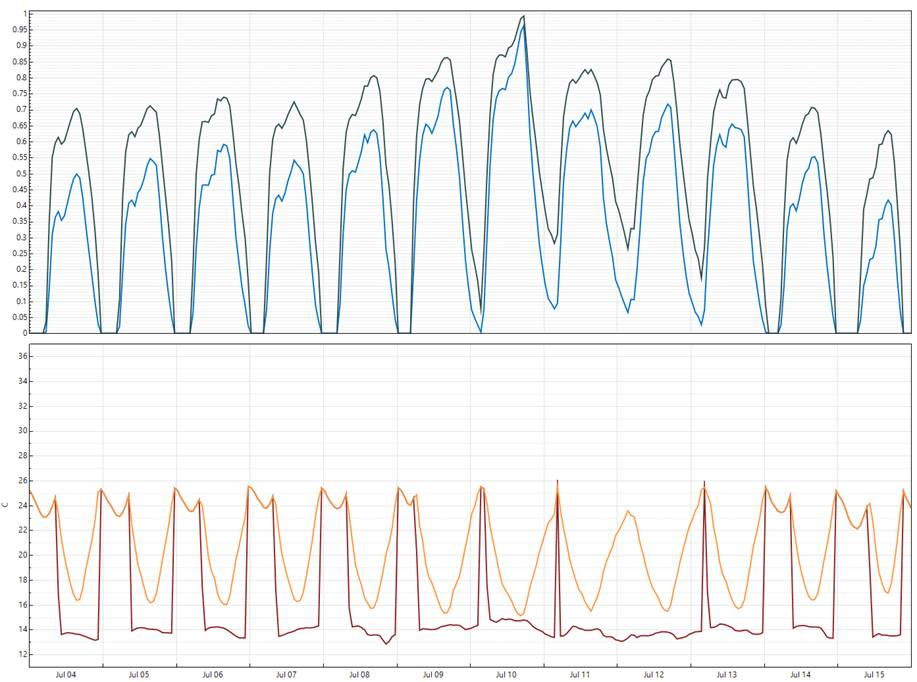

Here are some relevant graphics: fan runtime and supply air temperature. The top line is the VRF. It looks like the VRF is choosing to run the fan longer at higher supply air temperatures, maybe minimizing the cooling energy where it might be better to minimize fan energy.
Details
- EnergyPlus Version 9.4
- Windows 10
- 64-bit
