SQL 'Time' table: 'Interval' is empty when reporting frequency is 'Annual'

Issue overview

Time: "Interval" is empty when reporting frequency is "Annual"

This is 1ZoneUncontrolled, with slight modifications to add the sqlite output and a bunch of output variables (cf https://github.com/NREL/OpenStudio/tree/develop/resources/utilities/SqlFile)

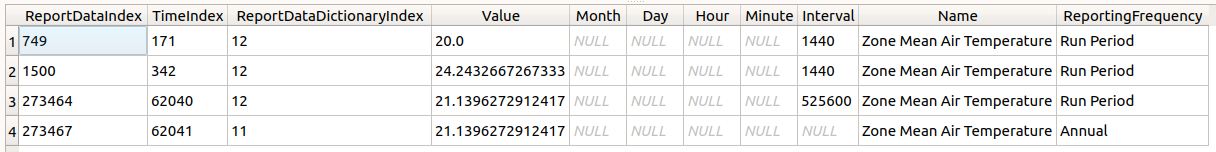

SELECT ReportDataIndex, TimeIndex, ReportDataDictionaryIndex, Value, Month, Day, Hour, Minute, Interval, Name, ReportingFrequency From ReportVariableWithTime
WHERE ReportingFrequency = "Annual" OR ReportingFrequency = "Run Period"
AND Name="Zone Mean Air Temperature"

This isn't new, but still it the case up to 9.3.0 official. It goes back to 8.9.0 (where Annual was added/differentiated from Run Period or something like that)

Details

Some additional details for this issue (if relevant):

• Platform (Operating system, version): All
• Version of EnergyPlus (if using an intermediate build, include SHA): 9.3.0

Checklist

Add to this list or remove from it as applicable. This is a simple templated set of guidelines.

• Defect file added (list location of defect file here): https://github.com/NREL/EnergyPlusDevSupport/blob/3a70b68e1b09708d67b30a65b3d6112092020a6d/DefectFiles/7000s/7939/1ZoneEvapCooler-V9-3-0.idf
• Ticket added to Pivotal for defect (development team task)
• Pull request created (the pull request will have additional tasks related to reviewing changes that fix this defect)

Start with the defect file DefectFiles/7000s/7939/1ZoneEvapCooler-V9-3-0.idf and reproduce the provided ReportVariableWithTime query against the SQLite output. Trace how Annual and Run Period records populate the Time table's Interval field, using the 1ZoneUncontrolled modifications and SqlFile resources as context. Done means Annual records report the expected Interval value without regressing Run Period output.
