Description

After reducing the code to the smallest I could I'm seeing something a tad different.

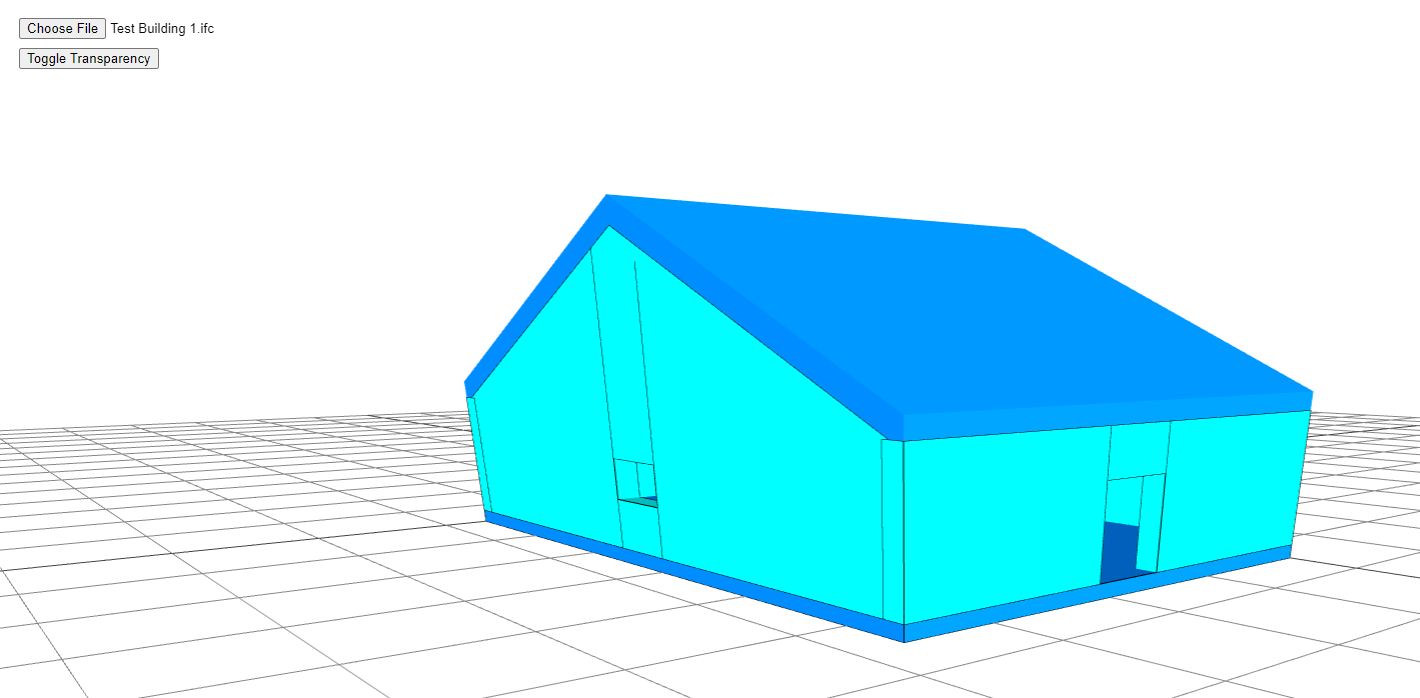

On initial load:
![image](https://user-images.githubusercontent.com/3442848/194871229-beb101b0-a803-4de6-9ea9-d884b07b22c5.png)

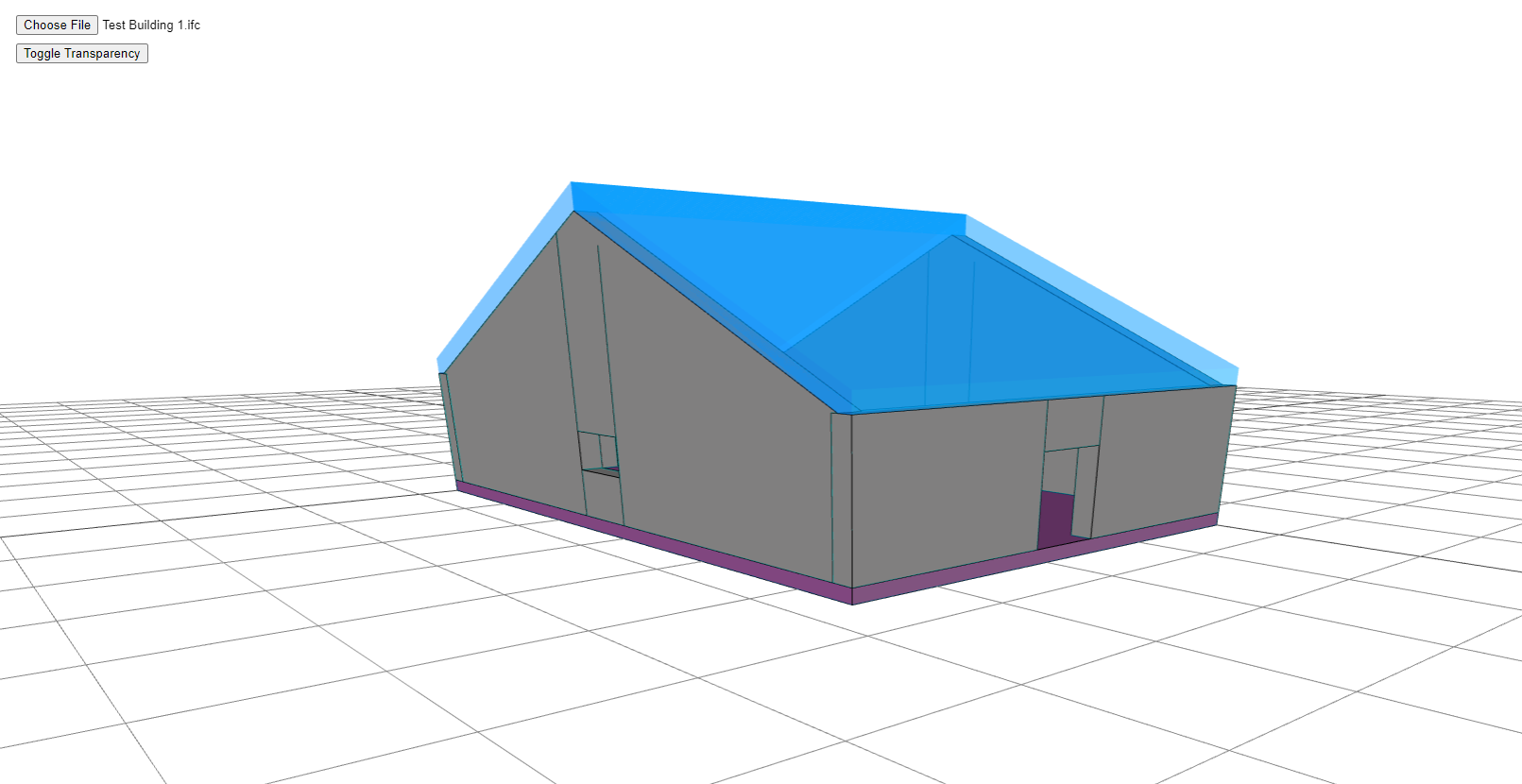

When I toggle transparency, the elements in the `everything_else` subset get set to transparent, but the wireframed elements are not transparent and turn a different color.
![image](https://user-images.githubusercontent.com/3442848/194871431-2ba45ce3-c7f2-4cfa-8a4d-f75d946df103.png)

If you look in `ifc.service.ts`, I'm trying to:
1. Get all the express ids in the model
2. Get all the ids of stuff I want to wireframe (declared in `wireframe-elements.ts`)
3. Create a subset of wireframe elements
4. Create a subset of everything else

I'm not sure if this is the underlying problem, but one thing I noticed when debugging using the `/src/app/assets/simple.ifc` file is that my `getIdsFromSubset()` seems to return a different set of IDs than `getWireframeElements()`. I'd expect that the ids in tue wireframe set would exist in the "all" ids collection, so maybe I'm not finding all ids correctly?
![image](https://user-images.githubusercontent.com/3442848/194873024-38b3aeb9-d0a5-49eb-8741-d0cb866dfd19.png)
