DoubleArrow Incorrect behaviour in 3D

Open
#2,261 1 comment 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

issue:bug
Dominant language
Python
Stars
40.9k
Forks
3.1k
Avg merge
3d 12h
Merged PRs (30d)
25

Description

## Description of bug / unexpected behavior

A double arrow in the z axis generates a tip pointing in an orthogonal direction

## Expected behavior

Both tips of the arrow should be collinear.

## How to reproduce the issue

Code for reproducing the problem

```py
class TestArrows3D(ThreeDScene):
def construct(self):
self.set_camera_orientation(phi = 70 * DEGREES, theta = -45 * DEGREES,
zoom = 2)
h = 0.5 + 0.1
Lx = DoubleArrow([-0.5,- h ,- 0.5], [0.5,- h ,- 0.5])
Ly = DoubleArrow([h ,- 0.5,- 0.5], [h , 0.5,- 0.5])
# The next double arrow has a wrong tip
Lz = DoubleArrow([0.5 ,h ,- 0.5], [0.5, h , 0.5], color = RED)
self.add(Cube(1), Lx, Ly, Lz)
```

## Additional media files

Images/GIFs

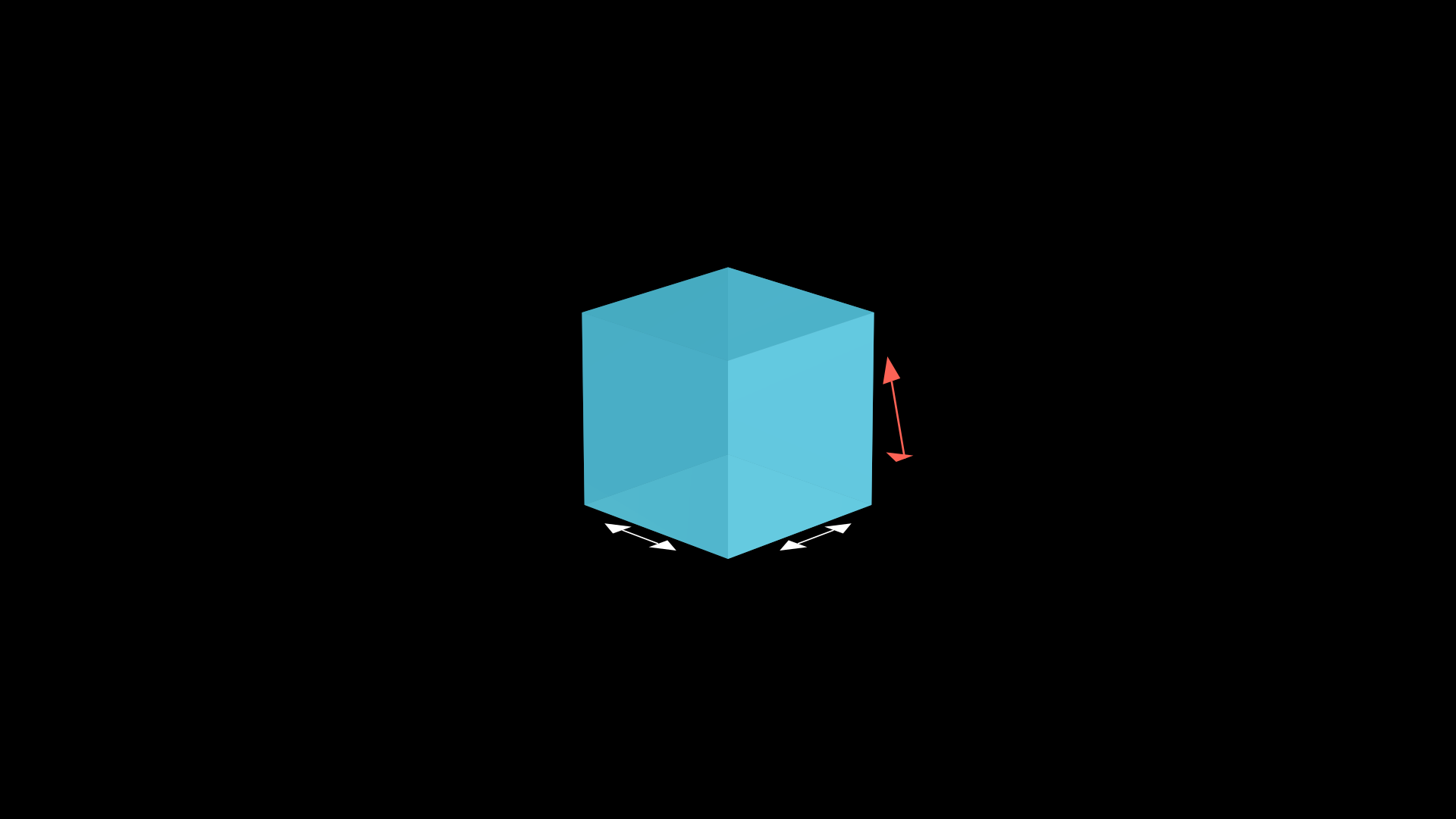

![TestArrows3D_ManimCE_v0 12 0](https://user-images.githubusercontent.com/66566775/140496836-13b27fdc-2102-4fff-8a79-8efb5944c4fa.png)
