Description

## Description of bug / unexpected behavior
When `leave_ghost_vectors=True` and "show_basis_vectors=False", vectors added to `LinearTransformationScene` will have strange ghosts.

## Expected behavior
No ghosts.

## How to reproduce the issue

```py
class VectorArrow(LinearTransformationScene):
def __init__(self, **kwargs):
LinearTransformationScene.__init__(
self,
leave_ghost_vectors=True,
show_basis_vectors=False
)

def construct(self):
self.add_vector(Arrow(ORIGIN, [1,2,0], stroke_width=2, tip_length=0.2, buff=0))
self.apply_matrix([[1,1],[0,1]])
```

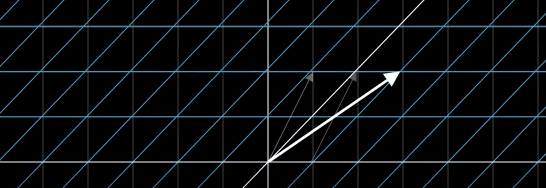

## Additional media files
Screen Shot 2021-09-06 at 16 20 16

Images/GIFs

## Logs
Terminal output

```
PASTE HERE OR PROVIDE LINK TO https://pastebin.com/ OR SIMILAR
```

## System specifications

System Details

- OS (with version, e.g Windows 10 v2004 or macOS 10.15 (Catalina)):
- RAM:
- Python version (`python/py/python3 --version`):
- Installed modules (provide output from `pip list`):
```
PASTE HERE
```

LaTeX details

+ LaTeX distribution (e.g. TeX Live 2020):
+ Installed LaTeX packages:

FFMPEG

Output of `ffmpeg -version`:

```
PASTE HERE
```

## Additional comments

Contributor guide

Open the contributing guide

First steps

  1. Read the whole issue, then the project's contributing guide.
  2. Comment on the issue to say you are picking it up — it saves two people doing the same work.
  3. Fork the repository and make your change on a branch.
  4. Open a pull request that references the issue number.

Research direction

Start with the LinearTransformationScene entry point and reproduce the example using leave_ghost_vectors=True, show_basis_vectors=False, add_vector, and apply_matrix. Trace how the vector and its ghost are created during the transformation; done means the reproduction renders without unintended ghost vectors.
