Unintuitive behaviour of parameter `light_source` in `ThreeDAxes`

Open
#1,945 2 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

issue:bug
Dominant language
Python
Stars
40.9k
Forks
3.1k
Avg merge
3d 12h
Merged PRs (30d)
25

Description

## Description of bug / unexpected behavior

When instantiating `ThreeDAxes` in a 3D scene, passing a new `light_source` to overwrite the default does not seem to have any effect whatsoever, neither does to directly assign to `axes.light_source` after instantiation.

Moving the light source from the default position can be achieved via `self.renderer.camera.light_source.move_to()`, as illustrated in an example in the docs. However, to enable the continuous animation of the light source shift, an updater on the `ThreeDAxes` instance is needed, linking `axes.light_source` to `self.renderer.camera.light_source`. Omitting the updater makes the change in 'lighting' abrupt.

## Expected behavior

I thought that the parameter `light_source` could be used to change the initial 'lighting' when instantiating `ThreeDAxes`. If the way to go about this is via `self.renderer.camera.light_source` that's fine, but then I would have thought that animating its movement would have been enough to change the 'lighting' smoothly, without updaters. Perhaps I haven't figured out the logic, but right now `light_source` is not a fully intuitive parameter to me.

## How to reproduce the issue

Code for reproducing the problem

```py
class ThreeDLightSourcePosition(ThreeDScene):
def construct(self):
axes = ThreeDAxes() # ThreeDAxes(light_source=3*UP) DOES NOT MOVE THE LIGHT SOURCE
axes_labels = axes.get_axis_labels()
self.set_camera_orientation(phi=60*DEGREES, theta=-30*DEGREES)

radius = 2.
sphere = ParametricSurface(
lambda u, v: np.array([
radius * np.cos(u) * np.cos(v),
radius * np.cos(u) * np.sin(v),
radius * np.sin(u)
]), v_range=[0, TAU],
u_range=[-PI / 2, PI / 2],
checkerboard_colors=[RED_D, RED_E],
resolution=(15, 32),
stroke_color=WHITE,
)
self.add(axes, axes_labels, sphere)

cam_light_source = self.renderer.camera.light_source
# WITHOUT THIS UPDATER THE CHANGE OF ILLUMINATION IS NOT CONTINUOUS
# def upd_func(mo):
# mo.light_source = np.array([cam_light_source.get_x(),
# cam_light_source.get_y(),
# cam_light_source.get_z()])
# axes.add_updater(upd_func)

cam_light_source.set_color(WHITE).move_to(3*UP) # axes.light_source = 3*UP DOES NOT MOVE THE LIGHT SOURCE
self.add(cam_light_source)
self.wait()
self.play(cam_light_source.animate.move_to(3*LEFT), run_time=2)
self.wait()
```

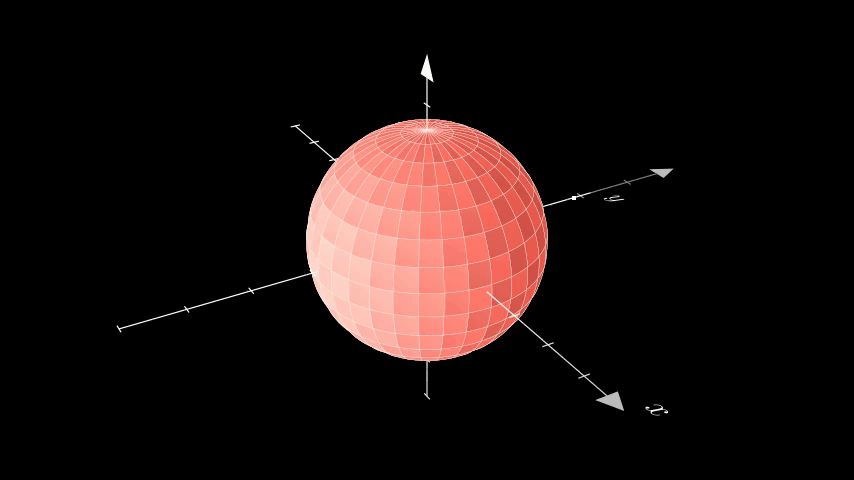

## Additional media files

Images/GIFs

![ThreeDLightSourcePosition_ManimCE_v0 9 0](https://user-images.githubusercontent.com/33786849/130357632-e45b1dba-17c5-458c-b331-bce0a9a6fef3.gif)

## Logs
Terminal output

```
PASTE HERE OR PROVIDE LINK TO https://pastebin.com/ OR SIMILAR
```

## System specifications

System Details

- OS (with version, e.g Windows 10 v2004 or macOS 10.15 (Catalina)): macOS 11.5.2 (Big Sur)
- RAM: 32GB
- Python version (`python/py/python3 --version`): 3.9.5
- Installed modules (provide output from `pip list`):
```
Package Version
---------------------- -------------------
certifi 2021.5.30
chardet 4.0.0
click 8.0.1
click-default-group 1.2.2
cloup 0.7.1
colorama 0.4.4
colour 0.1.5
commonmark 0.9.1
Cython 0.29.24
decorator 5.0.9
glcontext 2.3.4
idna 2.10
manim 0.9.0
ManimPango 0.3.0
mapbox-earcut 0.12.10
moderngl 5.6.4
moderngl-window 2.3.0
multipledispatch 0.6.0
networkx 2.5
numpy 1.20.3
Pillow 8.2.0
pip 21.1.2
pycairo 1.20.1
pydub 0.25.1
pyglet 1.5.17
Pygments 2.9.0
pyobjc-core 7.3
pyobjc-framework-Cocoa 7.3
pyrr 0.10.3
requests 2.25.1
rich 10.3.0
scipy 1.6.3
screeninfo 0.6.7
setuptools 52.0.0.post20210125
six 1.16.0
tqdm 4.61.1
urllib3 1.26.5
watchdog 2.1.2
wheel 0.36.2
```

LaTeX details

+ LaTeX distribution (e.g. TeX Live 2020):
+ Installed LaTeX packages:

FFMPEG

Output of `ffmpeg -version`:

```
ffmpeg version 4.4 Copyright (c) 2000-2021 the FFmpeg developers
built with Apple clang version 12.0.5 (clang-1205.0.22.9)
configuration: --prefix=/usr/local/Cellar/ffmpeg/4.4_2 --enable-shared --enable-pthreads --enable-version3 --cc=clang --host-cflags= --host-ldflags= --enable-ffplay --enable-gnutls --enable-gpl --enable-libaom --enable-libbluray --enable-libdav1d --enable-libmp3lame --enable-libopus --enable-librav1e --enable-librubberband --enable-libsnappy --enable-libsrt --enable-libtesseract --enable-libtheora --enable-libvidstab --enable-libvorbis --enable-libvpx --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libxvid --enable-lzma --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-libspeex --enable-libsoxr --enable-libzmq --enable-libzimg --disable-libjack --disable-indev=jack --enable-avresample --enable-videotoolbox
libavutil 56. 70.100 / 56. 70.100
libavcodec 58.134.100 / 58.134.100
libavformat 58. 76.100 / 58. 76.100
libavdevice 58. 13.100 / 58. 13.100
libavfilter 7.110.100 / 7.110.100
libavresample 4. 0. 0 / 4. 0. 0
libswscale 5. 9.100 / 5. 9.100
libswresample 3. 9.100 / 3. 9.100
libpostproc 55. 9.100 / 55. 9.100
```

## Additional comments
