Depth testing issue where it shouldn't happen

Open
#1,878 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

issue:bug opengl
Dominant language
Python
Stars
40.9k
Forks
3.1k
Avg merge
3d 12h
Merged PRs (30d)
25

Description

Description of bug / unexpected behavior

An OpenGLLine and an OpenGLSurface don't work together as they should even though depth_test=True is passed to both.

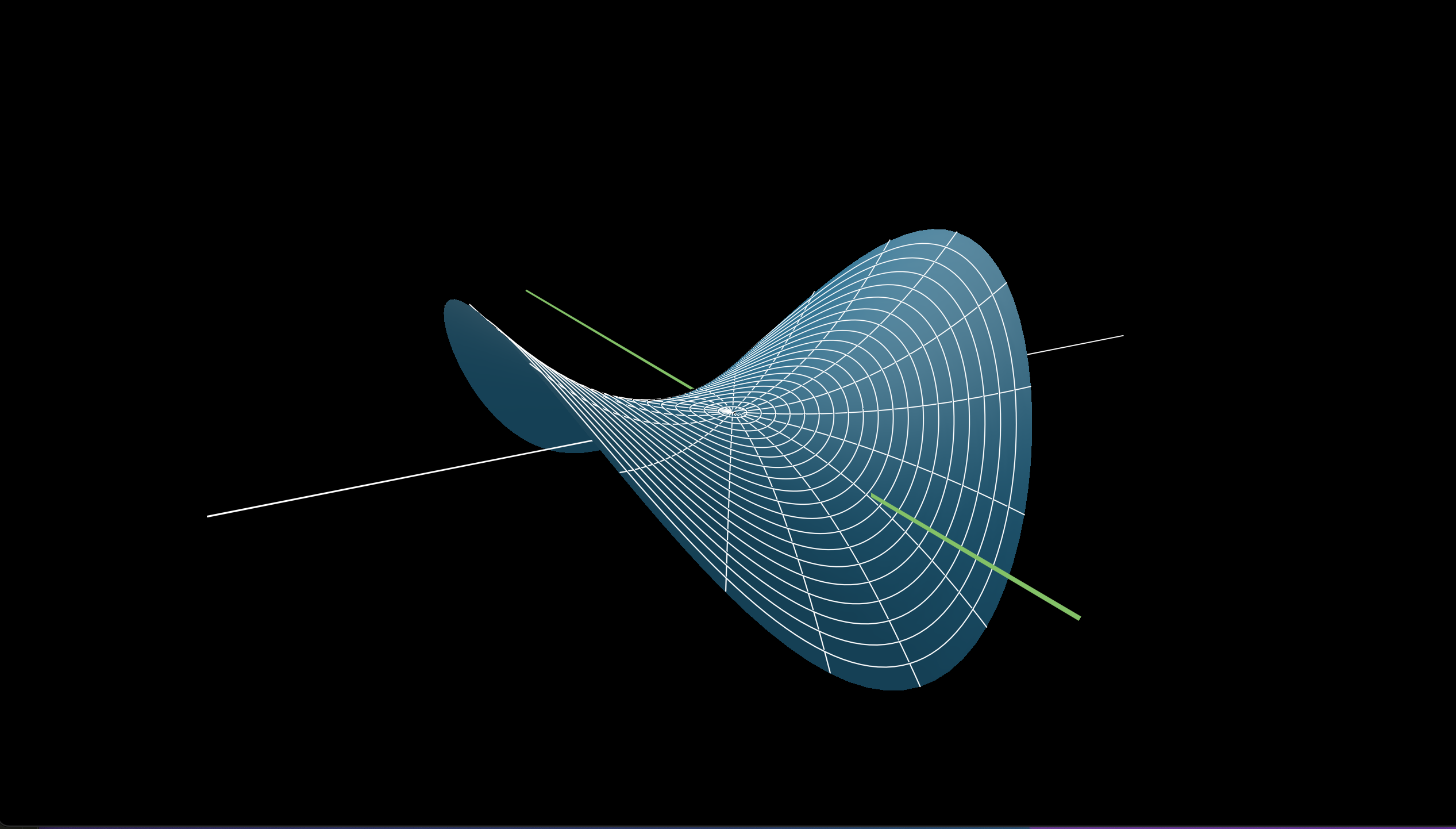

Bildschirmfoto 2021-08-07 um 11 52 07

Expected behavior

The green line in the example should be seen in total with the exception of the origin. When moving the camera around you can see other angles where the line is indeed completely above.

How to reproduce the issue

class SimpleSurface(Scene):
    def construct(self):
        frame = self.renderer.camera
        frame.set_euler_angles(theta=-30*DEGREES, phi=70*DEGREES)

        axes = ThreeDAxes()

        line = OpenGLLine(LEFT*5, RIGHT*5, depth_test=True)
        line2 = OpenGLLine(UP*5, DOWN*5, depth_test=True)#.shift(OUT*0.5)
        line2.set_stroke(color=GREEN, width=8)

        saddle = OpenGLSurface(
            lambda u,v: axes.c2p(
                u*np.cos(v),
                u*np.sin(v),
                0.2*u*u*np.cos(2*v)
            ),
            u_range=[0, 3],
            v_range=[0, 2*PI],
            color=BLUE_E,
            depth_test=True
        )

        saddle.mesh = OpenGLSurfaceMesh(saddle, depth_test=True)
        saddle.mesh.set_stroke(WHITE, 1, opacity=1)

        self.play(
            FadeIn(saddle),
            Create(saddle.mesh)
        )
        self.add(line, line2)
        self.interactive_embed()

System specifications
