OpenGLSVGMobject doesn't render like SVGMobject: Horizontal lines seem to have no stroke and black text is white.
- Dominant language
- Python
- Stars
- 40.9k
- Forks
- 3.1k
- Avg merge
- 3d 12h
- Merged PRs (30d)
- 25
Description
## Description of bug / unexpected behavior

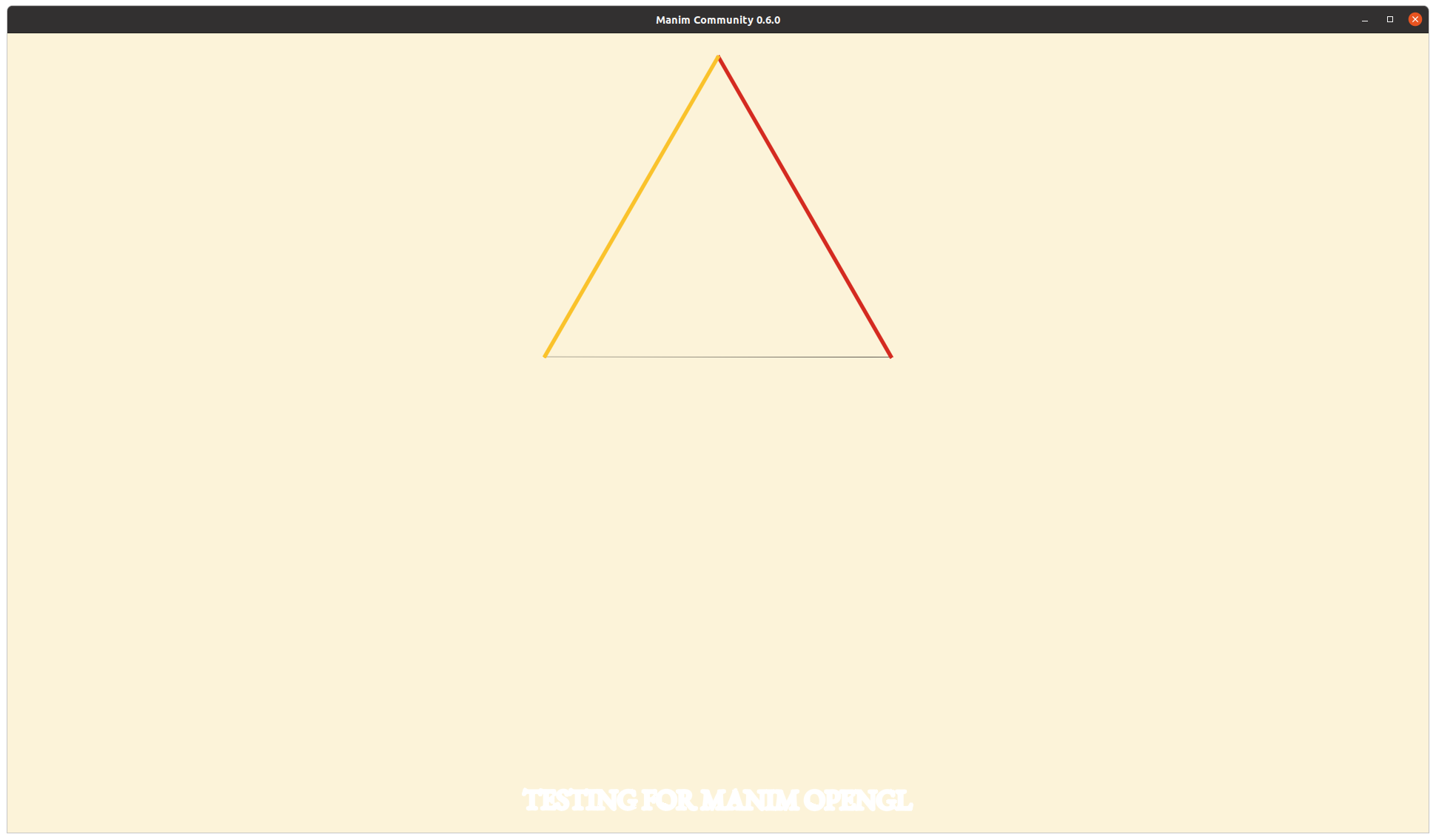

Here is a PNG of an opengl rendering of an SVG (for an image of the the original SVG see below):

Note that I am using v0.9.0 even though the PNG window shows v0.6.0 (see issue #1875).

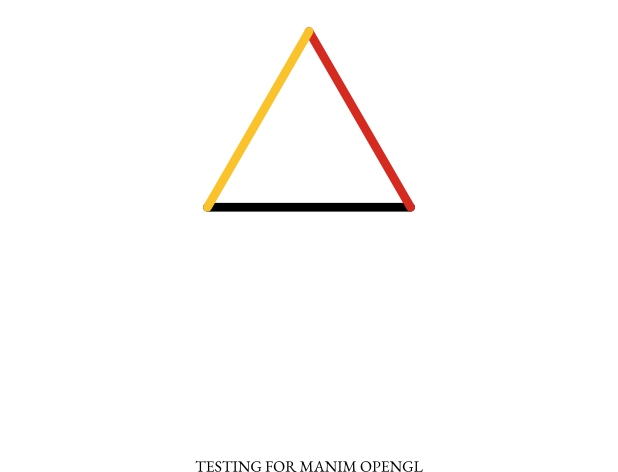

The a PNG of the original SVG is (click on the image to see it better since it doesn't have a background color):

As we can see, the horizontal line has stroke width and the text at the very bottom of the image is black.
When this SVG is rendered with Cairo, I see the expected behavior.
## Expected behavior
For OpenGLSVGMobject to treat SVG files the same was as SVGMobject.
## How to reproduce the issue
Use any SVG with black text and a horizontal line that has stroke width to it.
