Error of rendering after update ami.js

Open
#325 30 comments 0 reactions 0 assignees View on GitHub
Dominant language
JavaScript
Stars
745
Forks
212
PR merge metrics
No merged PRs in 30d

Description

### Description
I've been working with ami.js, and today I updated to the latest version of the `dev` branch. In this version was introduced the factory for stackHelper, TrackballControl, and so on..

When I changed to use the factories, I got the problem to render, I've already had a similar error described in the issue [#277](https://github.com/FNNDSC/ami/issues/277), but this time only with the latest version in all O.S. and the render is a little different, as you can see in the pictures.

> I can't use others versions of ami.js because I changed the loaders to accept cornerstone cached images objects ( I can do a pull request of it if desired)

#### Steps to Reproduce
Use the latest dev branch ami.js to build any volume rendering or slice geometry

#### Expected Results
To show the expected results I rollback to the old version the same used in the issue [#277](https://github.com/FNNDSC/ami/issues/277)

Volume Rendering
![image](https://user-images.githubusercontent.com/14366202/43152848-0ae4d148-8f46-11e8-8457-671a45263f59.png)

Slice
![image](https://user-images.githubusercontent.com/14366202/43153219-0ebdd0de-8f47-11e8-823f-b81fa2867937.png)

#### Actual Results
Volume Rendering

![image](https://user-images.githubusercontent.com/14366202/43145321-8432fbee-8f35-11e8-9c08-34d9b0ed5197.png)

Slice
![image](https://user-images.githubusercontent.com/14366202/43150945-90ac913a-8f41-11e8-966f-f0e432790dbb.png)

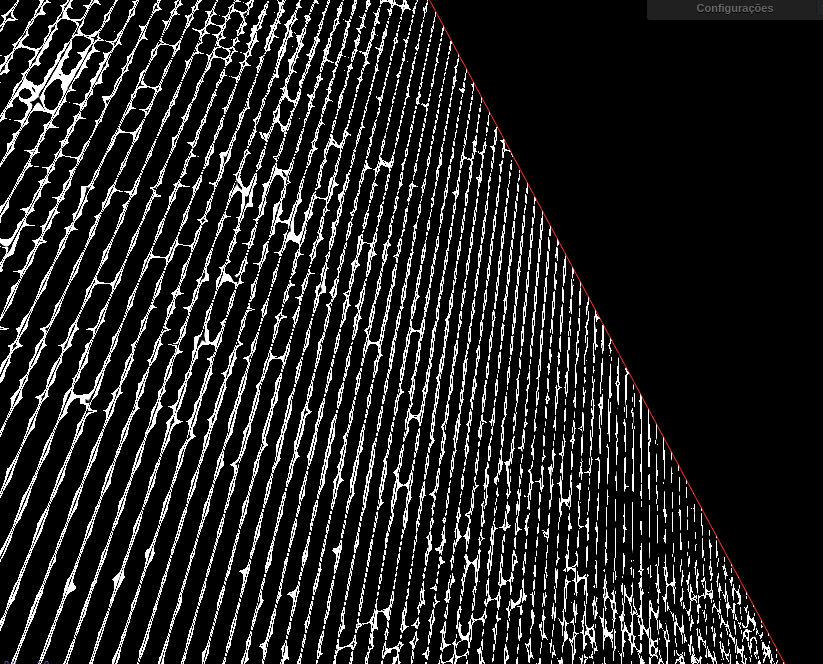

then I zoomed in the slice to see what could be happening:
![image](https://user-images.githubusercontent.com/14366202/43151049-c98756de-8f41-11e8-87d9-3bd60356155b.png)

When executed on `firefox` I got the following error on console:

```
THREE.WebGLShader: gl.getShaderInfoLog() vertex 0:2(12): warning: extension `GL_ARB_gpu_shader5' unsupported in vertex shader
1: precision highp float;
2: precision highp int;
3: #define SHADER_NAME ShaderMaterial
4: #define VERTEX_TEXTURES
5: #define GAMMA_FACTOR 2
6: #define MAX_DIR_LIGHTS 1
7: #define MAX_POINT_LIGHTS 0
8: #define MAX_SPOT_LIGHTS 0
9: #define MAX_HEMI_LIGHTS 0
10: #define MAX_SHADOWS 0
11: #define MAX_BONES 1019
12: #define FLIP_SIDED
13: uniform mat4 modelMatrix;
14: uniform mat4 modelViewMatrix;
15: uniform mat4 projectionMatrix;
16: uniform mat4 viewMatrix;
17: uniform mat3 normalMatrix;
18: uniform vec3 cameraPosition;
19: attribute vec3 position;
20: attribute vec3 normal;
21: attribute vec2 uv;
22: #ifdef USE_COLOR
23: attribute vec3 color;
24: #endif
25: #ifdef USE_MORPHTARGETS
26: attribute vec3 morphTarget0;
27: attribute vec3 morphTarget1;
28: attribute vec3 morphTarget2;
29: attribute vec3 morphTarget3;
30: #ifdef USE_MORPHNORMALS
31: attribute vec3 morphNormal0;
32: attribute vec3 morphNormal1;
33: attribute vec3 morphNormal2;
34: attribute vec3 morphNormal3;
35: #else
36: attribute vec3 morphTarget4;
37: attribute vec3 morphTarget5;
38: attribute vec3 morphTarget6;
39: attribute vec3 morphTarget7;
40: #endif
41: #endif
42: #ifdef USE_SKINNING
43: attribute vec4 skinIndex;
44: attribute vec4 skinWeight;
45: #endif
48: varying vec4 vPos;
49:
50: //
51: // main
52: //
53: void main() {
55: vPos = modelMatrix * vec4(position, 1.0 );
56: gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0 );
58: }
```

So I don't know where to start diving to get this fixed. I believe it could be related to the three.js version, but If someone could give me some direction, I would appreciate. When I discover what's going on, I post the fix here or do a pull request

### Browsers Affected
- [ ] All
- [X] Chrome
- [X] Firefox
- [ ] Edge *not tested*
- [ ] Safari 9 *not tested*
- [ ] Safari 8 *not tested*
- [ ] IE 11 *not tested*

### Versions
- AMI: latest `dev` branch
- THREEJS: revision 73

Thanks,
