In SCENE2D mode, how to remove the black edge of the map?

Open
#9,345 3 comments 0 reactions 0 assignees View on GitHub
category - 2d / columbus view type - bug
Dominant language
JavaScript
Stars
15.7k
Forks
3.9k
Avg merge
4d 6h
Merged PRs (30d)
34

Description

Sorry, I can't access https://community.cesium.com, so I'm asking here.

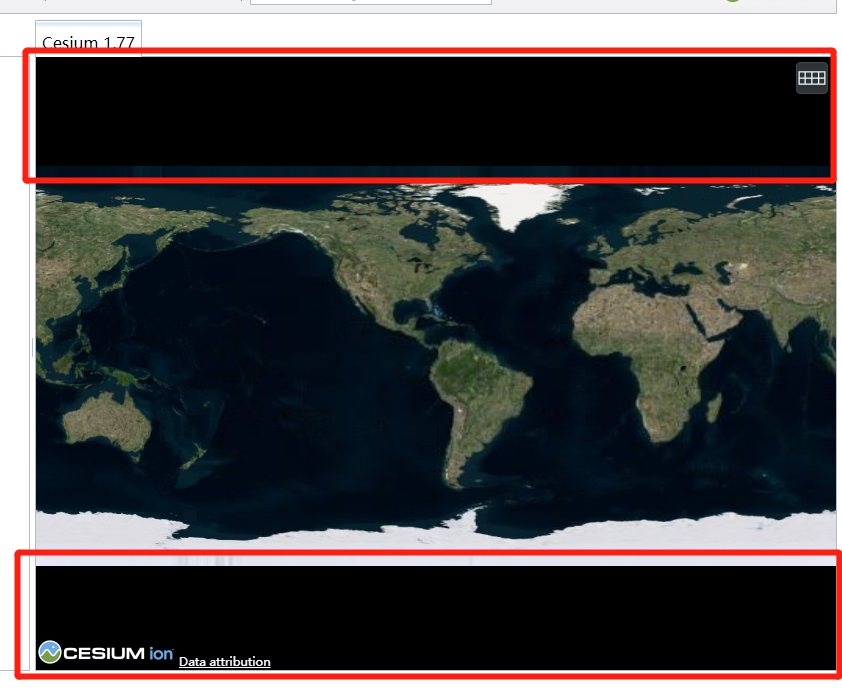

In SCENE2D mode, How to remove the black edges(shown in the following screenshot) or limit the camera to see only the region of the earth?

I tried to write an [example](https://sandcastle.cesium.com/#c=jVPva9swEP1XRD454MpsH5s4jGaBDdIlLFu3gKEo8tnRph9GktN4o//7ZClunTiF4S++u/fe3dNJVElj0YHBE2iUIglPaA6G1QI/+FyUjaiP50pawiTobBSjv5lEiEgmiGVK3qKCcANxm9wRA0vSgF4z+ht0v1TUnBuqAeRdbe05rQRFVX6O3ysBQySThbpTx37KMgHcjdbPSXJgpZ/uE/BqKGMoSLh3LW87v5sugzfzxZfF+4+ZfB5PMtl+rEBROCPsiVg4HErT9E3yOJzRGanS8L3KiQVM8nxxAGmXzFhX0ZEHoHQWWAhRvxZBjnOldO4Wc2pLqrVWv4C2xpye/40CBfWXNyfaqlKTas9odE/sHq8/x13xFD+uHhZfH7/9WI2DQDD72p0SAZq89A7hpI8odG1sLRwkFPEpcSEkmPzpMDedHXxENx0Xcyjs5MJ0i74K1qzc26H69ky96RF2yi1eXOpv+/p9uFXVq3qwVCnD/GkfUXp2gJQTUUUDVOztxt7GeHJdqvkvqcZLbb3UNkj5C/k8ikdTYxsOs27zH5iolLao1jzCOLEgKu7umUl2tXuFFlNjulmmSZ86zdkBsTy98sqRm8oYV2nf7Yb9gWw0myYOP6ByRXImy9UBNCdNC9u/my1DEmM8TVx4nWmV4juiL5T/AQ), which seems to solve the problem, but when the camera is very far away from the ground, the map will shake.

```js
const viewer = new Cesium.Viewer("cesiumContainer", {
animation: false,
baseLayerPicker: false,
fullscreenButton: false,
geocoder: false,
homeButton: false,
infoBox: false,
timeline: false,
navigationHelpButton: false,
sceneMode: Cesium.SceneMode.SCENE2D
});

if (viewer.scene.mode === Cesium.SceneMode.SCENE2D) {
viewer.scene.preUpdate.addEventListener(scene => {
const maxCoord = scene.mapProjection.project(
new Cesium.Cartographic(Math.PI, Cesium.Math.PI_OVER_TWO)
);

const camera = scene.camera;
const frustum = camera.frustum;

const minX = -maxCoord.x - frustum.left;
const maxX = maxCoord.x - frustum.right;

const minY = -maxCoord.y - frustum.bottom;
const maxY = maxCoord.y - frustum.top;

camera.position.x = Cesium.Math.clamp(camera.position.x, minX, maxX);
camera.position.y = Cesium.Math.clamp(camera.position.y, minY, maxY);
});
}
```

![image](https://user-images.githubusercontent.com/43558998/105962890-4bb16580-60bb-11eb-9c10-73e8e91d3cfd.png)
