The problem of polyaline self intersection

Open
#9,274 0 comments 0 reactions 0 assignees View on GitHub
category - polyline type - bug
Dominant language
JavaScript
Stars
15.7k
Forks
3.9k
Avg merge
4d 6h
Merged PRs (30d)
34

Description

Hi,
I added a polylinegraphic with a larger pixel width and transparent material. I found that when the camera is far away from the target, it overlaps itself. Why does this happen?
code:

`var viewer = new Cesium.Viewer('cesiumContainer');
viewer.entities.add({
polyline: {
positions: [Cesium.Cartesian3.fromDegrees(133,30), Cesium.Cartesian3.fromDegrees(133.5,31), Cesium.Cartesian3.fromDegrees(134,30)],
width: 50,
material: Cesium.Color.GREEN.withAlpha(0.1)
}
});
viewer.flyTo(viewer.entities);`

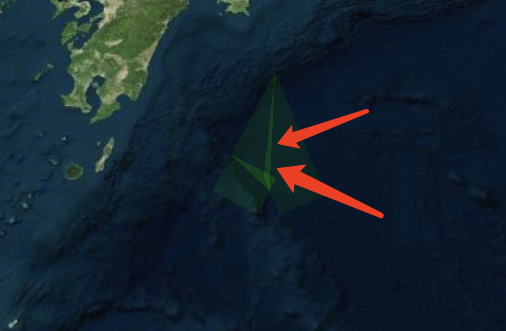

![image](https://user-images.githubusercontent.com/37999729/101728088-b9480900-3af0-11eb-8c21-1c6879252f1b.png)
![image](https://user-images.githubusercontent.com/37999729/101728120-c664f800-3af0-11eb-803e-0df3c9ec8035.png)
