PointGraphics initially fail to render in Columbus 2.5D mode

Open
#8,690 3 comments 0 reactions 0 assignees View on GitHub
category - entity type - bug
Dominant language
JavaScript
Stars
15.7k
Forks
3.9k
Avg merge
4d 6h
Merged PRs (30d)
34

Description

## Summary

In 2.5D Columbus mode, Point entities are initially not visible, but become visible when the camera angle changes sufficiently.

## Sandcastle example:

This can be demonstrated with a minor change to the "[Drawing on Terrain](https://sandcastle.cesium.com/?src=Drawing%20on%20Terrain.html)" Sandcastle example.

Simply change the "pixelSize" in the createPoint function from 5 to 20:
```
function createPoint(worldPosition) {
var point = viewer.entities.add({
position : worldPosition,
point : {
color : Cesium.Color.WHITE,
pixelSize : 20,
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND
}
});
return point;
}
```

## Steps to Reproduce:

1. In the [Drawing on Terrain](https://sandcastle.cesium.com/?src=Drawing%20on%20Terrain.html) Sandcastle example, set a larger pixelSize so that it's easy to see the Point entities.
2. Run the modified Sandcastle example.
3. Use the scene mode picker to choose Columbus mode.
4. Draw a polyline. The PolylineGraphics will be shown, but not the extra-large PointGraphics vertices.
5. Zoom out or change the camera angle. The PointGraphics vertices will become visible.

## Actual/Undesired Behavior:

![points-not-rendering-columbus](https://user-images.githubusercontent.com/3003122/76878466-3f2d7100-684b-11ea-99bb-bd0c47230356.gif)

## Desired/Expected Behavior:

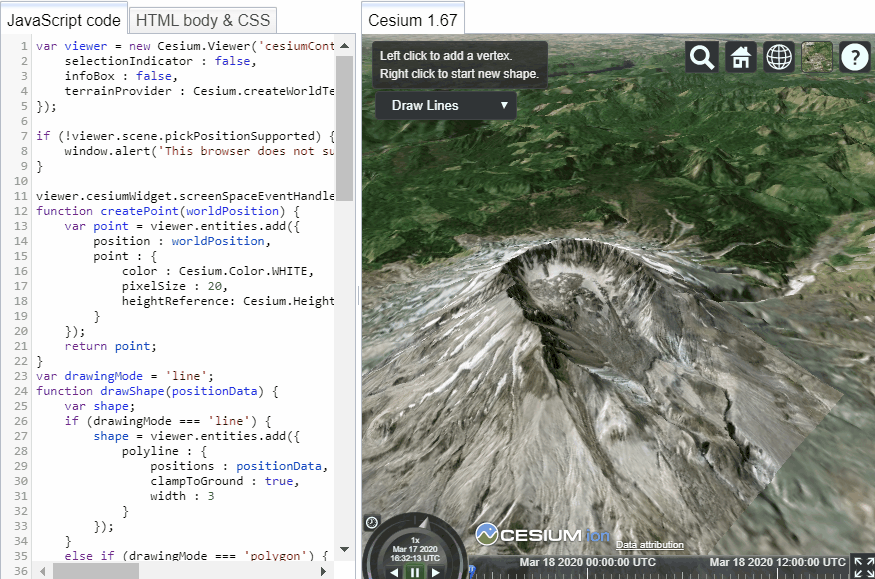

The Point entities should be visible upon creation, as they are in full 3D mode:

![points-rendering-properly-3D](https://user-images.githubusercontent.com/3003122/76878767-aba87000-684b-11ea-94b5-40264ddee10b.gif)

## Browser:

Chrome Version 80.0.3987.132
Firefox 74.0 (64-bit)

## Operating System:

Windows 10 version 1809 build 17763.1098

## Workarounds / things I've tried:

- I tried generating positions above the terrain surface (cartographic, with positive heights), and it did not help.

- I tried setting the `disableDepthTestDistance : Number.POSITIVE_INFINITY` and `distanceDisplayCondition : new Cesium.DistanceDisplayCondition()` which I believe should be the settings most conducive to always showing the Point entities, and it did not change the behavior.

- I introduced an automatic zoom-out-then-zoom-back in, by calling "move" methods on the Camera, and this does work, but requires waiting 50 milliseconds or so (the exact time varries), which is a jarring UX. In addition, the required move-back distance varies depending on the geometry (note, in the gif, one of the points fails to render even as the others *do* render, and does not render until we move back further.

If anyone has a fix or a good workaround, it would be very helpful to me!
