Imagine I have a surface like this:

```python
box = cq.Workplane("XY").box(10, 10, 4) \
.faces(">Z").workplane().hole(3)
surface = box.faces(">Z")
surface
```

![Screenshot from 2019-09-15 22-27-35](https://user-images.githubusercontent.com/526577/64927211-0cf17700-d808-11e9-8ba5-9bdcf8c1137f.png)

Now I want to place a cylinder on top of it, at a "random" position, but only if the whole cylinder's base sits on top of the surface. In example, this would be valid:

```python
position = (-2, 3)
surface.center(*position).circle(1).extrude(2)
```

![Screenshot from 2019-09-15 22-31-48](https://user-images.githubusercontent.com/526577/64927259-a3259d00-d808-11e9-8918-45b19de509f6.png)

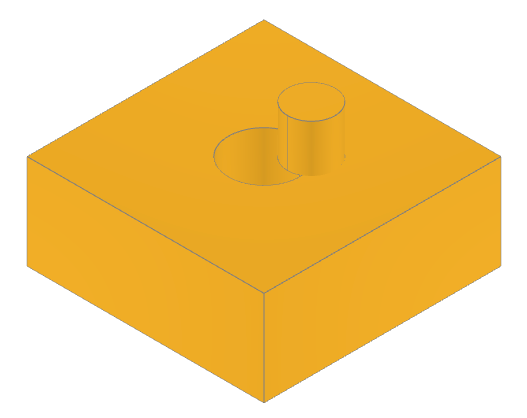

But this would not:

```python
position = (-1, 1)
surface.center(*position).circle(1).extrude(2)
```

![Screenshot from 2019-09-15 22-32-34](https://user-images.githubusercontent.com/526577/64927262-bf293e80-d808-11e9-93b3-179def00630b.png)

Is there a way to know if the circle (the cylinder's base) is fully contained in the surface?

The method should work for any surface shape (i.e.: not only for a perfectly squared surface with a perfect circle on the middle). The cylinder on top could also have a different shape in its base (like an irregular polygon).

I guess what I am looking for is a way to see if a face/polygon is contained in another face/polygon, right? The two faces/polygons are of course in the same plane.
