Bicep visualizer points to parent resource instead of to child resource

Open
#6,650 2 comments 0 reactions 0 assignees View on GitHub
bug story: visualizer
Dominant language
Bicep
Stars
3.6k
Forks
830
Avg merge
1d 21m
Merged PRs (30d)
79

Description

**Bicep version**
Bicep CLI version 0.5.6 (5f2f88f0f0)

**Describe the bug**

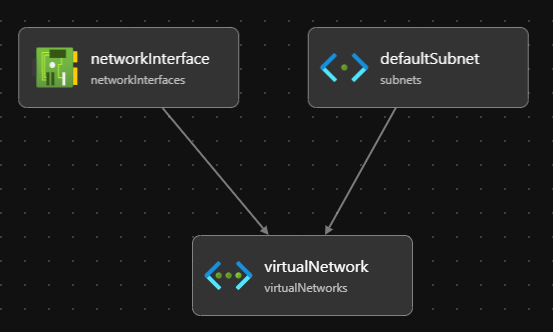

In network interface using subnet reference as child resource (`id: virtualNetwork::defaultSubnet.id`) visualizer points to vnet:
![image](https://user-images.githubusercontent.com/24376947/165157551-e703d3c3-6b32-4087-aa32-d82b12e73520.png)
instead of points to the subnet as it is when using reference as a separate resource (`id: defaultSubnet`):
![image](https://user-images.githubusercontent.com/24376947/165157591-0ae4d9a0-9893-4bcf-a7aa-b573df77c556.png)

**To Reproduce**
Use below bicep template (it's piece of code from this [Learn module](https://docs.microsoft.com/en-us/learn/modules/migrate-azure-resources-bicep/5-exercise-refactor-bicep-file)):

main.bicep

```bicep
@description('The location into which the resources should be deployed.')
param location string = resourceGroup().location

@description('The virtual network address range.')
param virtualNetworkAddressPrefix string

@description('The default subnet address range within the virtual network')
param virtualNetworkDefaultSubnetAddressPrefix string

var virtualNetworkName = 'ToyTruck-vnet'
var virtualNetworkDefaultSubnetName = 'default'
var networkInterfaceName = 'toytruckserver237'

resource virtualNetwork 'Microsoft.Network/virtualNetworks@2020-11-01' = {
name: virtualNetworkName
location: location
properties: {
addressSpace: {
addressPrefixes: [
virtualNetworkAddressPrefix
]
}
subnets: [
{
name: virtualNetworkDefaultSubnetName
properties: {
addressPrefix: virtualNetworkDefaultSubnetAddressPrefix
privateEndpointNetworkPolicies: 'Enabled'
privateLinkServiceNetworkPolicies: 'Enabled'
}
}
]
enableDdosProtection: false
}

resource defaultSubnet 'subnets' existing = {
name: virtualNetworkDefaultSubnetName
}
}

resource networkInterface 'Microsoft.Network/networkInterfaces@2020-07-01' = {
name: networkInterfaceName
location: location
properties: {
ipConfigurations: [
{
name: 'ipconfig1'
properties: {
privateIPAllocationMethod: 'Dynamic'
subnet: {
id: virtualNetwork::defaultSubnet.id
// id: defaultSubnet
}
primary: true
privateIPAddressVersion: 'IPv4'
}
}
]
enableIPForwarding: false
}
}

resource defaultSubnet 'Microsoft.Network/virtualNetworks/subnets@2020-11-01' = {
parent: virtualNetwork
name: 'default'
properties: {
addressPrefix: '10.0.0.0/24'
delegations: []
privateEndpointNetworkPolicies: 'Enabled'
privateLinkServiceNetworkPolicies: 'Enabled'
}
}

```
