VSCode extension: Intellisense is not recognizing required parameters for `Microsoft.ContainerService/managedClusters@2021-05-01`

Open
#3,739 1 comment 0 reactions 0 assignees View on GitHub
provider bug types: swagger inaccuracy
Dominant language
Bicep
Stars
3.6k
Forks
830
Avg merge
1d 21m
Merged PRs (30d)
79

Description

**Bicep version**
Bicep CLI version 0.4.451 (e14a1f9511)

**Describe the bug**
I expect the VSCode Intellisense to tell me what are the required parameters for the resource during creation, however this is not the case.

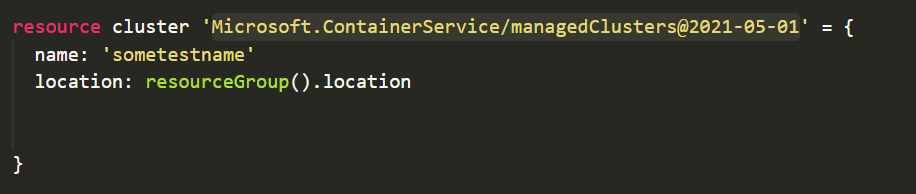

Notice how the Intellisense is not detecting that I am missing a required parameter `servicePrincipalProfile` and `agentPoolProfiles`

![image](https://user-images.githubusercontent.com/9611108/126820446-ae04900c-309c-4c5e-9da8-1e638aaaf235.png)

This is confirmed when I attempt to deploy the resource, see error message below:

```bash
{"error":{"code":"InvalidTemplateDeployment","message":"The template deployment 'cluster' is not valid according to the validation procedure. The tracking id is 'a40642cf-6485-4083-8586-6ae4dc3ba0df'. See inner errors for details.","details":[{"code":"InvalidParameter","message":"Provisioning of resource(s) for container service sometestname in resource group asilverm-bicep failed. Message: {\n \"code\": \"InvalidParameter\",\n \"message\": \"Required parameter servicePrincipalProfile is missing (null).\",\n \"target\": \"servicePrincipalProfile\"\n }. Details: "}]}}
```

**To Reproduce**
Steps to reproduce the behavior:
1) Create a valid bicep file containing the resource below
```bicep
resource cluster 'Microsoft.ContainerService/managedClusters@2021-05-01' = {
name: 'sometestname'
location: resourceGroup().location
}
```

Attempt to deploy the file using the az command

` az deployment group create -f ./test.bicep -g somegroup`

**Additional context**
Add any other context about the problem here.

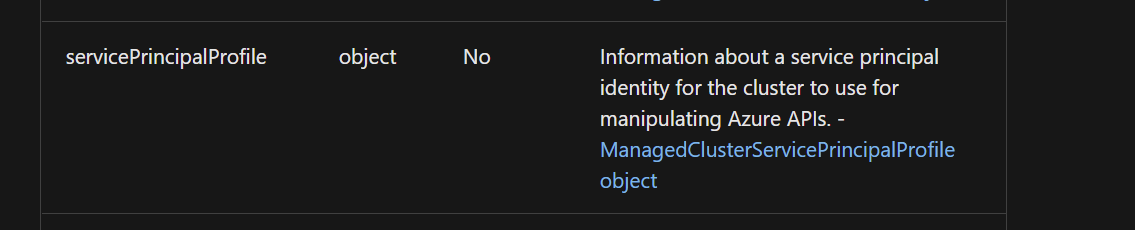

Notice how the [documentation ](https://docs.microsoft.com/en-us/azure/templates/microsoft.containerservice/2021-05-01/managedclusters?tabs=bicep#managedclusterproperties-object) says that this value is not required but it is
![image](https://user-images.githubusercontent.com/9611108/126821661-1783979d-f53f-41c3-9cf4-f593f8f1b2f6.png)

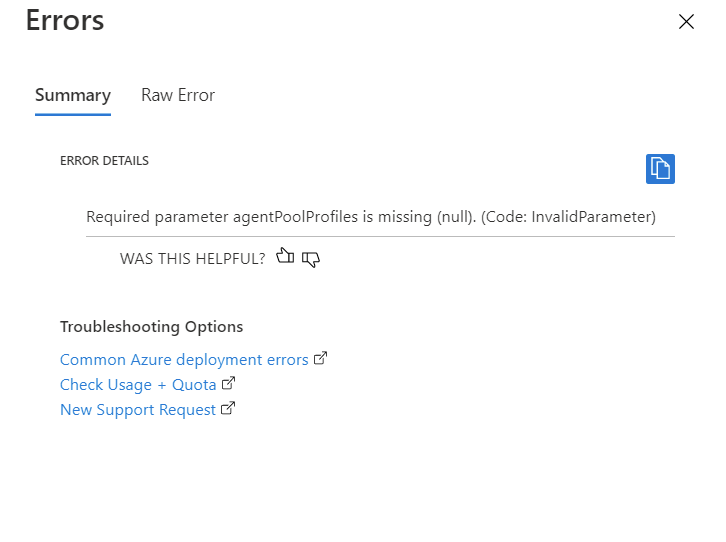

If you do end-up specifying the `servicePrincipalProfile`, then you encounter an error with `agentPoolProfiles`

![image](https://user-images.githubusercontent.com/9611108/126823400-a67fda15-f8ee-4bb4-8e2b-e0e5bfcdff9f.png)
