Description

### Description

We tried to disable the virtual networks and firewall setting using Az Powershell.
![image](https://user-images.githubusercontent.com/61817681/180407772-00c5d4e9-42b9-4651-96f8-cecd6e9d88b3.png)

We tired below command first and it reported error:
> Update-AzCosmosDBAccount \`
> -ResourceGroupName "bo-private" \`
> -Name "nwisolation-demo" \`
> -EnableVirtualNetwork $false \`
> -PublicNetworkAccess "Enabled" \`
> -IpRule @() -Debug

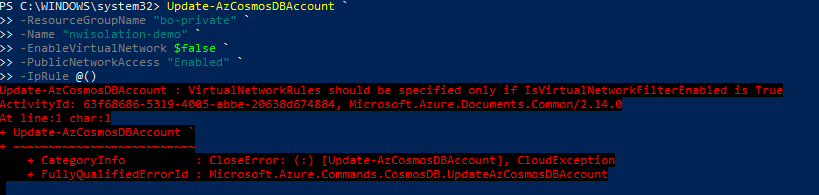

![image](https://user-images.githubusercontent.com/61817681/180409261-d472b046-0c22-4d9c-9b4a-e3e2e0e149a4.png)

From the debug output, It looks like it has been rejected by service side due to the remaining virtual network rules:

> DEBUG: ============================ HTTP REQUEST ============================
>
> HTTP Method:
> PATCH
>
> Absolute Uri:
> https://management.azure.com/subscriptions/27cafca8-b9a4-4264-b399-45d0c9cca1ab/resourceGroups/bo-private/providers/Microsoft.DocumentDB/databaseAccounts/nwisolation-demo?api-version=2022-02-15-preview
>
> Headers:
> x-ms-client-request-id : b471dcc5-90df-4294-863c-8e12c736a08d
> accept-language : en-US
>
> Body:
> {
> "location": "West US",
> "properties": {
> "locations": [
> {
> "locationName": "West US",
> "provisioningState": "Succeeded",
> "failoverPriority": 0,
> "isZoneRedundant": false
> }
> ],
> "ipRules": [],
> "isVirtualNetworkFilterEnabled": false,
> "publicNetworkAccess": "Enabled"
> }
> }
>
> DEBUG: ============================ HTTP RESPONSE ============================
>
> Status Code:
> BadRequest
>
> Headers:
> Pragma : no-cache
> Strict-Transport-Security : max-age=31536000; includeSubDomains
> x-ms-gatewayversion : version=2.14.0
> x-ms-ratelimit-remaining-subscription-writes: 1199
> x-ms-request-id : d749c6fe-0ea2-429d-89d8-3a39c96ba65c
> x-ms-correlation-request-id : d749c6fe-0ea2-429d-89d8-3a39c96ba65c
> x-ms-routing-request-id : SOUTHEASTASIA:20220722T092817Z:d749c6fe-0ea2-429d-89d8-3a39c96ba65c
> X-Content-Type-Options : nosniff
> Cache-Control : no-store, no-cache
> Date : Fri, 22 Jul 2022 09:28:16 GMT
> Server : Microsoft-HTTPAPI/2.0
>
> Body:
> {
> "code": "BadRequest",
> "message": "VirtualNetworkRules should be specified only if IsVirtualNetworkFilterEnabled is True\r\nActivityId: b471dcc5-90df-4294-863c-8e12c736a08d, Microsoft.Azure.Documents.Common/2.14.0"
> }
>
> DEBUG: 5:28:17 PM - [ConfigManager] Got [False] from [EnableDataCollection], Module = [], Cmdlet = [].

With the intention to remove the virtual network rules, we tried below command, but it is still with no good.
> Update-AzCosmosDBAccount \`
> -ResourceGroupName "bo-private" \`
> -Name "nwisolation-demo" \`
> -EnableVirtualNetwork $false \`
> -PublicNetworkAccess "Enabled" \`
> -VirtualNetworkRuleObject @() \`
> -IpRule @() -Debug

![image](https://user-images.githubusercontent.com/61817681/180408970-7b6a9ad6-03b6-4c64-aa01-2d4d428c686c.png)

The error this time seems to be parameter validation failure for "VirtualNetworkRuleObject", I am wondering whether the validation could be relaxed to accept an empty collection to delete all the virtual network rules?

### Issue script & Debug output

```PowerShell
PS C:\WINDOWS\system32> Update-AzCosmosDBAccount `
>> -ResourceGroupName "bo-private" `
>> -Name "nwisolation-demo" `
>> -EnableVirtualNetwork $false `
>> -PublicNetworkAccess "Enabled" `
>> -IpRule @()
Update-AzCosmosDBAccount : VirtualNetworkRules should be specified only if IsVirtualNetworkFilterEnabled is True
ActivityId: 5c791281-0cd4-4c01-a60a-813999fb6966, Microsoft.Azure.Documents.Common/2.14.0
At line:1 char:1
+ Update-AzCosmosDBAccount `
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : CloseError: (:) [Update-AzCosmosDBAccount], CloudException
+ FullyQualifiedErrorId : Microsoft.Azure.Commands.CosmosDB.UpdateAzCosmosDBAccount
```

### Environment data

```PowerShell
PS C:\WINDOWS\system32> $PSVersionTable

Name Value
---- -----
PSVersion 5.1.19041.1682
PSEdition Desktop
PSCompatibleVersions {1.0, 2.0, 3.0, 4.0...}
BuildVersion 10.0.19041.1682
CLRVersion 4.0.30319.42000
WSManStackVersion 3.0
PSRemotingProtocolVersion 2.3
SerializationVersion 1.1.0.1
```

### Module versions

```PowerShell
PS C:\WINDOWS\system32> Get-Module Az*

ModuleType Version Name ExportedCommands
---------- ------- ---- ----------------
Script 2.9.0 Az.Accounts {Add-AzEnvironment, Clear-AzConfig, Clear-AzContext, Clear-AzDefault...}
Script 1.8.2 Az.CosmosDB {Get-AzCosmosDBAccount, Get-AzCosmosDBAccountKey, Get-AzCosmosDBCassandraKeyspace, Get-AzCosmosDBCassandraKeyspaceThroughput...}
```

### Error output

```PowerShell
HistoryId: 7

RequestId : 5b06cac1-9770-4531-a771-44786d9daf14
Message : VirtualNetworkRules should be specified only if IsVirtualNetworkFilterEnabled is True
ActivityId: 5973e475-8d6c-43bb-8c18-f4879f01de54, Microsoft.Azure.Documents.Common/2.14.0
ServerMessage : BadRequest: VirtualNetworkRules should be specified only if IsVirtualNetworkFilterEnabled is True
ActivityId: 5973e475-8d6c-43bb-8c18-f4879f01de54, Microsoft.Azure.Documents.Common/2.14.0 (System.Collections.Generic.List`1[Microsoft.Rest.Azure.CloudError])
ServerResponse : {BadRequest}
RequestMessage : {PATCH https://management.azure.com/subscriptions/27cafca8-b9a4-4264-b399-45d0c9cca1ab/resourceGroups/bo-private/providers/Microsoft.DocumentDB/databaseAccounts/nwisolation-demo?api-version=2022-02-15-preview}
InvocationInfo : {Update-AzCosmosDBAccount}
Line : Update-AzCosmosDBAccount `

Position : At line:1 char:1
+ Update-AzCosmosDBAccount `
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~
StackTrace : at Microsoft.Azure.Management.CosmosDB.DatabaseAccountsOperations.d__23.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at Microsoft.Azure.Management.CosmosDB.DatabaseAccountsOperations.d__6.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at Microsoft.Azure.Commands.CosmosDB.UpdateAzCosmosDBAccount.ExecuteCmdlet()
at Microsoft.WindowsAzure.Commands.Utilities.Common.AzurePSCmdlet.ProcessRecord()
HistoryId : 7
```
