ConnectionStrings don't get bound via [AppSetting] since 2.0.1151-alpha
- Dominant language
- C#
- Stars
- 2k
- Forks
- 482
- Avg merge
- 2d 12h
- Merged PRs (30d)
- 38
Description
All releases since `2.0.11651-alpha` of the functions runtime in Azure don't bind `[AppSetting("ConnectionStrings:CONNECTION_STRING_NAME")]` anymore. It did before that and still does when running locally on latest SDK.
## Investigative information
I've created a minimum representation of the issue to illustrate.
### Doesn't work
- Timestamp: `2018-06-10 07:35:00.006`
- Function App version (1.0 or 2.0-beta): `2.0-beta`
- Function App name: `FunctionApp20180610024421`
- Function name(s) (as appropriate): `Function1`
- Invocation ID: `577f14ae-3718-47e9-8da2-a0ea294f8708`
- Region: `Australia East`
Note log output of: `C# Timer trigger function executed at: 6/10/2018 7:35:00 AM with connection string and app setting test1`.
### Does work
- Timestamp: `2018-06-10 10:11:00.008`
- Function App version (1.0 or 2.0-beta): `2.0.11651-alpha`
- Function App name: `FunctionApp20180610024421`
- Function name(s) (as appropriate): `Function1`
- Invocation ID: `d281c04e-56ac-486c-9957-28416da1da25`
- Region: `Australia East`
Note log output of `C# Timer trigger function executed at: 6/10/2018 10:11:00 AM with connection string test2 and app setting test1`.
## Repro steps
Bind an object with an `[AppSetting(...)]` that references a connection string, e.g.:
```c#
using System;
using Microsoft.Azure.WebJobs;
using Microsoft.Azure.WebJobs.Description;
using Microsoft.Azure.WebJobs.Host;
using Microsoft.Azure.WebJobs.Host.Config;
namespace FunctionApp1
{
public static class Function1
{
[FunctionName("Function1")]
public static void Run(
[TimerTrigger("%Schedule%")]
TimerInfo myTimer,
TraceWriter log,
[BindData]
Data data)
{
log.Info($"C# Timer trigger function executed at: {DateTime.Now} with connection string {data.ConnectionString} and app setting {data.Appsetting}");
}
}
public class Data : Attribute
{
[AppSetting(Default = "ConnectionStrings:Connection")]
public string ConnectionString { get; set; }
[AppSetting(Default = "Appsetting")]
public string Appsetting { get; set; }
}
[AttributeUsage(AttributeTargets.Parameter | AttributeTargets.ReturnValue)]
[Binding]
public class BindDataAttribute : Data { }
public class BindSessionizeReadModelSyncConfigExtension : IExtensionConfigProvider
{
public void Initialize(ExtensionConfigContext context)
{
var rule = context.AddBindingRule();
rule.BindToInput(BuildItemFromAttr);
}
private Data BuildItemFromAttr(BindDataAttribute attr)
{
return attr;
}
}
}
```

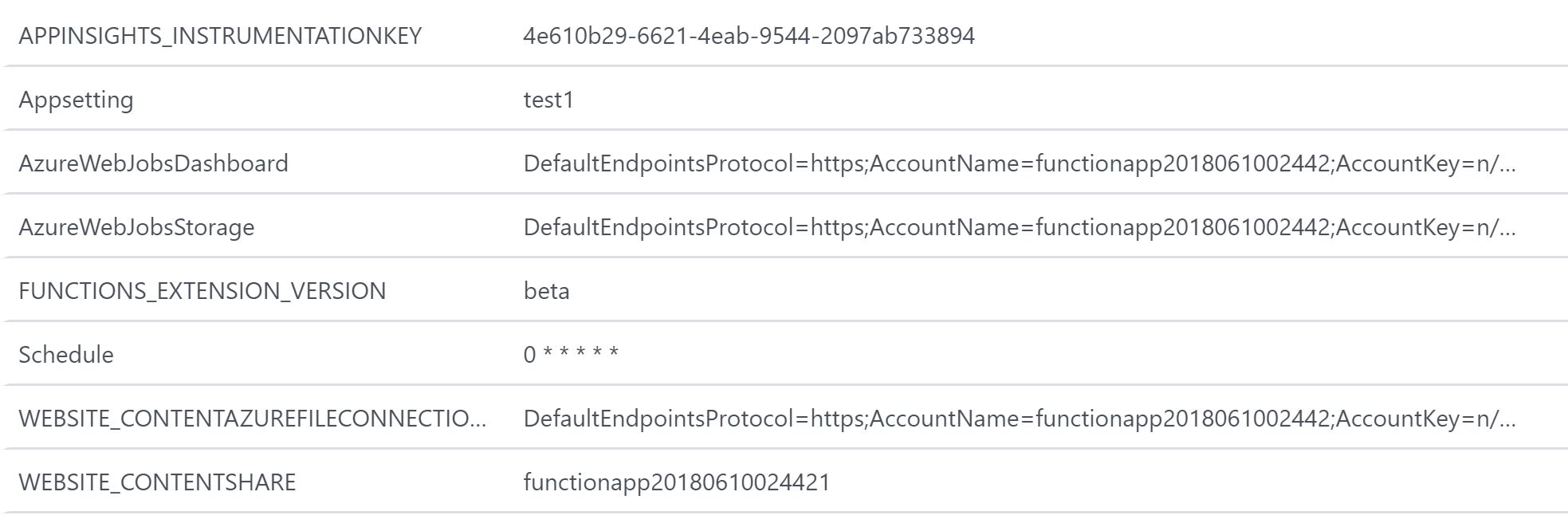

With the following settings:

## Expected behavior
The bound object should have the connection string present (e.g. `test2` in above example).
## Actual behavior
The bound object has `null` in the bound object.
## Known workarounds
Put the connection string in normal app settings (rather than connection strings) and remove the `ConnectionStrings:` prefix from the `[AppSetting(...)]` attribute.
