Wall geometry error at intersection with door adjacent
- Dominant language
- C#
- Stars
- 637
- Forks
- 225
- PR merge metrics
- No merged PRs in 30d
Description
When three walls and a door intersect (as shown below) the IFC file is then missing geometry at the meeting point.

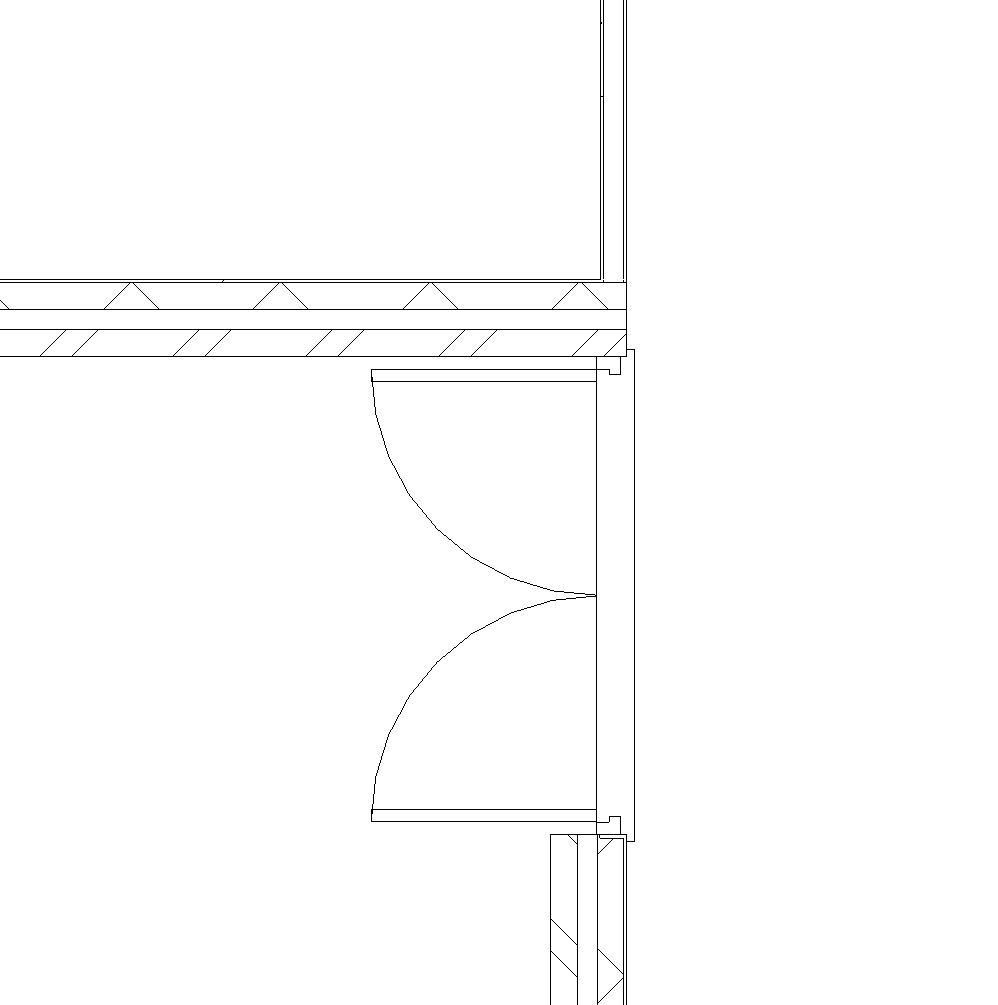

The intersection in Revit floor plan view.

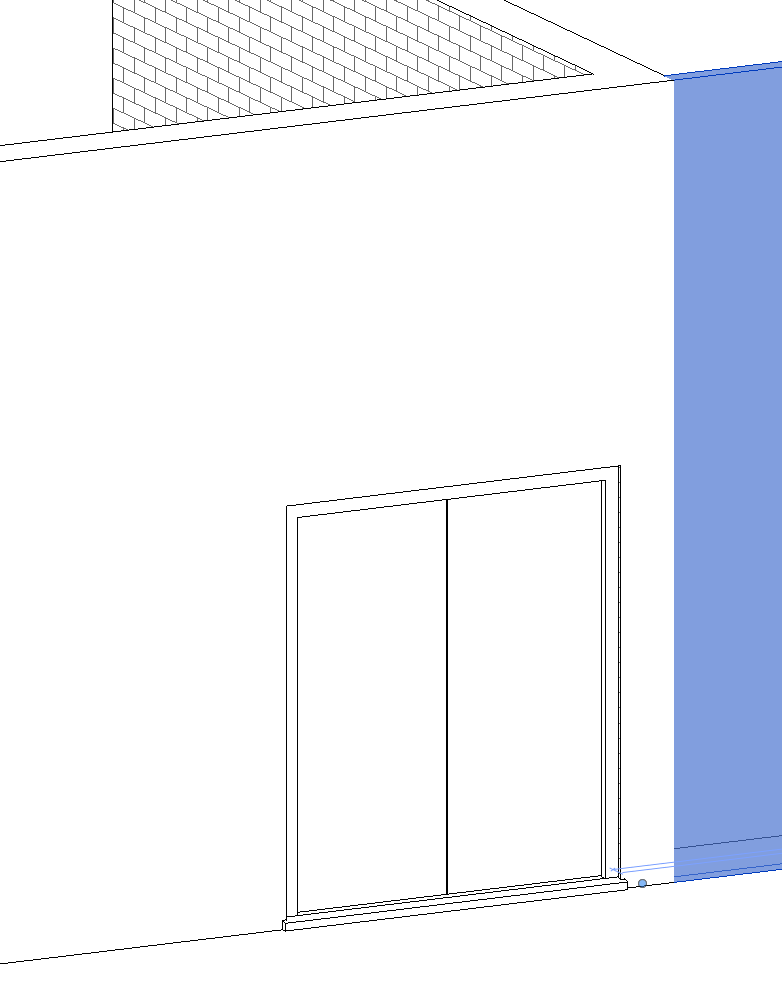

The intersection in Revit 3D view.

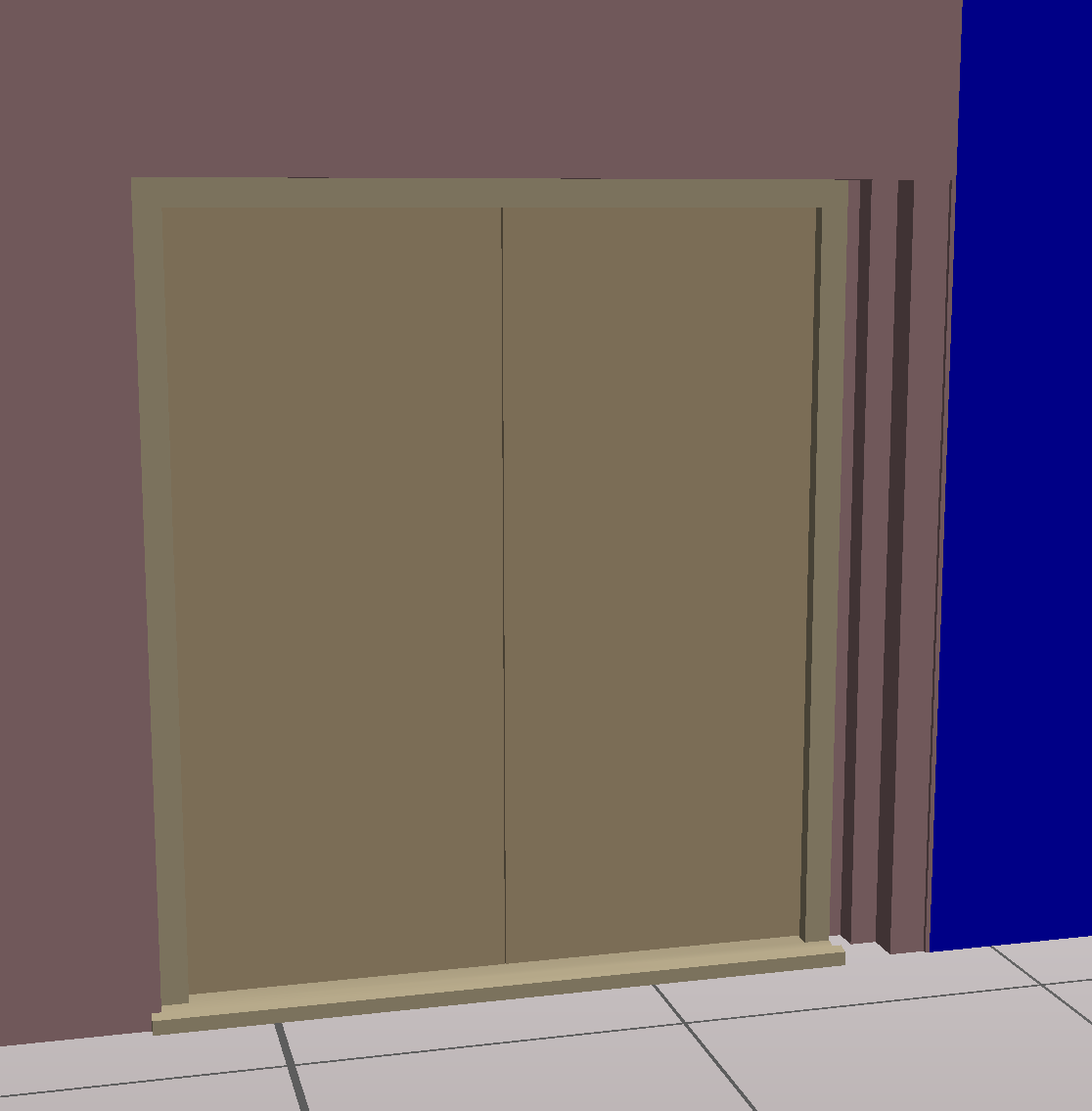

When viewed in Xbim Xplorer the wall in which the door sits is missing geometry between the void and the end of the wall.

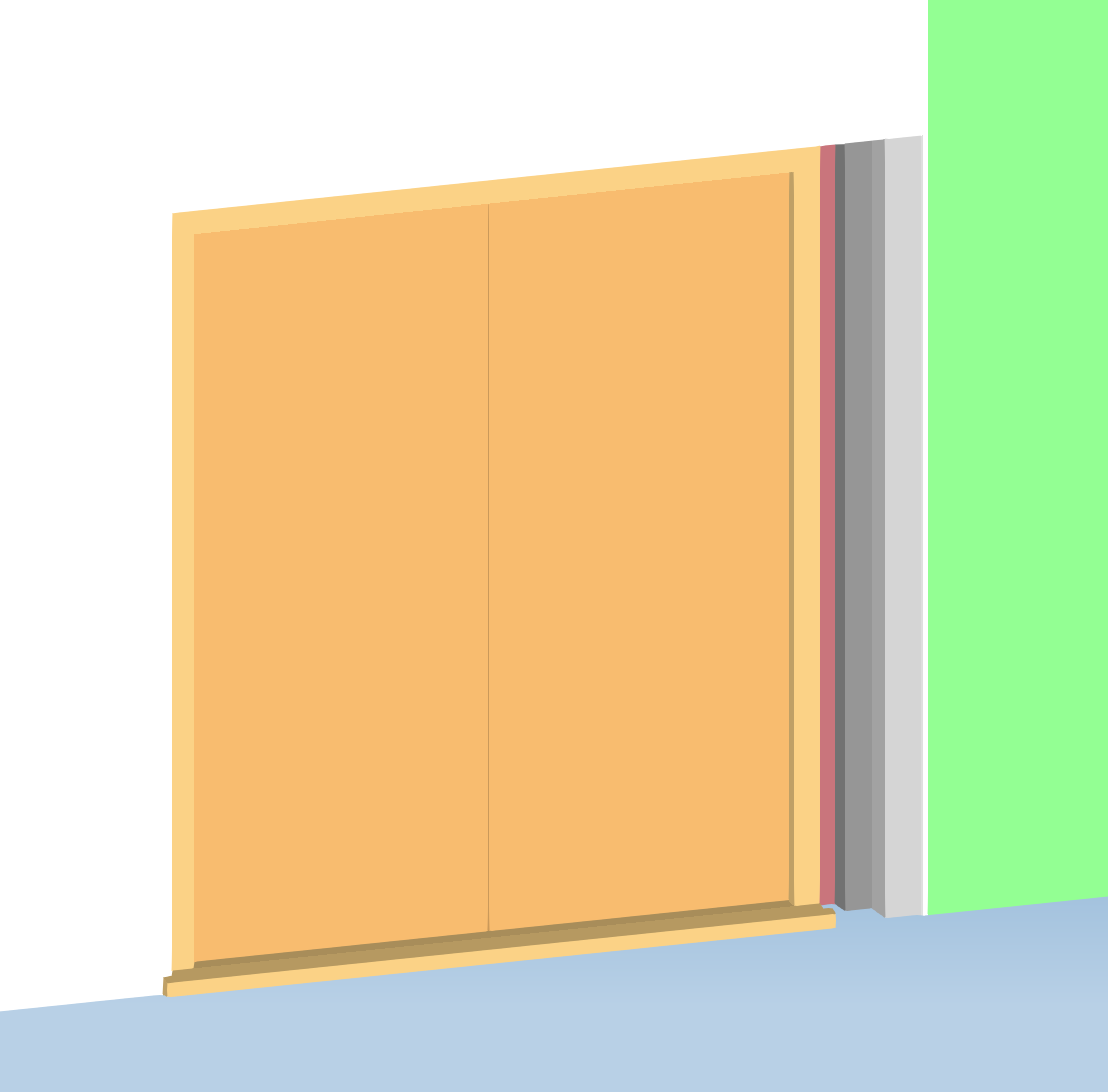

When viewed in Open IFC Viewer the wall geometry has the same issue.

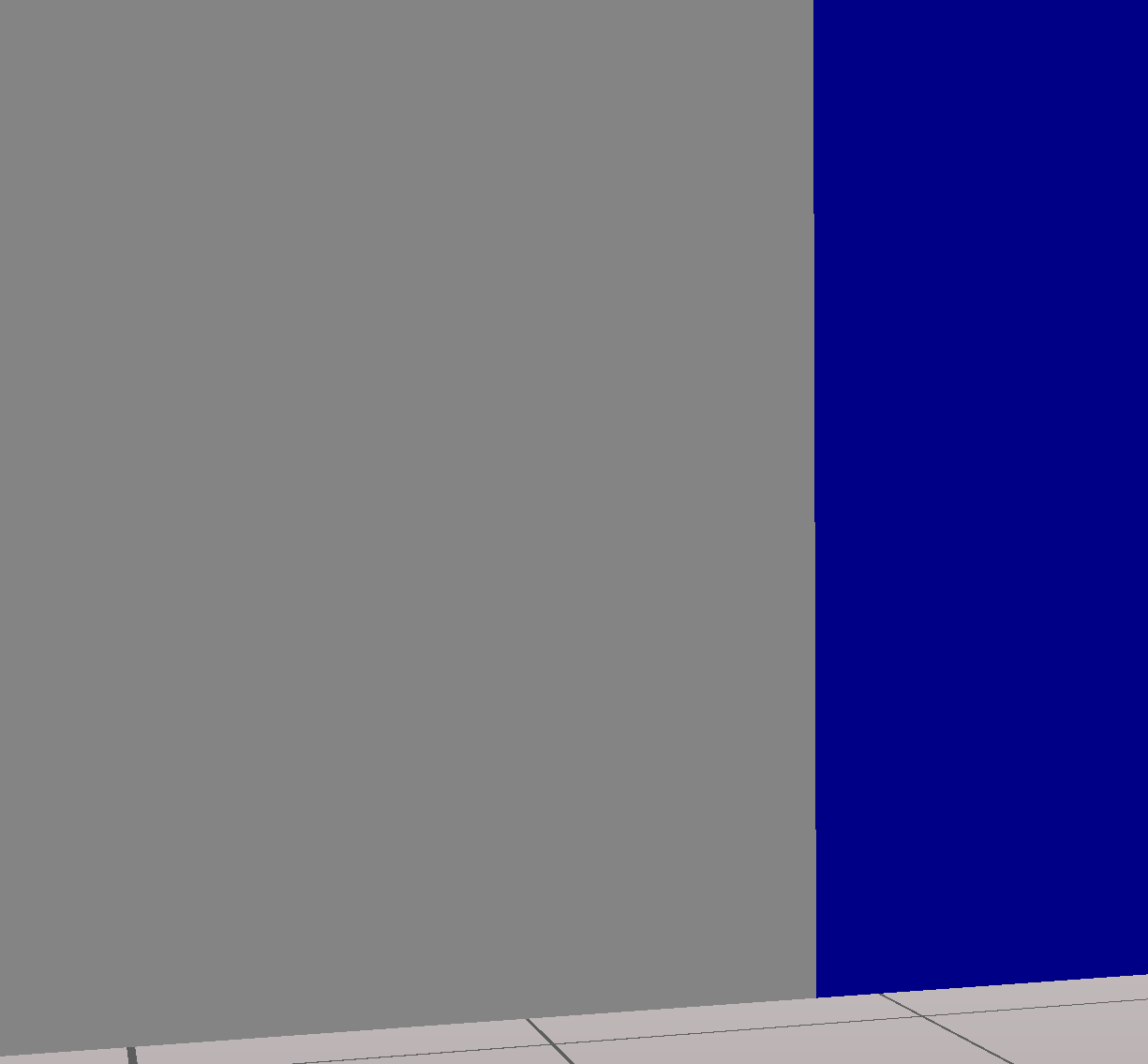

If the door is removed, the wall is fine.
The Revit file and IFC can be downloaded here.
https://situsystems-my.sharepoint.com/:f:/p/rik_mckenzie/Eiix1MSbYI5BtYcSU-LGYfsBzlDI7ktBTNX6SC2Q8PRZSQ?e=vvM3xV
Is there any available fix for this issue?
