Export - Skylight / Roof windows do not fills void it has created
- Dominant language
- C#
- Stars
- 637
- Forks
- 225
- PR merge metrics
- No merged PRs in 30d
Description
Hello,
I faced an issue regarding roof based windows on export using Revit 2020.2. They do not fill the void they created in their host element.
# Current result both in IFC2x3 and IFC4 :

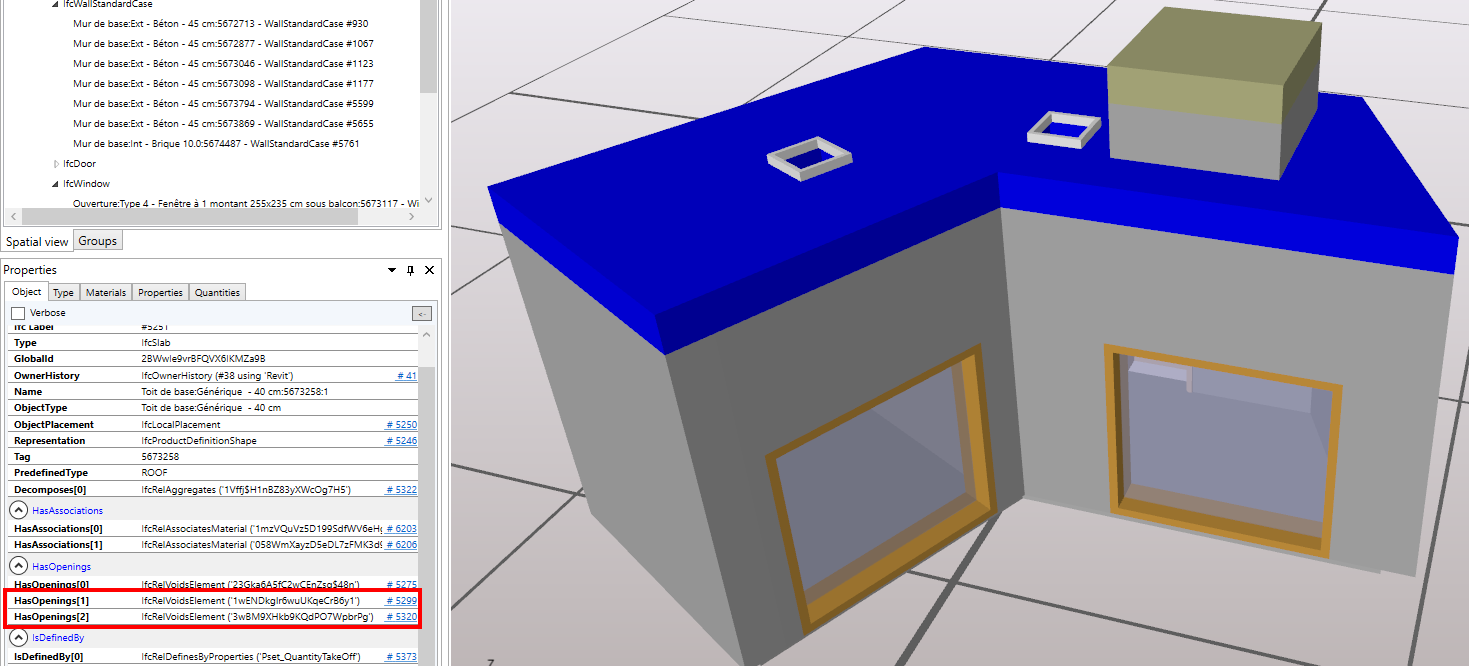

## Roof has openings

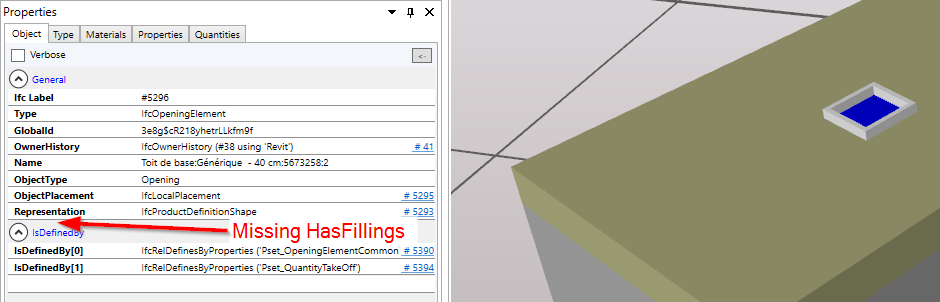

## OpeningElement has no filling

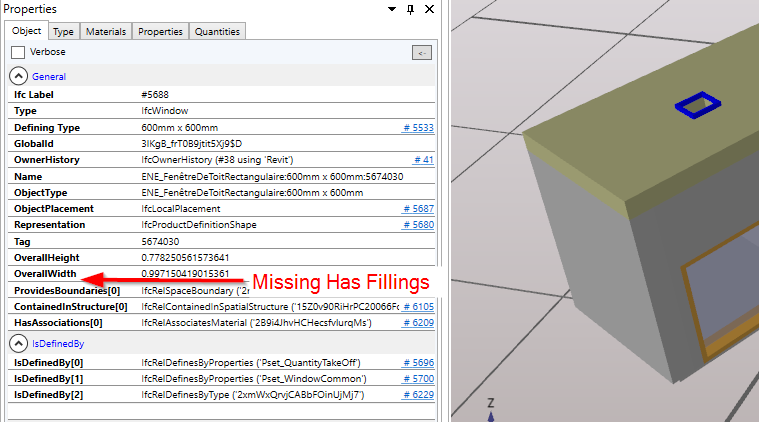

## Window fills nothing
# Expected result similar to wall based windows :

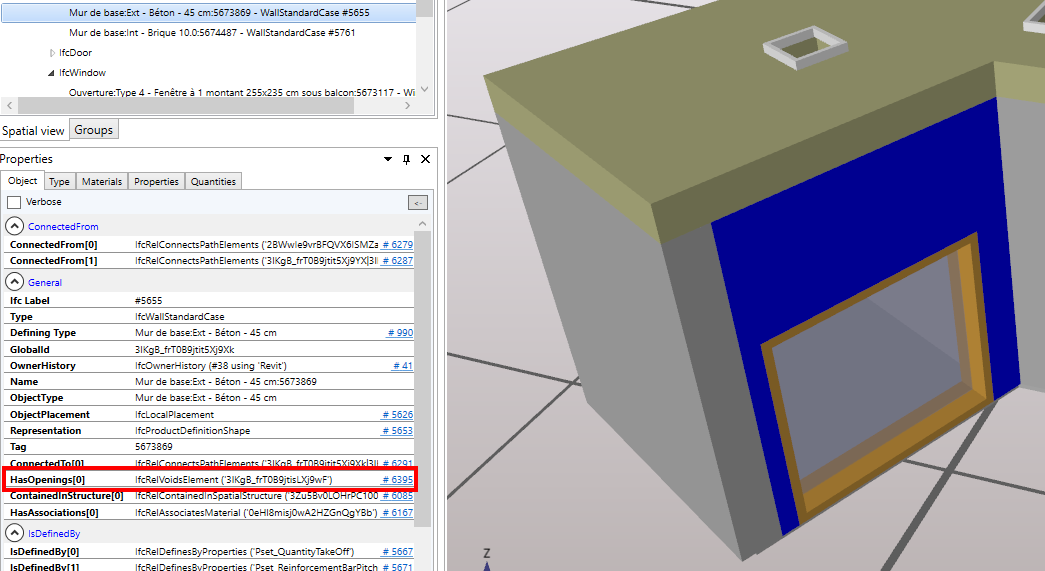

## Wall has opening

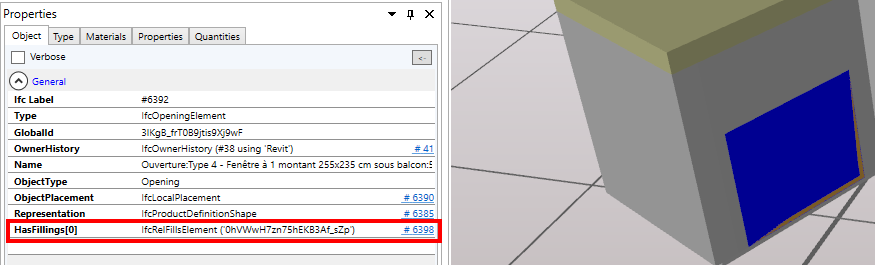

## OpeningElement has filling

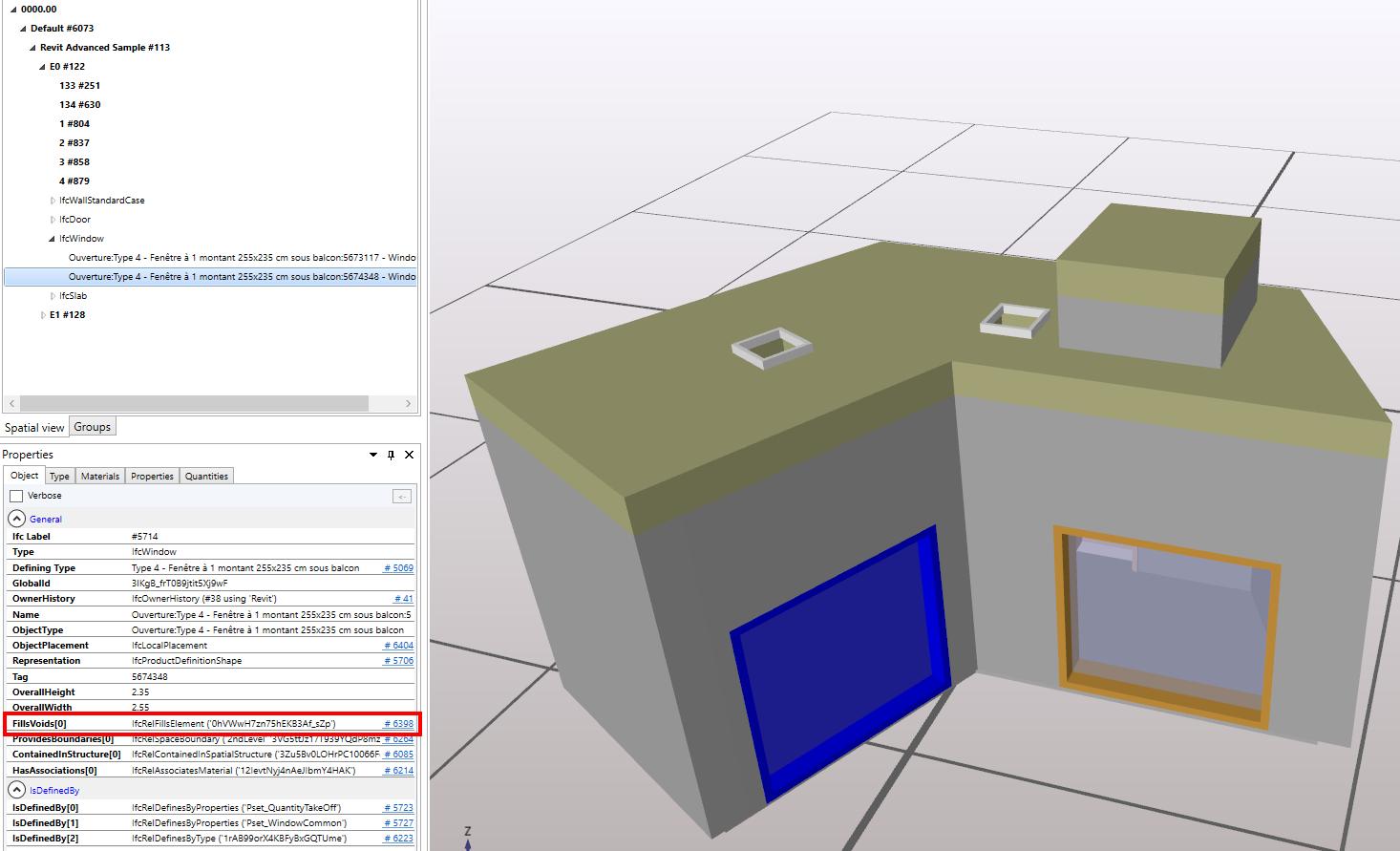

## Window FillsVoids
Best regards.
