LogBrowser: PIDS fields are all logged separately (because units are unknown?)
- Dominant language
- C#
- Stars
- 2.4k
- Forks
- 2.9k
- Avg merge
- 19h 16m
- Merged PRs (30d)
- 4
Description

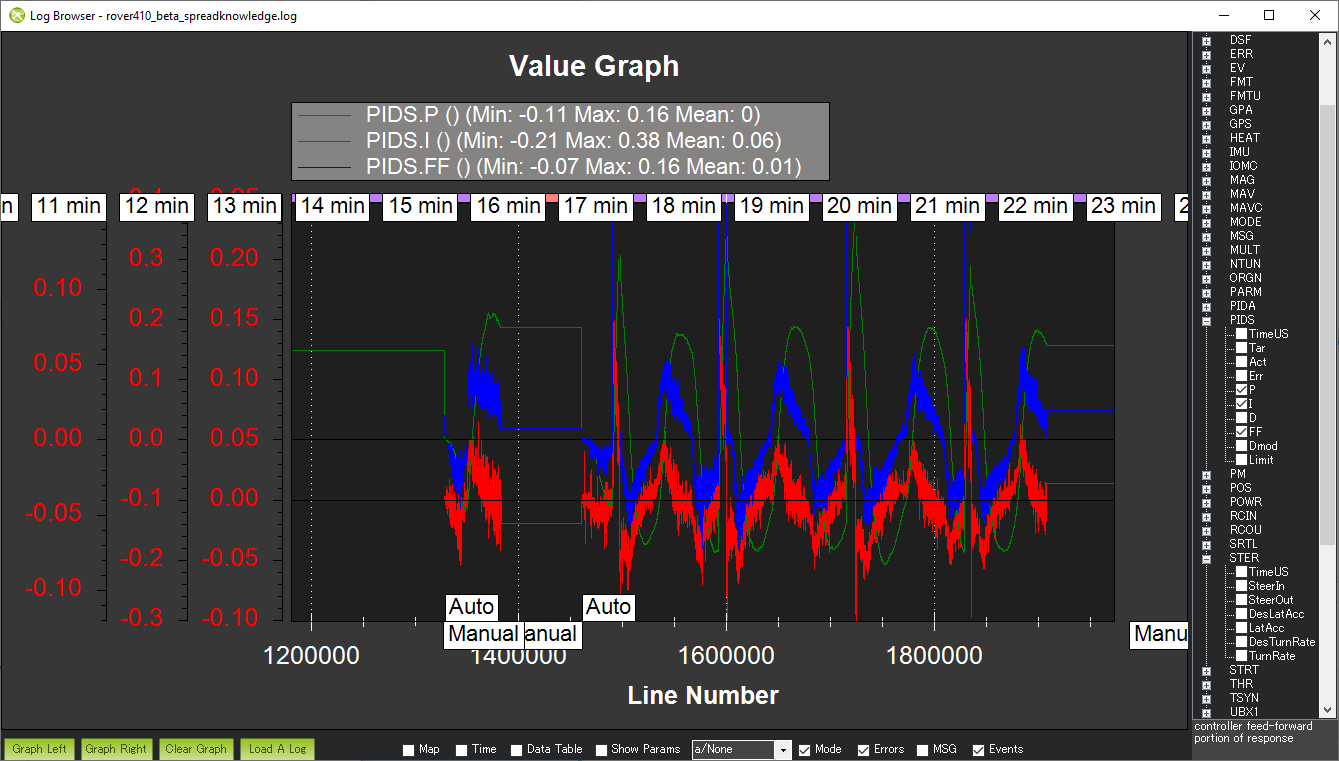

Graphing the PIDS message is slightly difficult because each field appears with a difference scale.
The units for all fields are marked as unknown ([see code here](https://github.com/ArduPilot/ardupilot/blob/master/libraries/AP_Logger/LogStructure.h#L852)) so I think MP is assuming that all "unknowns" are different but I think we should assume they are all the same especially if they are all in the same message.
Contributor guide
No contributing guide indexed for this repository
Research direction
Start by tracing how Mission Planner's LogBrowser assigns units and scales to PIDS fields, then compare that behavior with the linked AP_Logger/LogStructure.h definition around line 852. Confirm how fields from the same PIDS message are treated when their units are unknown. Done means the PIDS fields graph on a shared scale when appropriate, with existing log browsing behavior preserved.
