No Cycle Slips in OBS RINEX from MP

Open
#2,562 0 comments 0 reactions 0 assignees View on GitHub
Dominant language
C#
Stars
2.4k
Forks
2.9k
Avg merge
19h 16m
Merged PRs (30d)
4

Description

#### Issue details
rinex observation output file does not write the LLI bit since it is hard coded to "0"

looking at this line https://github.com/ArduPilot/MissionPlanner/blob/c1b3d075003578e2810e78321e79f8dbee2400ad/ExtLibs/Utilities/LogOutput.cs#L593

the LLI bit is permanently set to "0" but never changed. Hence when coming across a GRXS message and writing the OBS rinex file, It should look at if the LLI bit on the GRAW message changed - but it doesn't. It stays fixed at "0".

That way, even if the LLI on the GRAW is changed due to a cycle slip, the OBS output file does not reflect that.

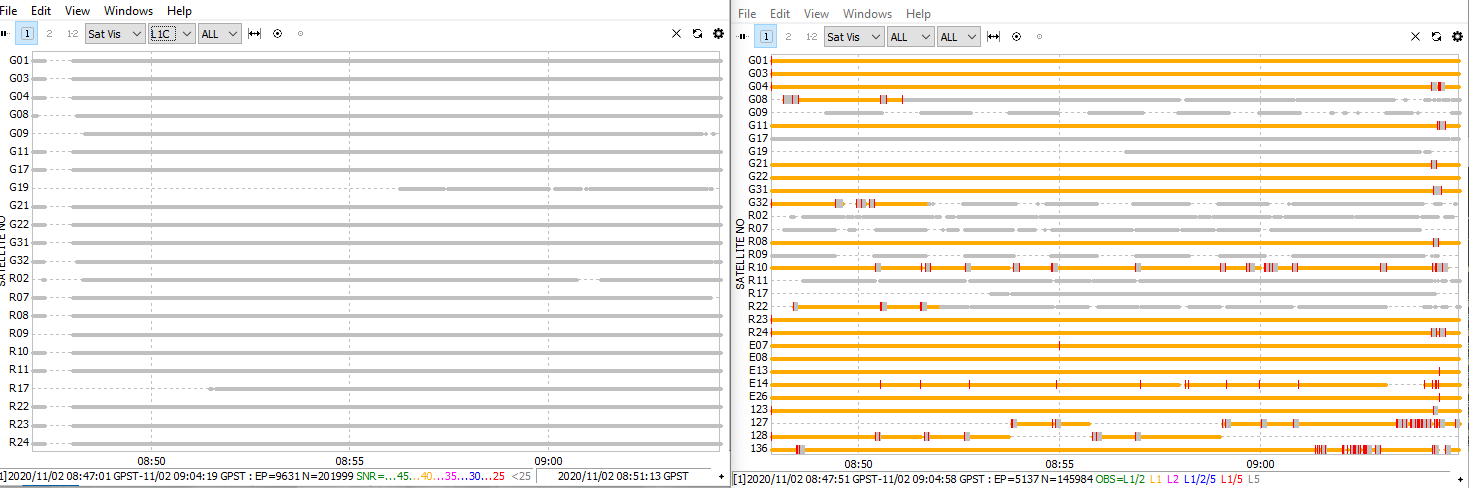

This is an example of an observation from M8P and an addition Emlid M+ that was on board alongside the main UAV M8P GPS. Although these are 2 different GPS receivers, they were both at same place and time. So assuming one saw cycle slips (red tick marks)- the other should have probably seen some as well.

![image](https://user-images.githubusercontent.com/62561076/108636187-57ab0000-748c-11eb-9648-9027f037e57c.png)

Question:
When looking at logs, I only saw GRXS messages but didn't see any GRAW messages. What is the way to get GRAW messages to be written to the log? In my case the GPS_Type parameter was set to "1", i.e. AUTO. Should it be set to "2" for uBlox in order to get GRAW messages out?

#### Version
1.3.74
#### Platform
[ ] All
[ ] AntennaTracker
[ x ] Copter
[ ] Plane
[ ] Rover
[ ] Sub

#### Airframe type
Quad

#### Hardware type
Pixhawk1

#### Logs
[test_pixhawk_log.log](https://github.com/ArduPilot/MissionPlanner/files/6018316/test_pixhawk_log.log)
[test_obs_file.obs.log](https://github.com/ArduPilot/MissionPlanner/files/6018321/test_obs_file.obs.log)
