Compass priorisation table's orientation field does not match COMPASS_ORIENT parameter

Open
#2,465 0 comments 0 reactions 0 assignees View on GitHub
bug
Dominant language
C#
Stars
2.4k
Forks
2.9k
Avg merge
19h 16m
Merged PRs (30d)
4

Description

The Compass priorisation table's orientation field does not match COMPASS_ORIENT parameter as shown below

![image](https://user-images.githubusercontent.com/1498098/93079097-8abfbb00-f6c6-11ea-8195-b4a8cc495102.png)

![image](https://user-images.githubusercontent.com/1498098/93079204-ba6ec300-f6c6-11ea-97d4-27f52eafd24a.png)

I've reproduced the issue by doing this on a CubeBlack using Copter-4.1.0-dev

- Connect with MP
- Open the Setup >> Mandadtory Hardware >> Compass screen and check the top compass's orientation field (it may always be None)

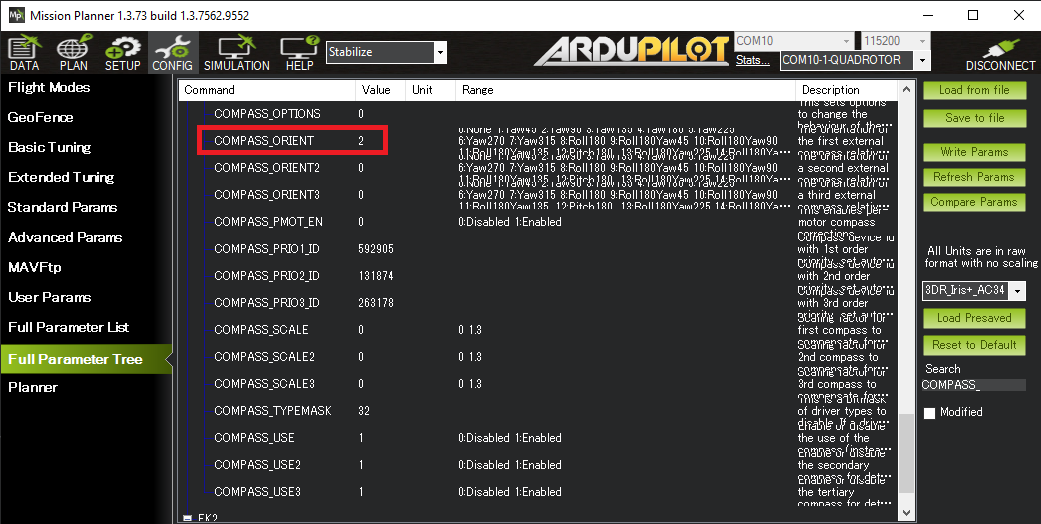

- Go to the Config >> Full Parameter Tree screen and change COMPASS_ORIENT = 2 (Yaw90)
- Go back and check MP's Compass prioritisation screen and note the Orientation is still "None"
- Reboot the autopilot, restart MP, reconnect and check the Compass priorisation screen and note that even after a reboot the top compass's orientation is still "None".

This issue was reported by David Artis [here in the Copter-4.0.4-rc4 testing thread](https://discuss.ardupilot.org/t/copter-4-0-4-rc4-available-for-beta-testing/60983/9).
