Field of MovingCharges continual update

オープン
#1,120 コメント 2 件 リアクション 0 件 担当者 0 名 GitHub で見る
主要言語
Python
スター
93.8k
フォーク
7.7k
PR マージ指標
PR 指標を取得中

説明

Following Todd Zimmerman's tutorial[ _Getting Started Animation with Manim and Python 3.7_](https://talkingphysics.wordpress.com/2019/01/08/getting-started-animating-with-manim-and-python-3-7/) on Chapter 10, he presents continual update for vector fields.
Everything previously worked perfectly. However continual update doesn't seem to work.
Other similar issues on the Github Issues has returned an error, however it is not my case.

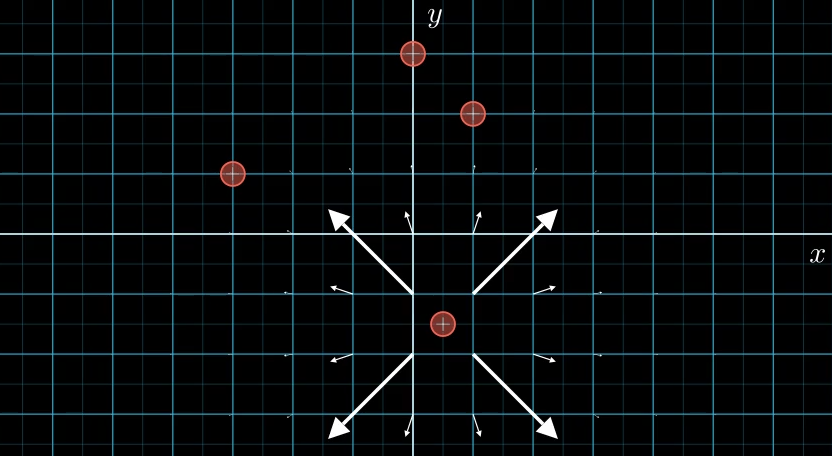

In my case, the code runs fine, but the particles aren't moving and are in the starting position. https://youtu.be/ZbDjQbl5mzg It seems like some other users have had the same issues in this video's comments.
![image](https://user-images.githubusercontent.com/10787214/83448490-534c3c00-a452-11ea-91c2-7dcabfd498ce.png)

I am on Windows and using Python 3.8.3.

The code is the exact same from the tutorial (with the import in-front):

```
[class MovingCharges(Scene):
CONFIG = {
"plane_kwargs" : {
"color" : RED_B
},
"point_charge_loc" : 0.5*RIGHT-1.5*UP,
}
def construct(self):
plane = NumberPlane(**self.plane_kwargs)
plane.add(plane.get_axis_labels())
self.add(plane)
```

field = VGroup(*[self.calc_field(x*RIGHT+y*UP)
for x in np.arange(-9,9,1)
for y in np.arange(-5,5,1)
])
self.field=field
source_charge = self.Positron().move_to(self.point_charge_loc)
self.play(FadeIn(source_charge))
self.play(ShowCreation(field))
self.moving_charge()

def calc_field(self,point):
x,y = point[:2]
Rx,Ry = self.point_charge_loc[:2]
r = math.sqrt((x-Rx)**2 + (y-Ry)**2)
efield = (point - self.point_charge_loc)/r**3
return Vector(efield).shift(point)

def moving_charge(self):
numb_charges=4
possible_points = [v.get_start() for v in self.field]
points = random.sample(possible_points, numb_charges)
particles = VGroup(*[
self.Positron().move_to(point)
for point in points
])
for particle in particles:
particle.velocity = np.array((0,0,0))

self.play(FadeIn(particles))
self.moving_particles = particles
self.add_foreground_mobjects(self.moving_particles )
self.always_continually_update = True
self.wait(10)

def field_at_point(self,point):
x,y = point[:2]
Rx,Ry = self.point_charge_loc[:2]
r = math.sqrt((x-Rx)**2 + (y-Ry)**2)
efield = (point - self.point_charge_loc)/r**3
return efield

def continual_update(self, *args, **kwargs):
if hasattr(self, "moving_particles"):
dt = self.frame_duration
for p in self.moving_particles:
accel = self.field_at_point(p.get_center())
p.velocity = p.velocity + accel*dt
p.shift(p.velocity*dt)

class Positron(Circle):
CONFIG = {
"radius" : 0.2,
"stroke_width" : 3,
"color" : RED,
"fill_color" : RED,
"fill_opacity" : 0.5,
}
def __init__(self, **kwargs):
Circle.__init__(self, **kwargs)
plus = TexMobject("+")
plus.scale(0.7)
plus.move_to(self)
self.add(plus)
](url)
